Zotac IONITX-U series User Manual

16
Intel
®
NM10-ITX series Motherboard

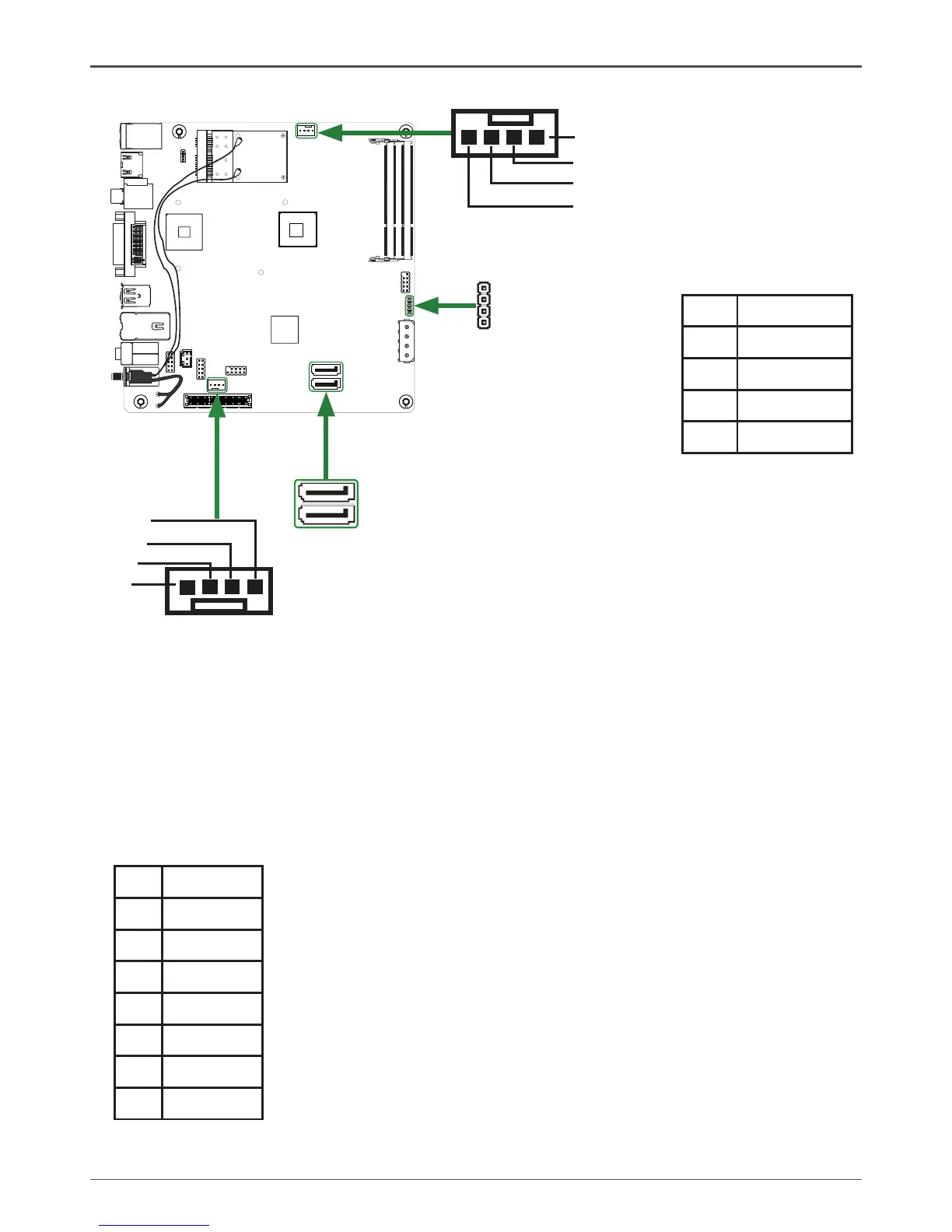

Speaker Header-SPK
Serial-ATA (SATA) Connectors (SATA-1~2)
The Serial ATA connector is used to connect the Serial ATA device to the motherboard. These
connectors support the thin Serial ATA cables for primary storage devices. The current Serial ATA
interface allows up to 300 MB/s data transfer rate. There are two serial ATA connectors on the
motherboard that support AHCI conguration.
SPK-Pin Denition
PIN Assignment
1 VCC
2 NC
3 NC
4 SPK-
SATA-Pin Denition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Fan Connectors
There are two fan connectors on
the motherboard, including system
fan connector-SYS_FAN and CPU
fan connector-CPU_FAN.
SPK
. .
.
SATA-1
SATA-2
1
GND
+12V
Sense
Control
System FAN Connector
GND
+12V
Sense
Control
CPU FAN Connector

Zotac IONITX-U series Specifications

General

Brand	Zotac
Model	IONITX-U series
Category	Motherboard
Language	English
