Zotac IONITX-U series User Manual

17

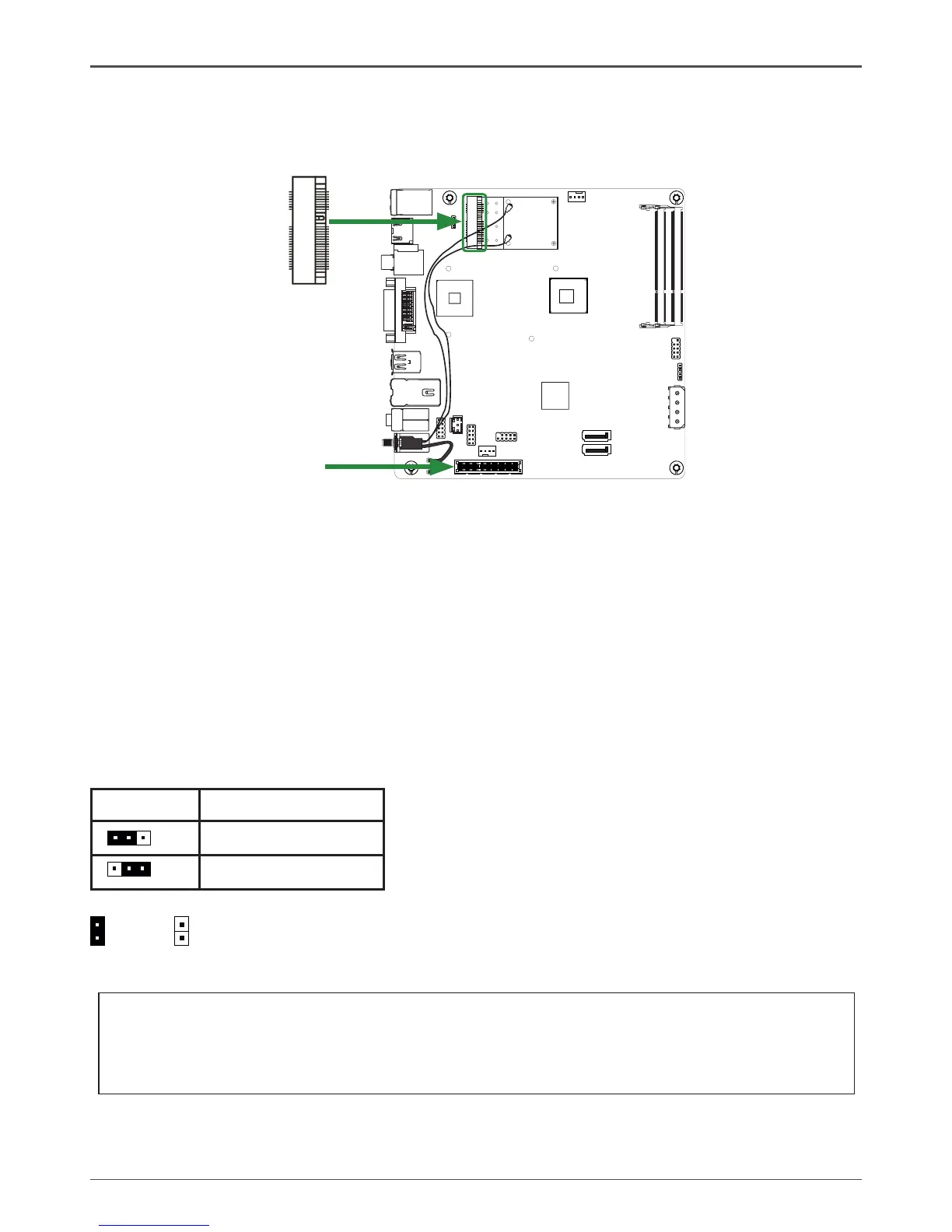

Expansion slots
The motherboard contains two expansion slots, including one Mini PCIe slot and one PCIe x4
slot.
Hardware Installation
Jumper Settings
This chapter explains how to congure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this section
whenever in doubt.
CMOS Clear Jumper-JP1
Close Open * = Default setting.
If you want to clear the system conguration, use the JP1 (Clear CMOS Jumper) to clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen even if the
frequency multiplier setting in CMOS setup is changed.
JP1 Selection
1-2* Normal*
2-3 CMOS Clear
1
1
. .
.
1
51
2
52
Mini_PCIEX1
PCIE1
Mini PCI Express Slot-Mini_PCIEX1
There is one Mini PCI Express slot, reserved for the WiFi Module.
PCI Express x4 Slot-PCIE1
There is one PCI Express x4 slot providing single lane signal, which accommodates less band-
width intensive devices, such as LAN card, sound card, etc.
