Hardware Installation

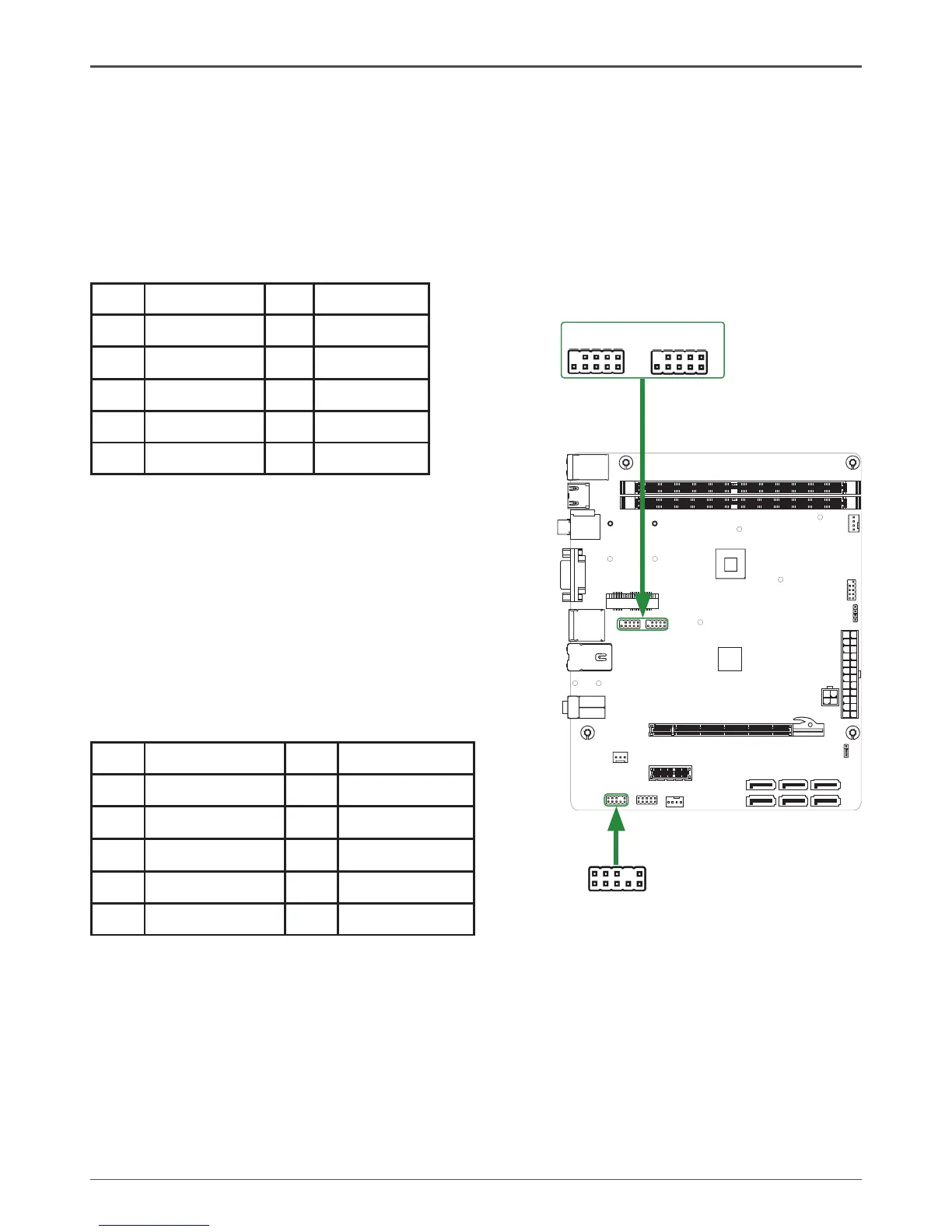

USB Headers-FP_U1~FP_U2
This motherboard contains six USB 2.0 ports that are exposed on the rear panel of the chassis.
The motherboard also contains two 10-pin internal headers onboard.
Note: Secure the bracket to either the front or rear panel of your chassis (not all chassis
are equipped with the front panel option).
120
240
121
120
240
121
Front Panel Audio Header-FP_S1
The audio connector supports HD audio standard and
provides two kinds of audio output choices: the Front
Audio, the Rear Audio. The front Audio supports re-task-
ing function.
Note:
In order to utilize the front audio header, your chassis must have front audio connector.
Also please make sure the pin assignment on the cable is the same as the pin
assignment on the mainboard header. To nd out if the chassis you are buying supports
a front audio connector, please contract your dealer.
FP_S1-Pin Denition
PIN Assignment PIN Assignment
1 MIC2(L) 2 GND
3 MIC(R) 4 -ACZ-DET
5 Front Audio(R) 6 Reserved
7 FAVDIO-JD 8 Key(No pin)
9 Front Audio(L) 10 Reserved
FP_U1~FP_U2-Pin Denition
PIN Assignment PIN Assignment
1 VCC 2 VCC
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
9 KEY 10 NC
1
FP_S1
1
FP_U1
1
FP_U2
