Zotac NM10-DTX WiFi User Manual

17

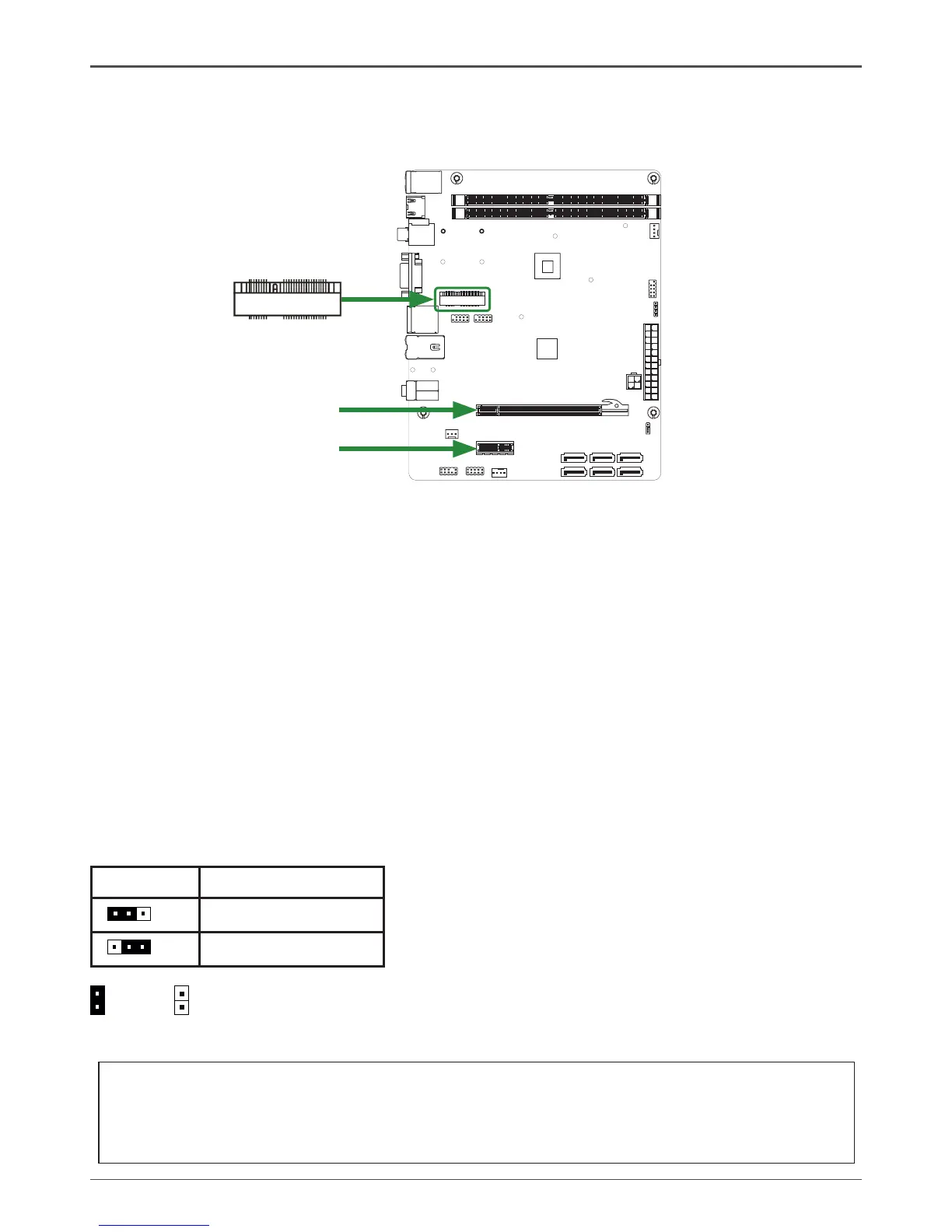

Mini PCIE Slot-Mini_PCIEX1
There is one Mini PCIE slot, reserved for the WiFi Module.
PCIE x16 Slot-PCIE2
There is one PCIE x16 slot reserved for graphics or video cards that is fully compliant to PCIE
1.0a specication. (The actual bandwidth of PCIE x16 slot only corresponds to PCIE X1 lane)
PCIE x1 Slot-PCIEX1
There is one PCI Express x1 slot that is designed to accommodate less bandwidth intensive
cards, such as a modem or LAN card.
120
240
121
120
240
121
Hardware Installation
Jumper Settings
This chapter explains how to congure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this section
whenever in doubt.
CMOS Clear Jumper-JP1
Close Open * = Default setting.
If you want to clear the system conguration, use the JP1 (Clear CMOS Jumper) to clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen even if the
frequency multiplier setting in CMOS setup is changed.
JP1 Selection
1-2* Normal*
2-3 CMOS Clear
1
1
1 51
2 52
Mini_PCIEX1
PCIE2
Expansion Slots
The motherboard contains three expansion slots, one Mini PCIE slot, one PCIE x16 slot and
one PCIE x1 slot.
PCIEX1

Zotac NM10-DTX WiFi Specifications

General

Brand	Zotac
Model	NM10-DTX WiFi
Category	Motherboard
Language	English
