41
Installing Drivers and Software
Speaker Conguration

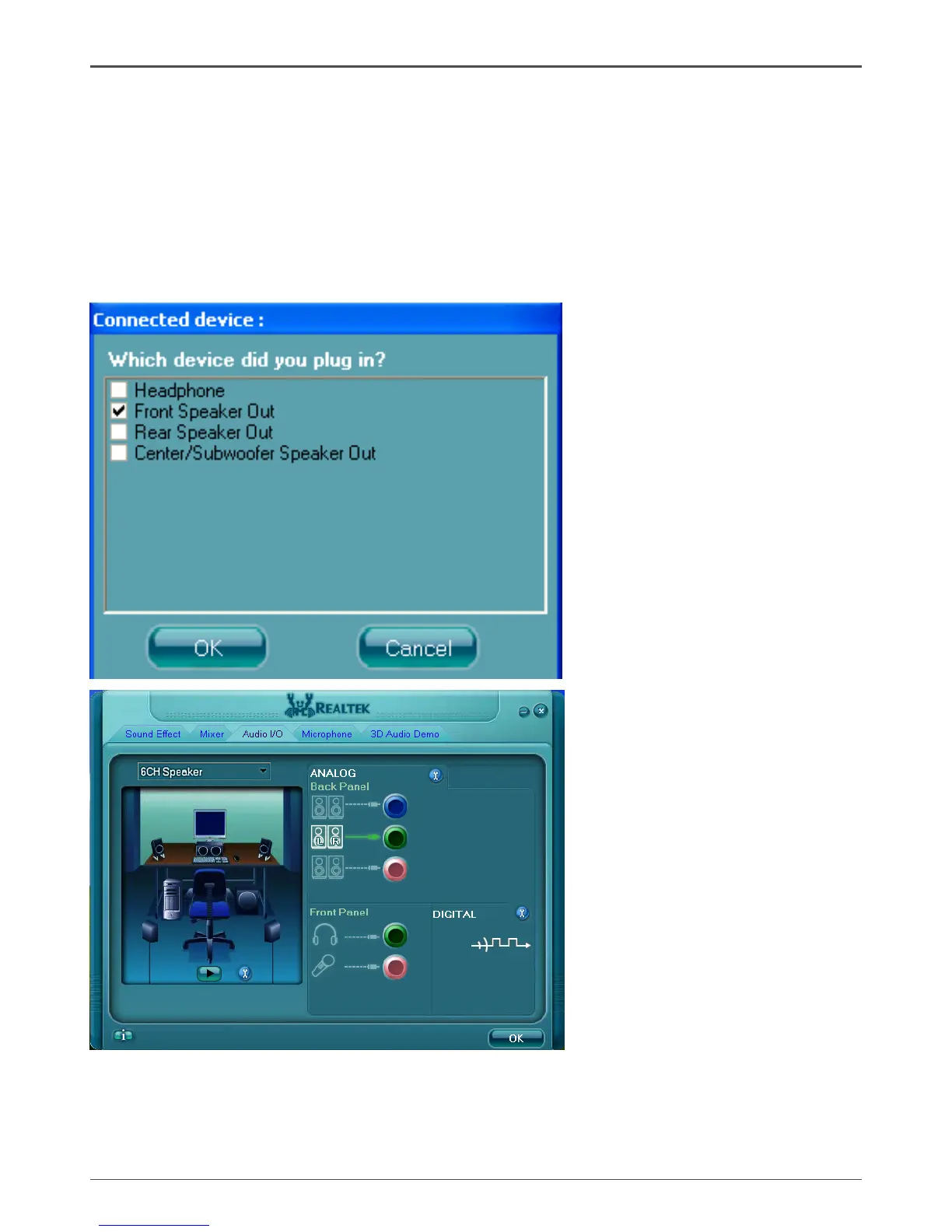

Step 1:
Plug in the device in any available jack.
Step 2:
Dialogue “connected device” will pop up for your selection. Please select the
device you are trying to plug in.
*
If the device is being plugged into the correct jack, you will be able to nd the
icon beside the jack changed to the one that is same as your device.
*
If not correct, Realtek HD
Audio Manager will guide you to plug the device into
the correct jack.
41
