Zotac NM10-DTX WiFi User Manual

7

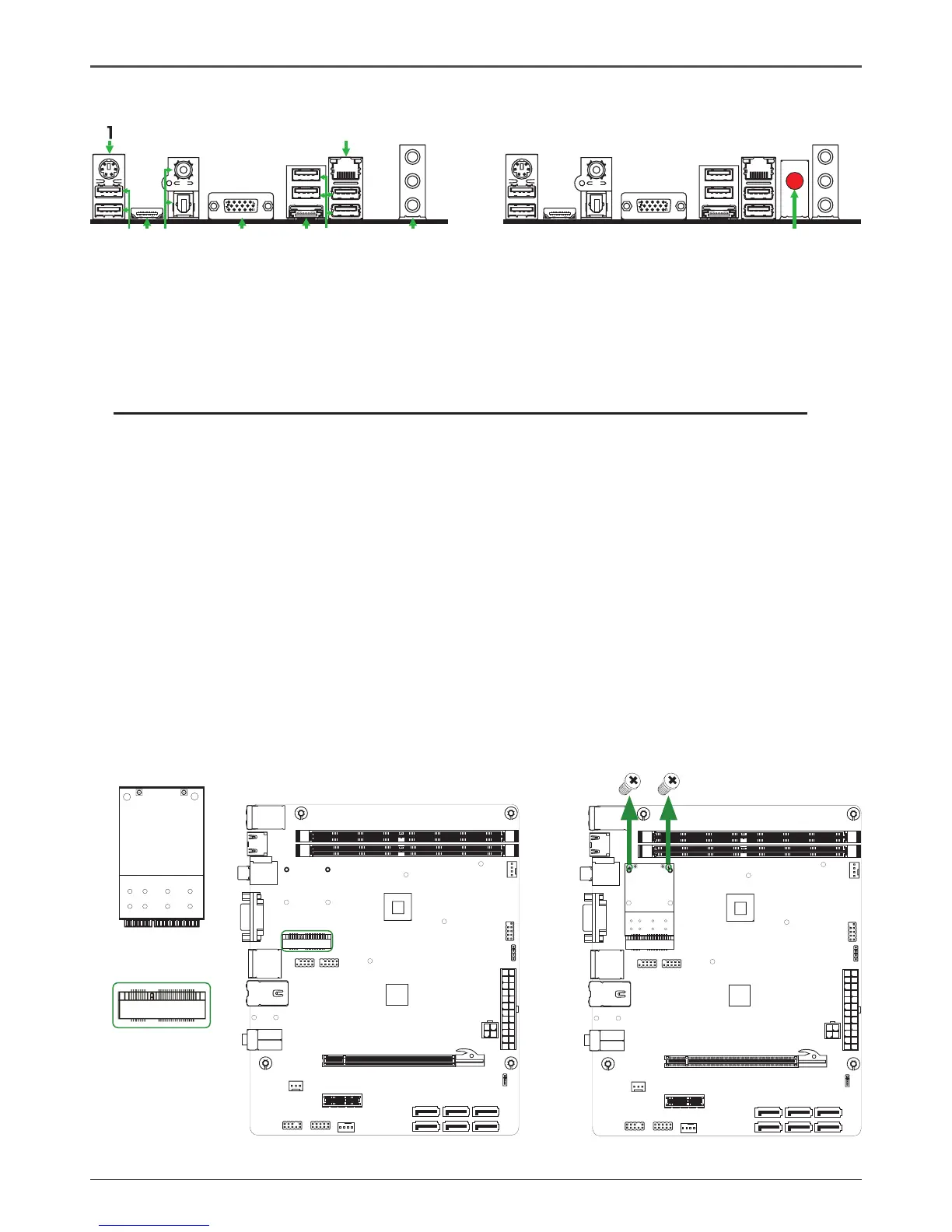

Rear panel
1. PS/2 Keyboard Port
3. HDMI Port (Optional)
5. VGA Port
2. USB Connectors
4. SPDIF Connectors
6. eSATA Port
6
11
5
10
15
2
3
4
5
8
7
2
6
Figure 2
6
11
5
10
15
9
8. LAN Connector
Lan Port with LEDs to indicate status.
· Yellow/Light Up/Blink = 10 Mbps/Link/Activity
· Yellow and Green/Light Up/Blink = 100 Mbps/link/Activity
· Yellow and Orange/Light Up/Blink = 1000 Mbps/link/Activity
7. Port 2-Channel 4-Channel 6-Channel
Blue Line-In Rear Speaker Out Rear Speaker Out
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/Subwoofer
9. WiFi antenna connector (Optional)
Refer to the following to install the WiFi antenna modules.
Step 1. Secure the MINI PCIE card into the Mini_PCIEX1 slot with screws.
120
240
121
120
240
121

Mini_PCIEX1
slot
MINI PCIE card
120
240
121
120
240
121
Screws
