ZOTAC ZBOX nano
Customizing the ZOTAC ZBOX nano
Before installing hardware, please follow the instructions below to remove the cover
of your ZOTAC ZBOX.

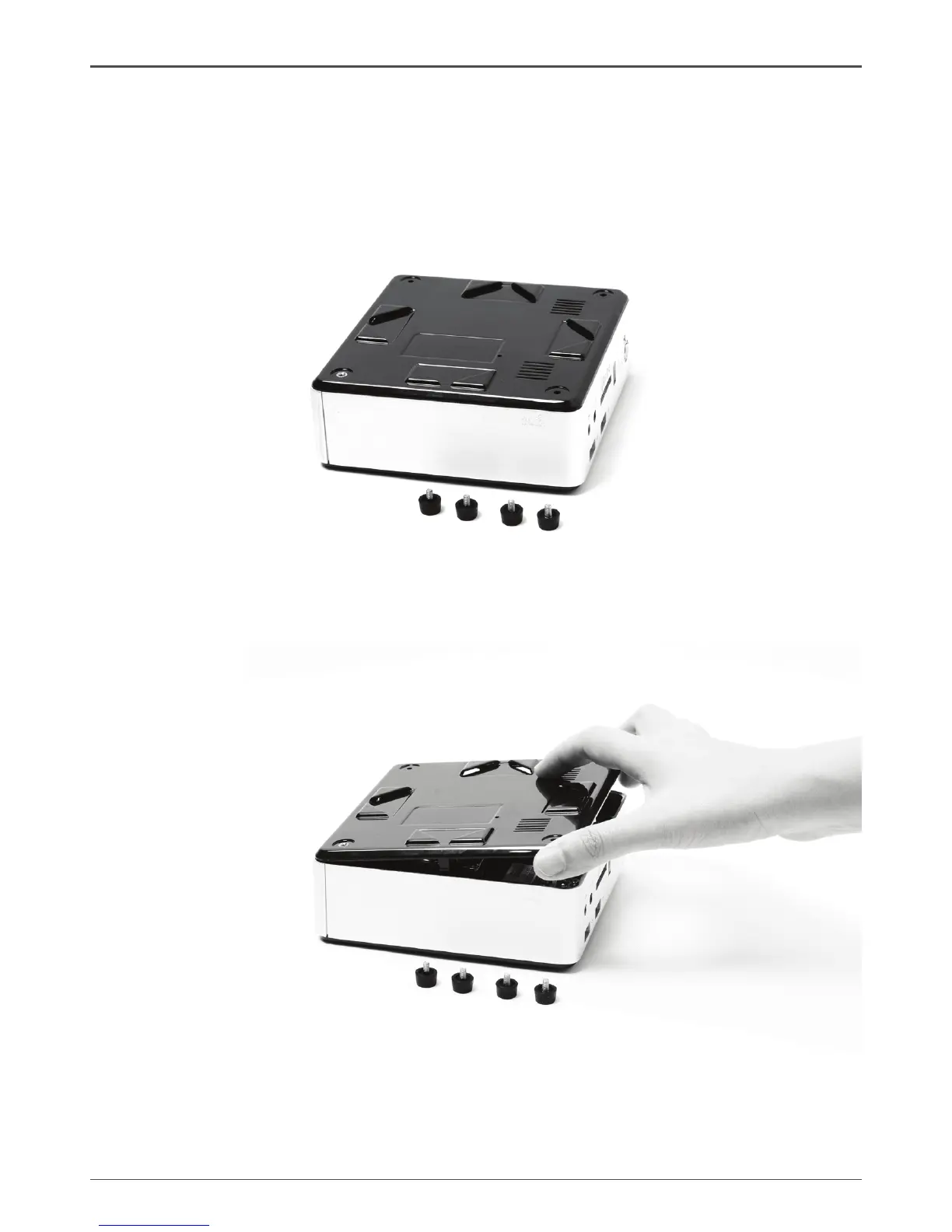

1. Remove the four screws securing the bottom cover into place.
2. Locate side with engraving that says “Pull Upward.” Pull upward on the cover
as shown below
