ZOTAC ZBOX nano
Getting to know your ZOTAC ZBOX nano

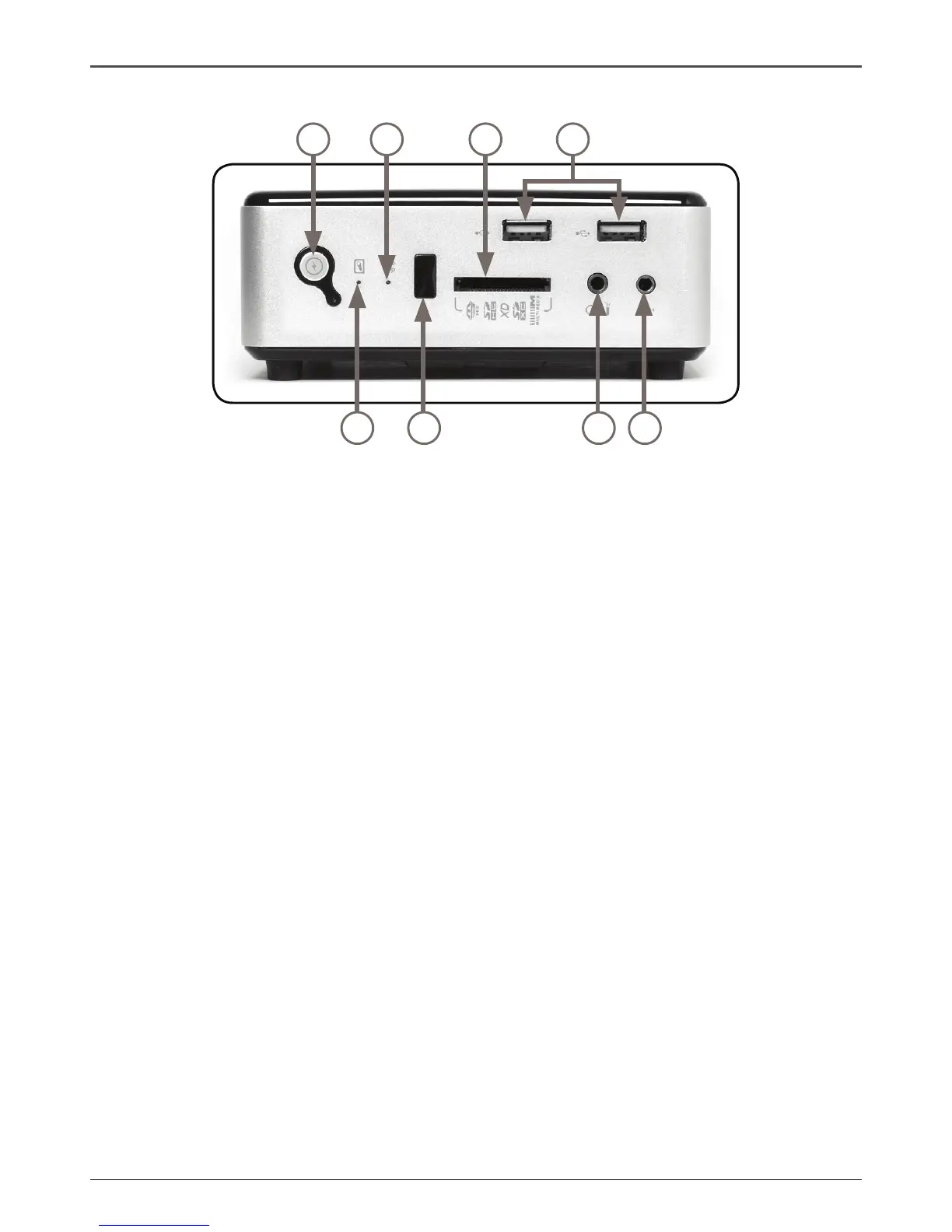

Front view
Refer to the diagram below to identify the components on this side of the system
1. Power switch
The power switch turns the mini-PC ON and OFF.
2. HDD status indicator
The hard disk LED blinks when data is being written onto or read from the hard
disk drive
3. WiFi status indicator
The WiFi LED blinks when data is being transfered over WiFi.
4. IR receiver
The IR receiver is used to receive signals from the IR remote control (not included).
Note: Please install CIR driver from DVD before using the integrated IR receiver.
5. Memory card slot
The built-in memory card reader reads and writes MMC/SD/SDHC/MS/MS Pro/
xD/SDXC cards used in devices such as digital cameras, MP3 players, mobile
phones and PDAs.
6. Headphone / mini-Optical S/PDIF jack
The headphone / mini-Optical SPDIF jack (3.5mm) is used to connect the
system’s audio output to amplied speakers or headphones. It supports mini-
Optical S/PDIF output with the included mini-Optical S/PDIF adapter. The optical
S/PDIF output enables connectivity with digital audio receivers and speakers for
crystal clear digital audio and surround sound from compatible soundtracks.
7. USB 2.0 ports
The USB (Universal Serial Bus) ports are compatible with USB devices such as
keyboards, mice, cameras and hard disk drives.
8. Microphone jack
The microphone jack is designed to connect a microphone for video conferencing,
voice narrations or simple audio recordings.
Note 1: The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.
Note 2: Due to the unique tool-less customizable design, some connectors are placed upside down.
1
2
3
4
5
6
7
8

Zotac ZBOX NANO Specifications

General

Tcase	- °C
Bus type	DMI2
Stepping	F0
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-5010U
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-5000 Mobile series
Processor socket	BGA 1168
Processor threads	4
Processor codename	Broadwell
Number of QPI links	-
Processor frequency	2.1 GHz
Processor cache type	L3
Configurable TDP-down	10 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	32-bit, 64-bit
PCI Express configurations	2x4, 4x1
Thermal Design Power (TDP)	15 W
Number of processors installed	1
Configurable TDP-down frequency	0.6 GHz
Maximum number of PCI Express lanes	12
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory voltage supported by processor	- V
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	16 GB
On-board graphics card ID	0x1616
On-board graphics card model	Intel® HD Graphics 5500
Graphics card Open GL support	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card OpenGL version	4.3
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	11.2
On-board graphics card dynamic frequency (max)	900 MHz
Number of displays supported (on-board graphics)	3
Processor code	SR23Z
Processor ARK ID	84697
Processor package size	40 x 24x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel® Turbo Boost Technology	No
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory channels	Dual-channel
Internal memory type	DDR3L-SDRAM
HDD size	2.5 \
HDD interface	SATA III
Storage media	HDD
Total storage capacity	500 GB
Compatible memory cards	SD, SDHC, SDXC
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Volume	1 L
Chassis type	Mini PC
Product color	Black
Placement supported	Horizontal/Vertical
Power supply	65 W

Weight and Dimensions

Width	127 mm
Height	45 mm
Weight	- g
