Zotac ZBOX NANO User Manual

1

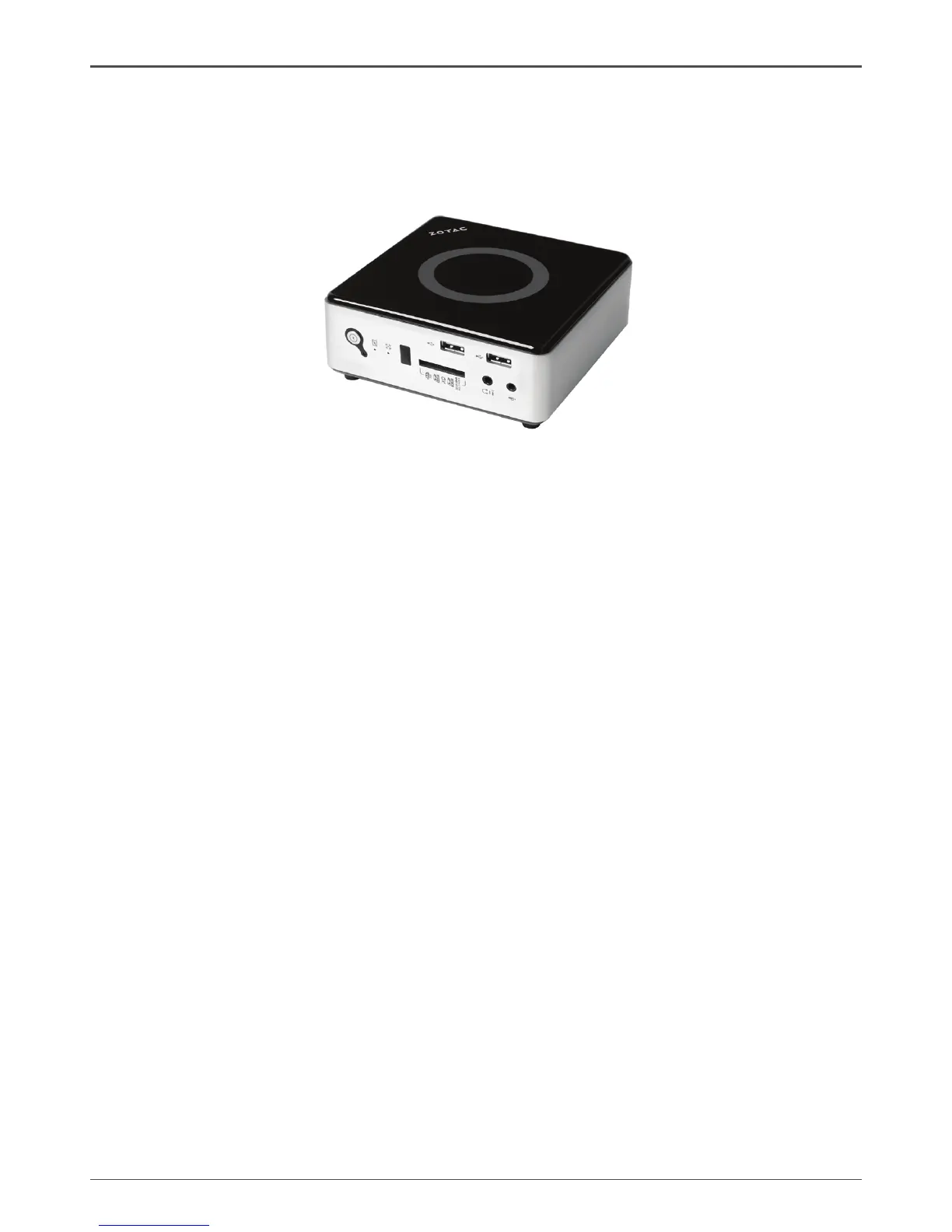

ZOTAC ZBOX nano
ZOTAC ZBOX nano
User’s Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ZOTAC.
Products and corporate names mentioned in this manual may not be
registered trademarks or copyrights of their respective companies, and are
used for identication purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are
correct and up to date. However, the manufacturer makes no guarantee
regarding the accuracy of its contents, and reserves the right to make
changes without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.

Zotac ZBOX NANO Specifications

General

Tcase	- °C
Bus type	DMI2
Stepping	F0
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-5010U
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-5000 Mobile series
Processor socket	BGA 1168
Processor threads	4
Processor codename	Broadwell
Number of QPI links	-
Processor frequency	2.1 GHz
Processor cache type	L3
Configurable TDP-down	10 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	32-bit, 64-bit
PCI Express configurations	2x4, 4x1
Thermal Design Power (TDP)	15 W
Number of processors installed	1
Configurable TDP-down frequency	0.6 GHz
Maximum number of PCI Express lanes	12
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory voltage supported by processor	- V
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	16 GB
On-board graphics card ID	0x1616
On-board graphics card model	Intel® HD Graphics 5500
Graphics card Open GL support	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card OpenGL version	4.3
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	11.2
On-board graphics card dynamic frequency (max)	900 MHz
Number of displays supported (on-board graphics)	3
Processor code	SR23Z
Processor ARK ID	84697
Processor package size	40 x 24x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel® Turbo Boost Technology	No
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory channels	Dual-channel
Internal memory type	DDR3L-SDRAM
HDD size	2.5 \
HDD interface	SATA III
Storage media	HDD
Total storage capacity	500 GB
Compatible memory cards	SD, SDHC, SDXC
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Volume	1 L
Chassis type	Mini PC
Product color	Black
Placement supported	Horizontal/Vertical
Power supply	65 W

Weight and Dimensions

Width	127 mm
Height	45 mm
Weight	- g
