ZXR102900ESeriesCongurationGuide

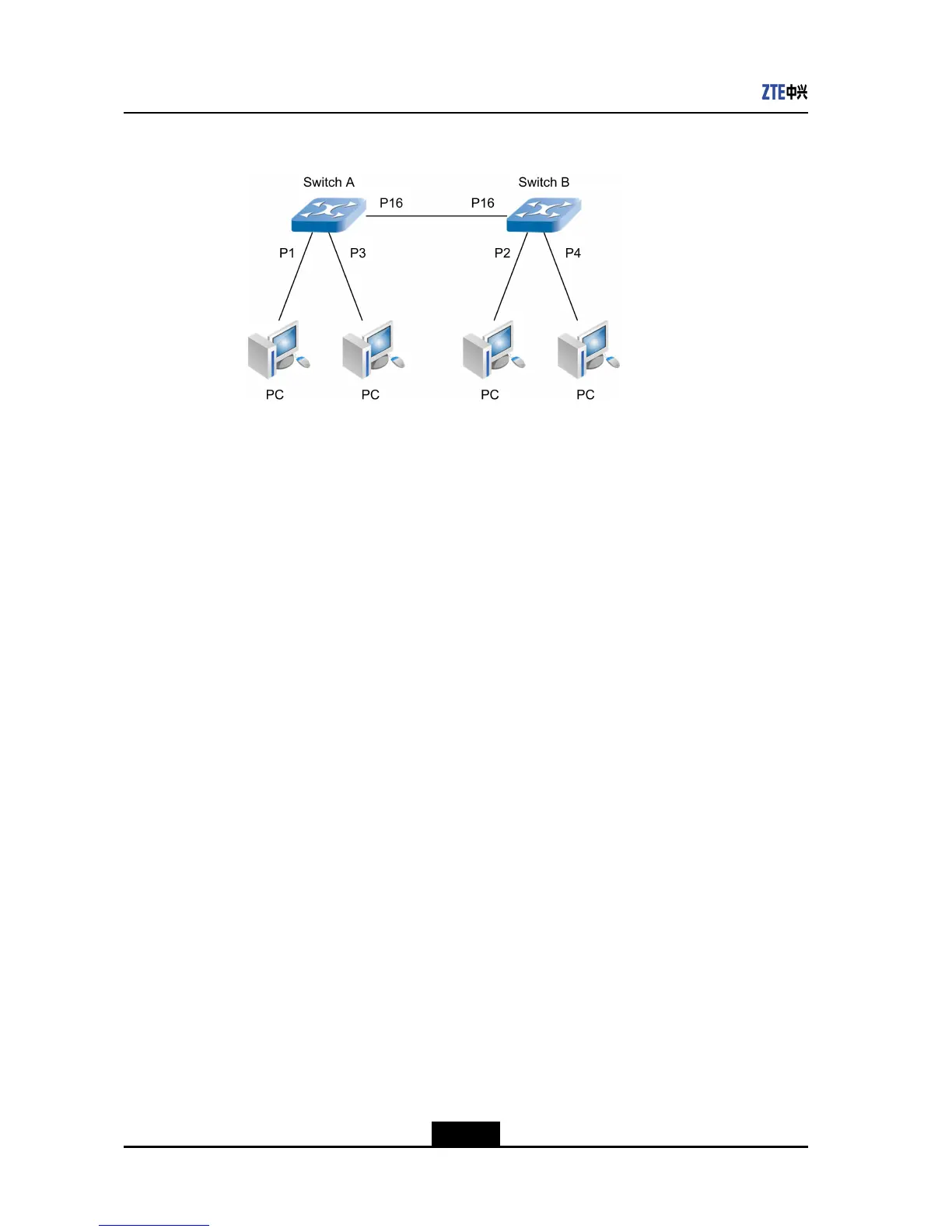

Figure4-3VLANTransparentTransmissionCongurationInstanceNetwork
Topology
lCongurationProcedure
1.CongurationofswitchA
zte(cfg)#setvlan2addport16tag
zte(cfg)#setvlan2addport1untag
zte(cfg)#setvlan3addport16tag
zte(cfg)#setvlan3addport3untag
zte(cfg)#setport1pvid2
zte(cfg)#setport3pvid3
zte(cfg)#setvlan2-3enable
2.CongurationofswitchB
zte(cfg)#setvlan2addport16tag
zte(cfg)#setvlan2addport2untag
zte(cfg)#setvlan3addport16tag
zte(cfg)#setvlan3addport4untag
zte(cfg)#setport2pvid2
zte(cfg)#setport4pvid3
zte(cfg)#setvlan2-3enable
4.6MACTableOperation
MACTableOverview
MACtableoperationsmainlyincludeMACaddition/deletion,MACagingtime
conguration,MAClteringfunction,MAClearningcontrol,MAClearningnumberlimit,
MACalarmcontrol,MACxedfunctionandMACrelatedinformationdisplay.
lMACaddition/deletion:userscanmanuallyaddstaticandxedMACsanddelete
dynamic,staticandxedMACtableentrythroughcommandline.
lMACtableagingtimereferstotheperiodfromthelatestupdateofdynamicMAC
addressintheFDBtabletothedeletionofthisaddress.
4-14
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential

Zte ZXR10 2952E Specifications

General

Model	ZXR10 2952E
Category	Switch
Jumbo Frame	9K
Weight	4.5 kg
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Dimensions	440 mm x 44 mm x 300 mm
Power Supply	AC 100-240V, 50/60Hz
VLAN	4K VLAN
Operating Temperature	0°C to 45°C
