ZXR102900ESeriesCongurationGuide
IPTVCongurationExampleOne
lCongurationDescription
AsshowninFigure4-7,port1connectstotheuseranditistheorderuserofchannel
225.1.1.1.Theuservlanis100.Themulticastvlanis4000.Routersendsdatastream
ofmulticastgroup225.1.1.1.PCsendsrequestforenteringintochannel225.1.1.1.

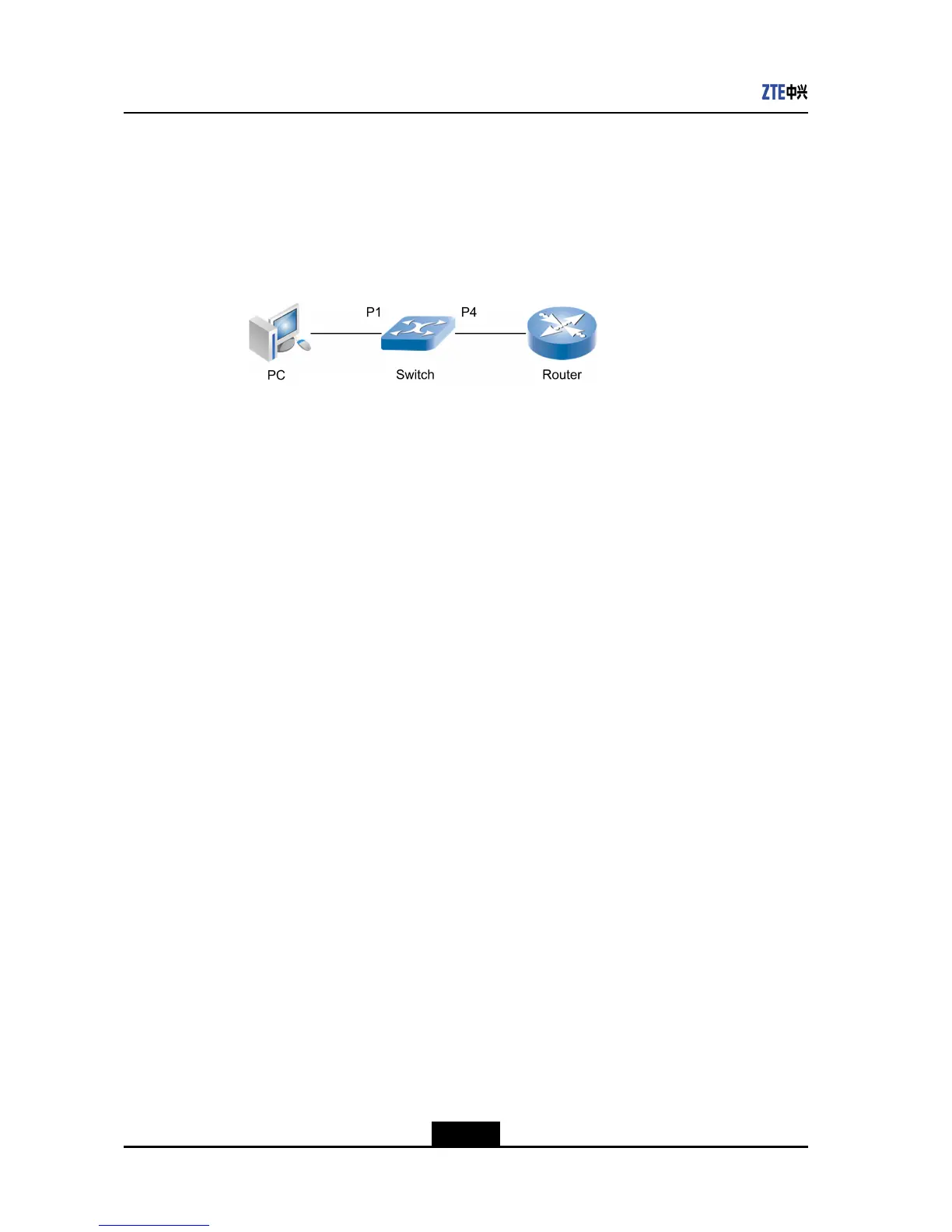

Figure4-7IPTVCongurationInstance1
lCongurationProcedure
1.CongureVLAN
zte(cfg)#setvlan100addport1
zte(cfg)#setvlan4000addport1,4
zte(cfg)#setvlan100,4000enable
zte(cfg)#setport1pvid100
zte(cfg)#setport4pvid4000
/*IGMPSnooping*/
zte(cfg)#setigmpsnoopingenable
zte(cfg)#setigmpsnoopingaddvlan100,4000
zte(cfg)#setigmpsnoopingfastleaveenable
2.CongureIPTV
zte(cfg)#confignas
zte(cfg-nas)#iptvcontrolenable
zte(cfg-nas)#iptvcac-ruleenable
3.Congurearuleontheport
zte(cfg-nas)#iptvchannelmvlan4000group225.1.1.1
nameCCTV1id1
zte(cfg-nas)#iptvport1servicestart
zte(cfg-nas)#iptvport1control-modechannel
zte(cfg-nas)#iptvport1channelid-list1order
zte(cfg-nas)#iptvport1addmvlan4000uvlan100
lCongurationVerication
Checkconguration
zte(cfg-nas)#showiptvrule
MaxRuleNum:64
CurRuleNum:1
HisRuleNum:1
IdPortVlanMbaseModeServiceCdrOrderPreviewQueryPkgNum
------------------------------------------------------------
11falsechannelindisabled1000
4-30
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential

Zte ZXR10 2952E Specifications

General

Model	ZXR10 2952E
Category	Switch
Jumbo Frame	9K
Weight	4.5 kg
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Dimensions	440 mm x 44 mm x 300 mm
Power Supply	AC 100-240V, 50/60Hz
VLAN	4K VLAN
Operating Temperature	0°C to 45°C
