4.2.2 Working Principle of Hardware System

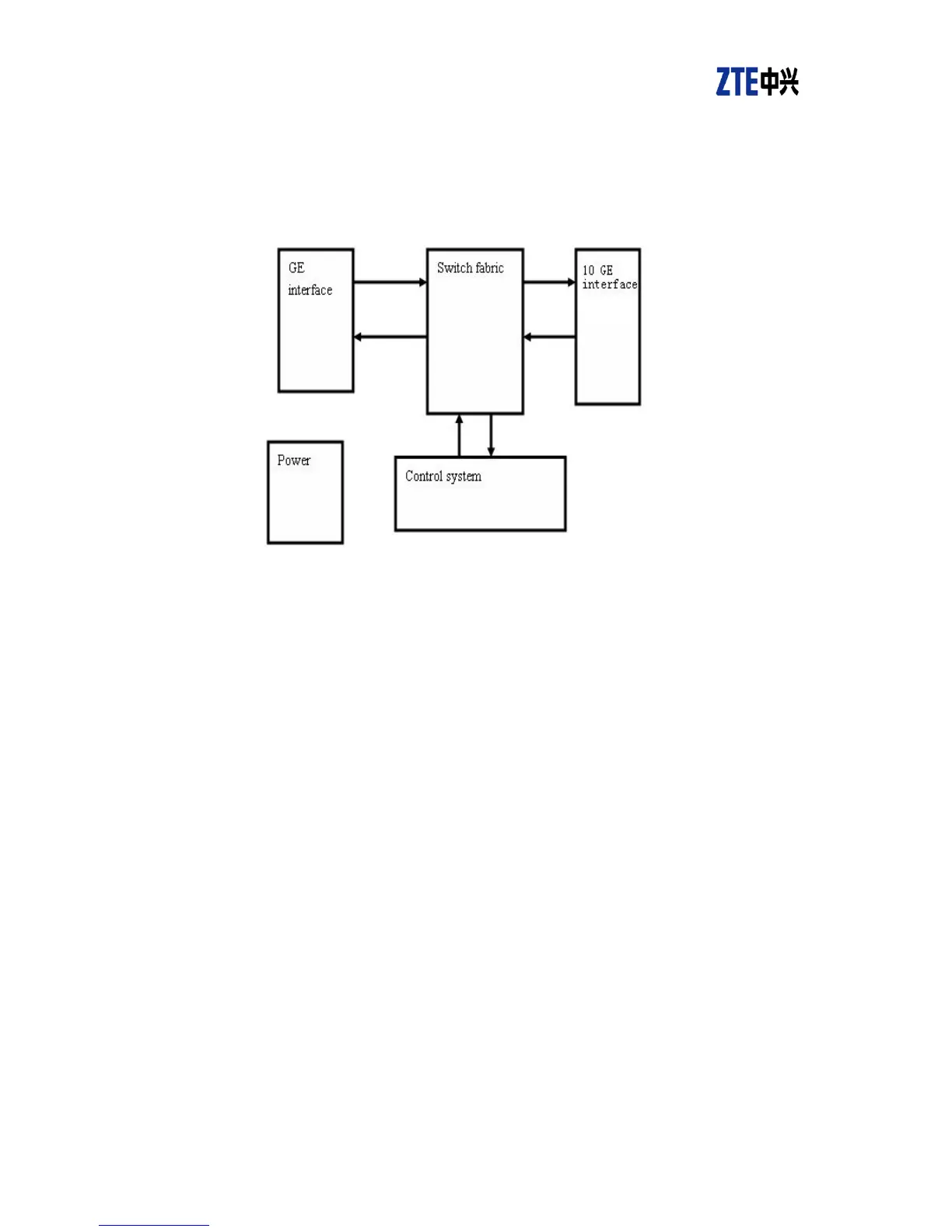

Figure 4-5 Working principle of the system
4.2.3 Introduction to Card
ZXR10 5250 system can be divided into switching control module, power supply module
and interface module based on the responsibilities they assume.
4.2.3.1 Control Card
Control card is the core component of ZXR10 5250. It mainly implements two functions of
control module and switch module.
In ZXR10 5250 system, control switch card is installed in the cassette structure with no
independent panel. Its related interface and indicator are on the front panel of the system.
The principle is shown in the following diagram:
