Chapter 5 Web Interface Tutorials

AX/DX/EX/PX Series User’s Guide

129

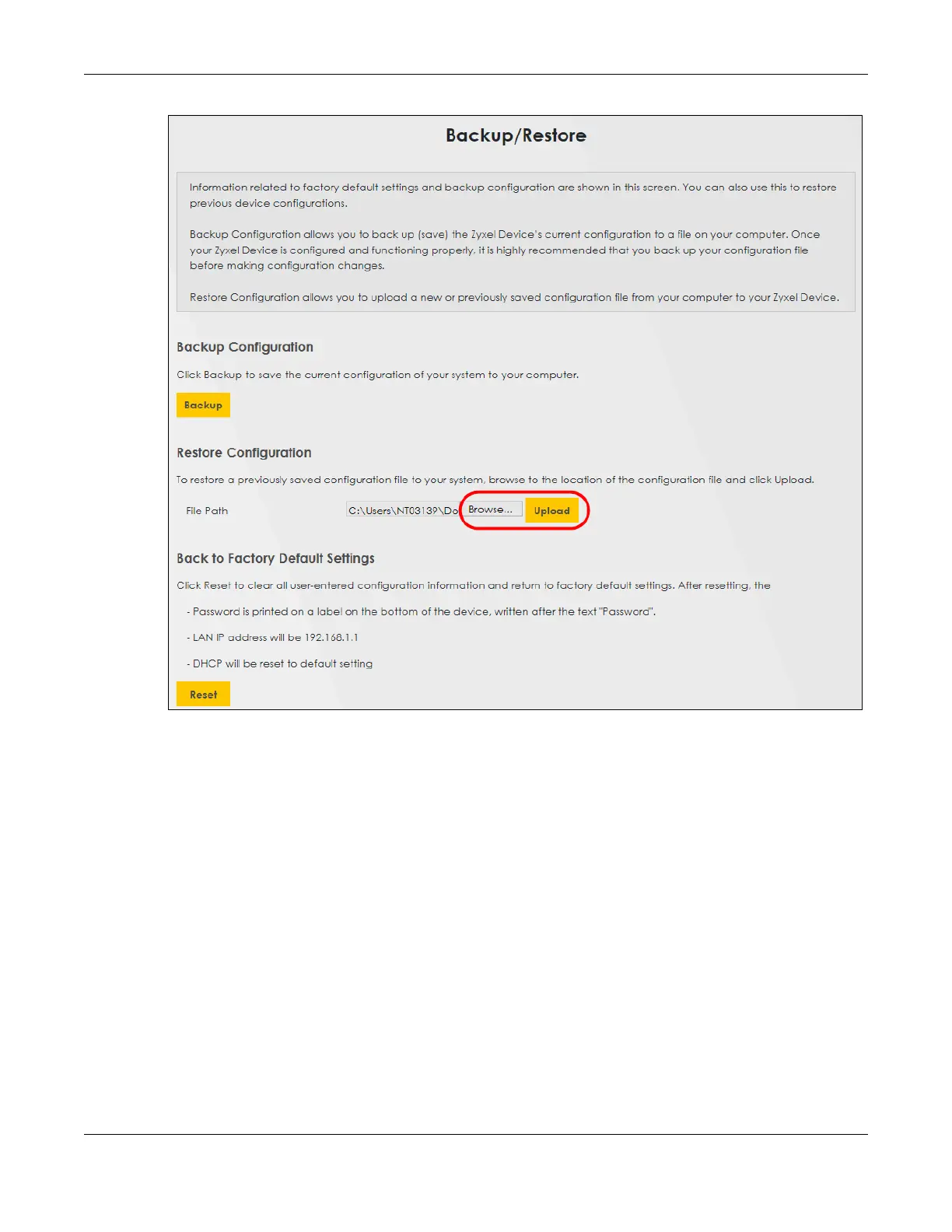

3 The Zyxel Device automatically restarts after the configuration file is successfully uploaded. Wait for one

minute before logging into the Zyxel Device again. Go to the Connection Status page to check the

firmware version after the reboot.
