Chapter 10 Home Networking

AX/DX/EX/PX Series User’s Guide

296

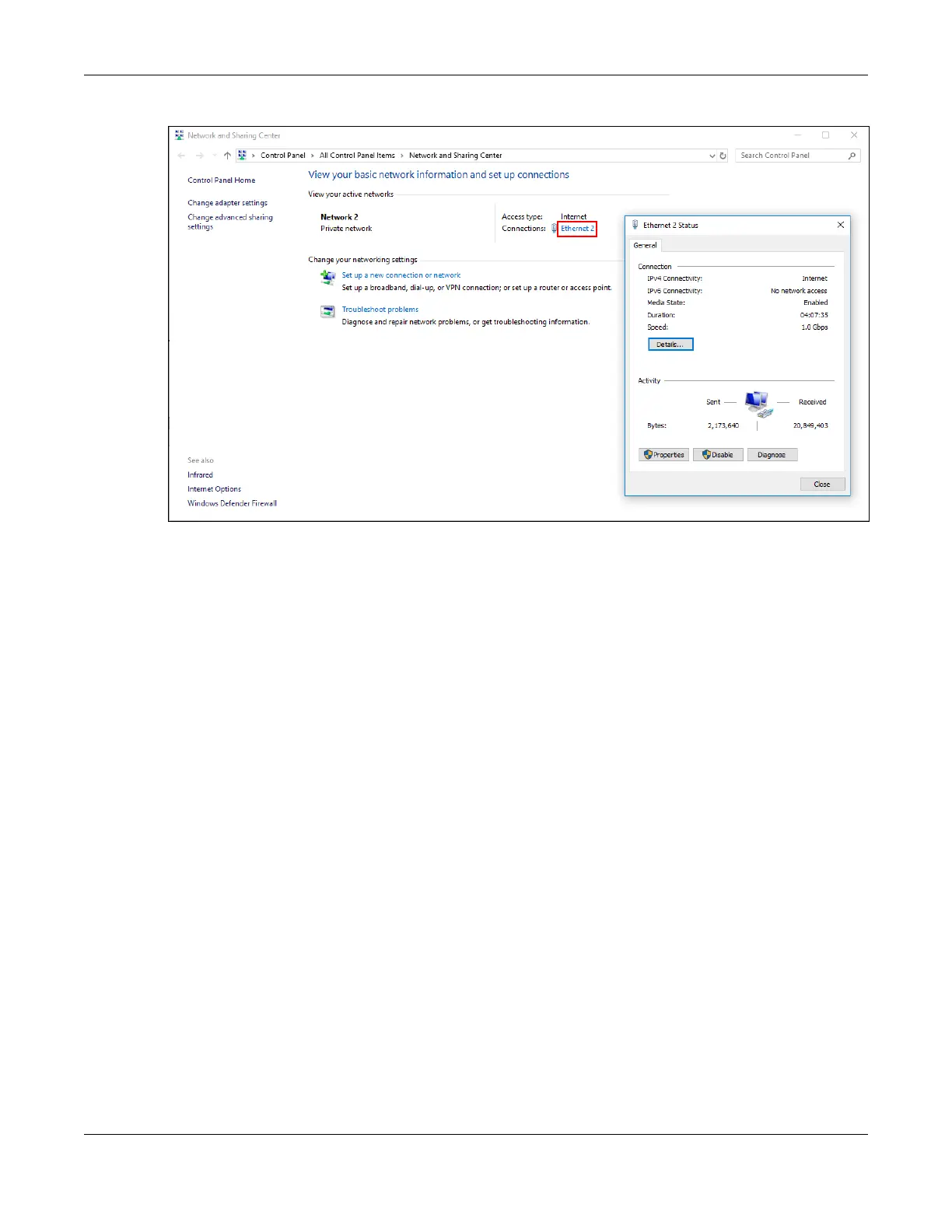

Figure 142 Internet Connection Status

10.12 Web Configurator Access with UPNP in Windows 10

Follow the steps below to access the Web Configurator.

1 Open File Explorer.

2 Click Network.
