Chapter 13 Network Address Translation (NAT)
AX/DX/EX/PX Series User’s Guide
348

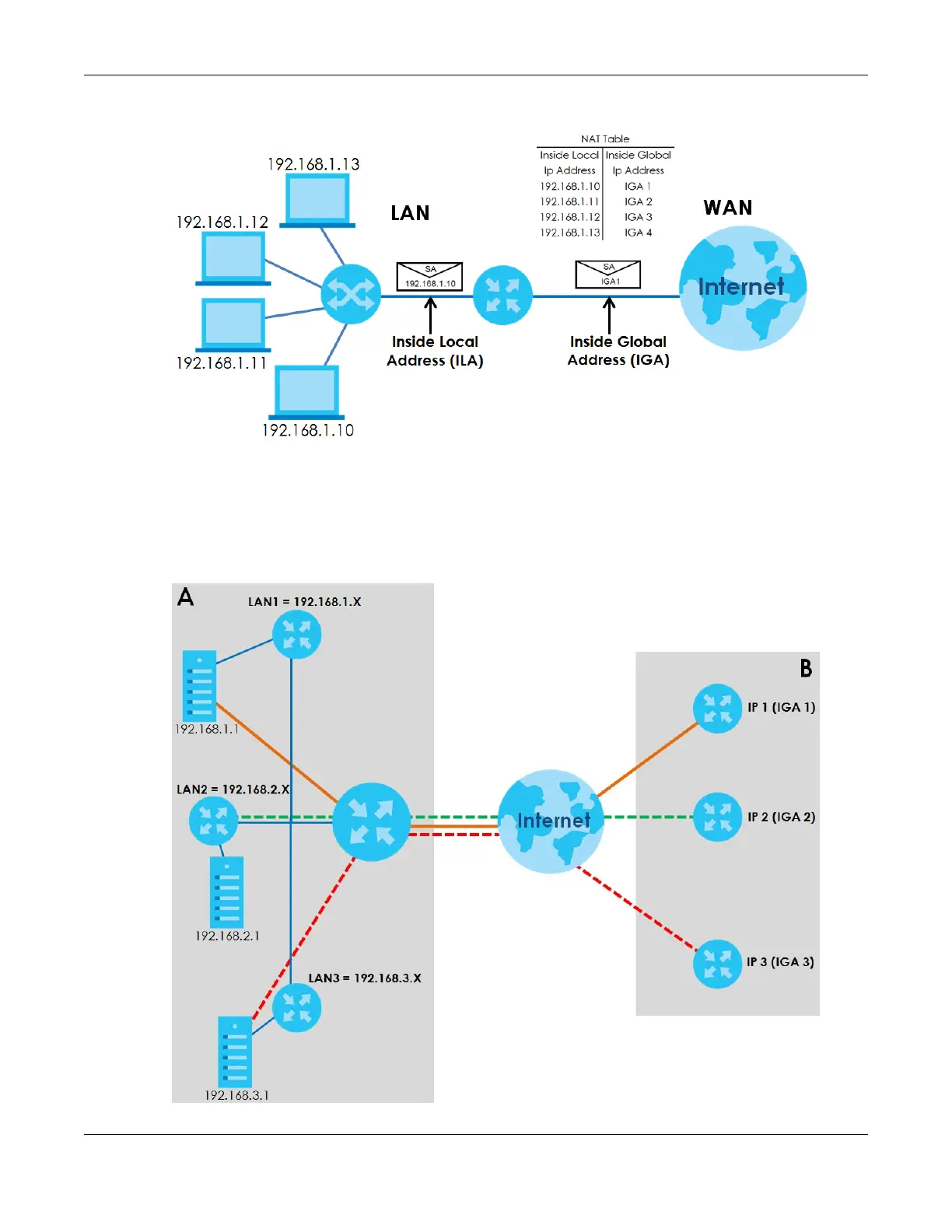

Figure 181 How NAT Works
13.9.4 NAT Application
The following figure illustrates a possible NAT application, where three inside LANs (logical LANs using IP
alias) behind the Zyxel Device can communicate with three distinct WAN networks.
Figure 182 NAT Application With IP Alias
ZD
ZD
