Chapter 6 App Tutorials

AX/DX/EX/PX Series User’s Guide

153

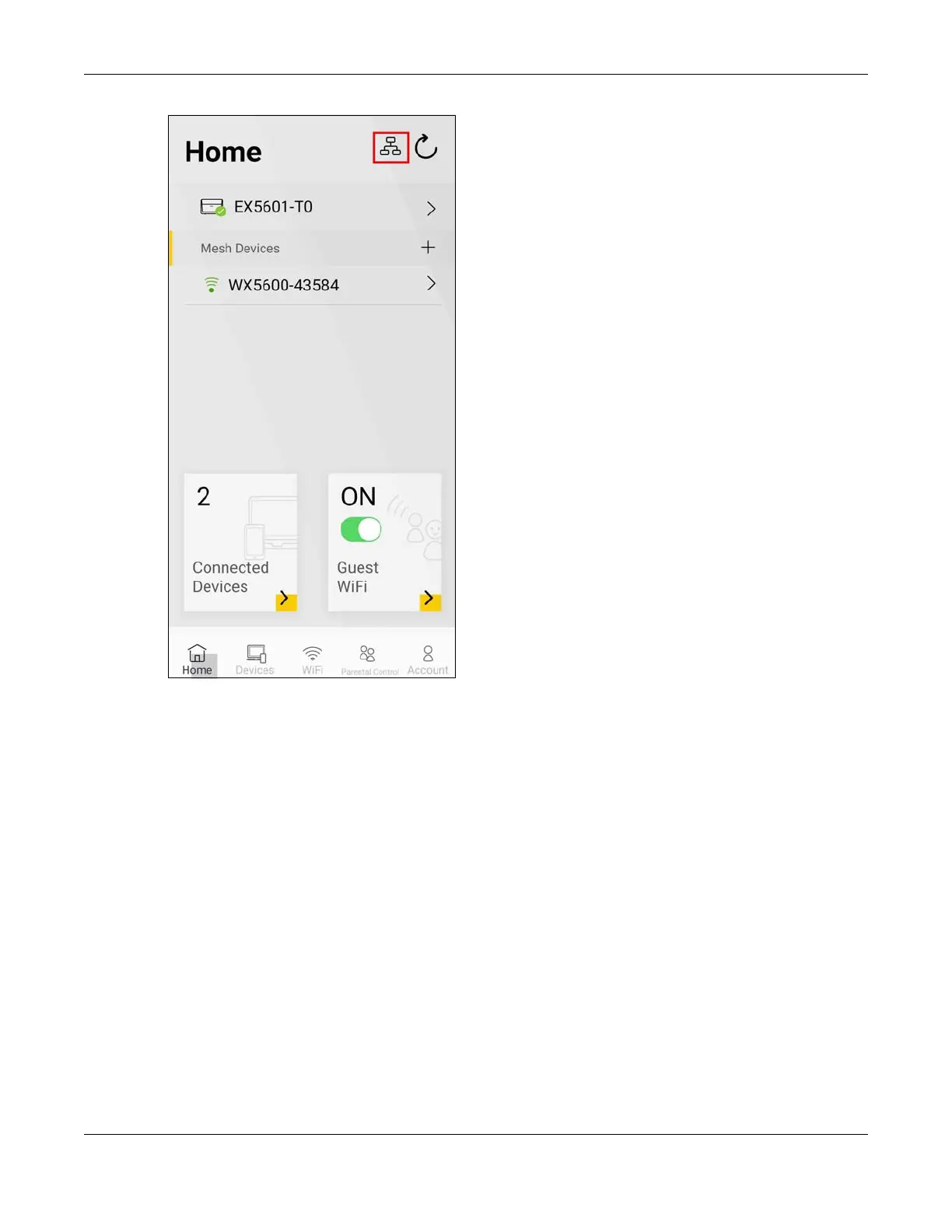

2 The number of connected clients display near the Zyxel Device icon. Tap a Zyxel Device icon to check

and manage its connected clients.
