Chapter 16 VLAN Group
AX/DX/EX/PX Series User’s Guide
360

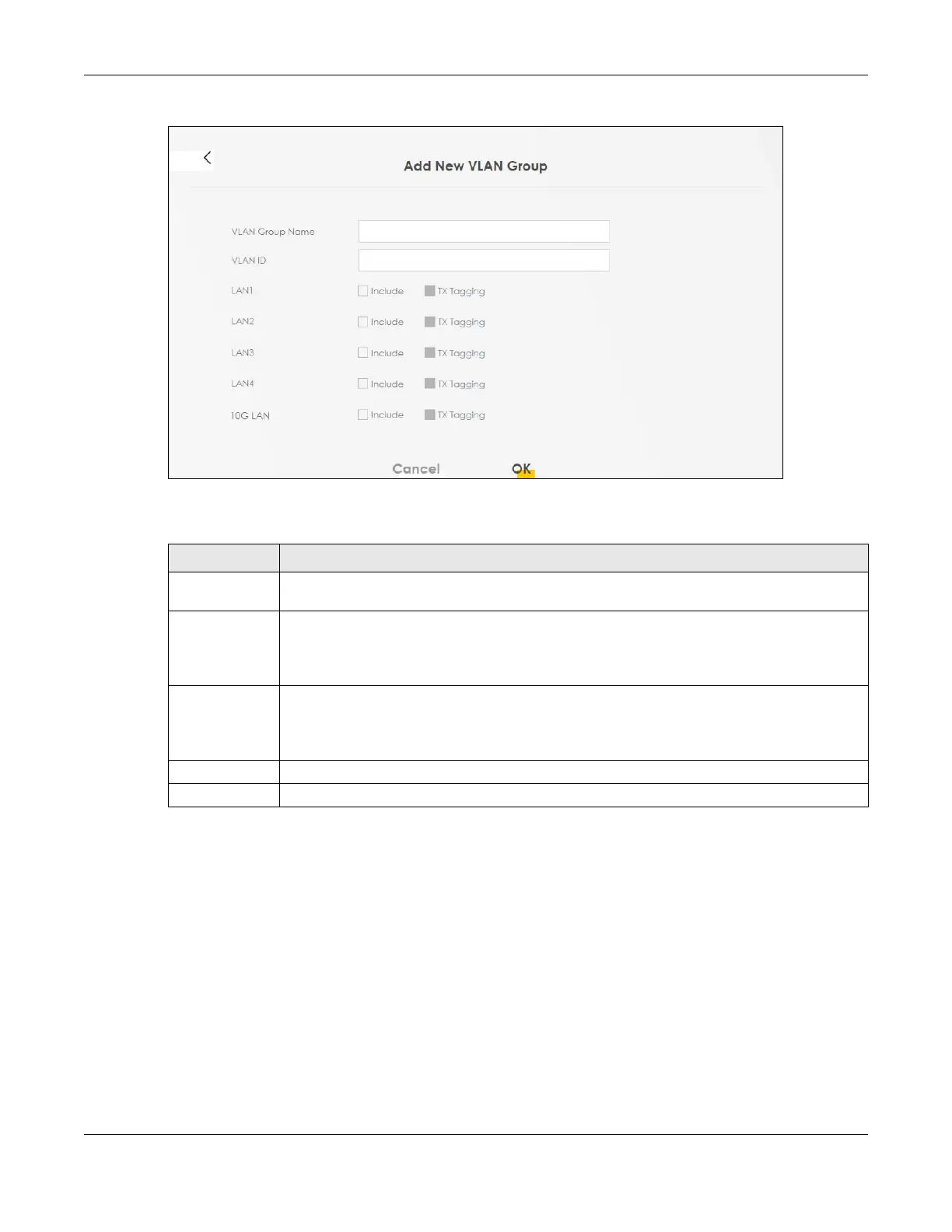

Figure 190 Network Setting > VLAN Group > Add New VLAN Group/Edit
The following table describes the fields in this screen.
Table 117 Network Setting > VLAN Group > Add New VLAN Group/Edit
LABEL DESCRIPTION
VLAN ID Enter a unique ID number, from 1 to 4,094, to identify this VLAN group. Outgoing traffic is tagged
with this ID if TX Tagging is selected below.
LAN Select Include to add the associated LAN interface to this VLAN group.
Note: Select TX Tagging to tag outgoing traffic from the associated LAN port with the
VLAN ID number entered above.
Select Include to add the associated LAN interface to this VLAN group.
Note: Select TX Tagging to tag outgoing traffic from the associated LAN port with the
VLAN ID number entered above.
Cancel Click Cancel to exit this screen without saving any changes.
OK Click OK to save your changes.
