Chapter 5 Web Interface Tutorials

AX/DX/EX/PX Series User’s Guide

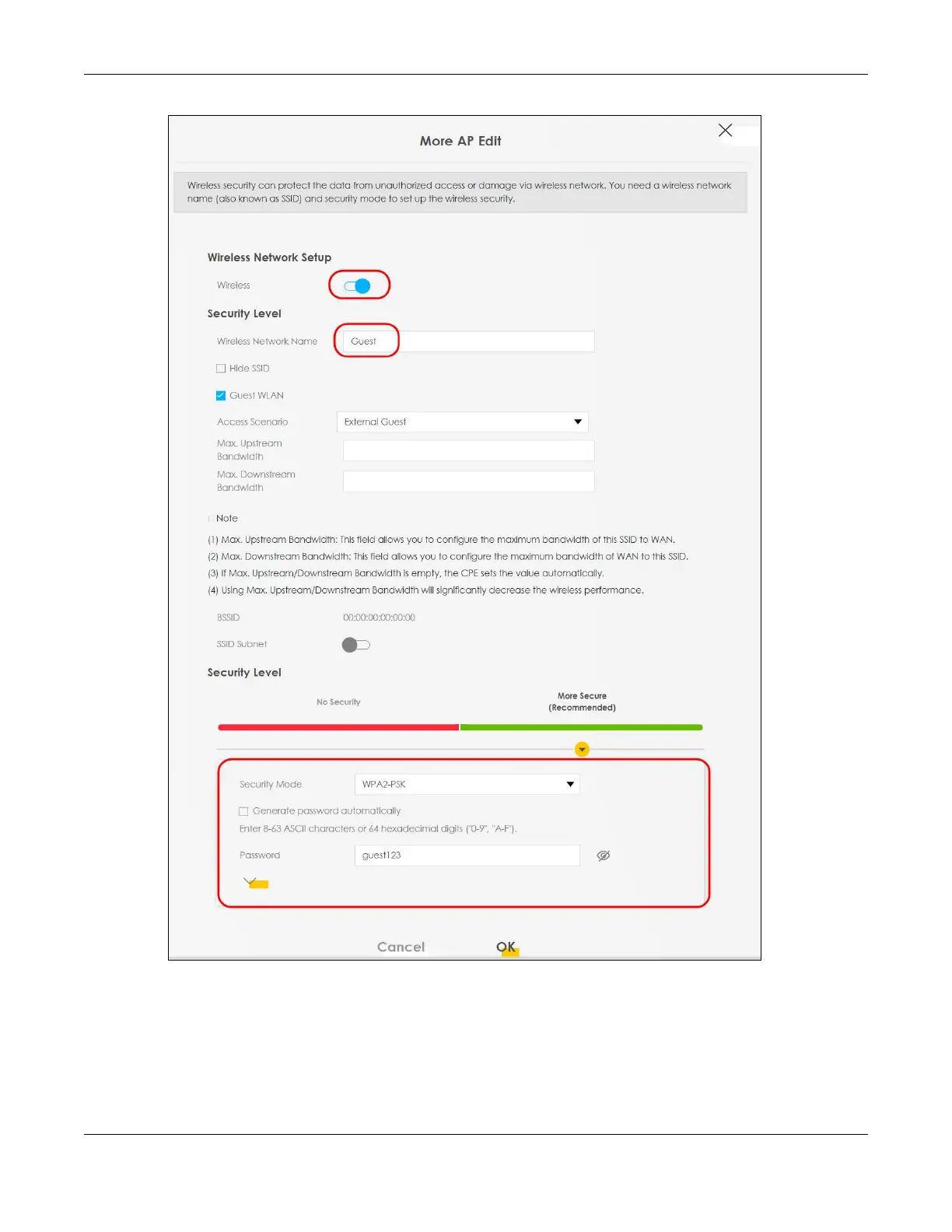

7 Check the status of Guest in the Guest/More AP screen. A yellow bulb under Status means the SSID is

active and ready for WiFi access.
