Chapter 40 OSPF Commands
Ethernet Switch CLI Reference Guide
139
40.3 Command Examples

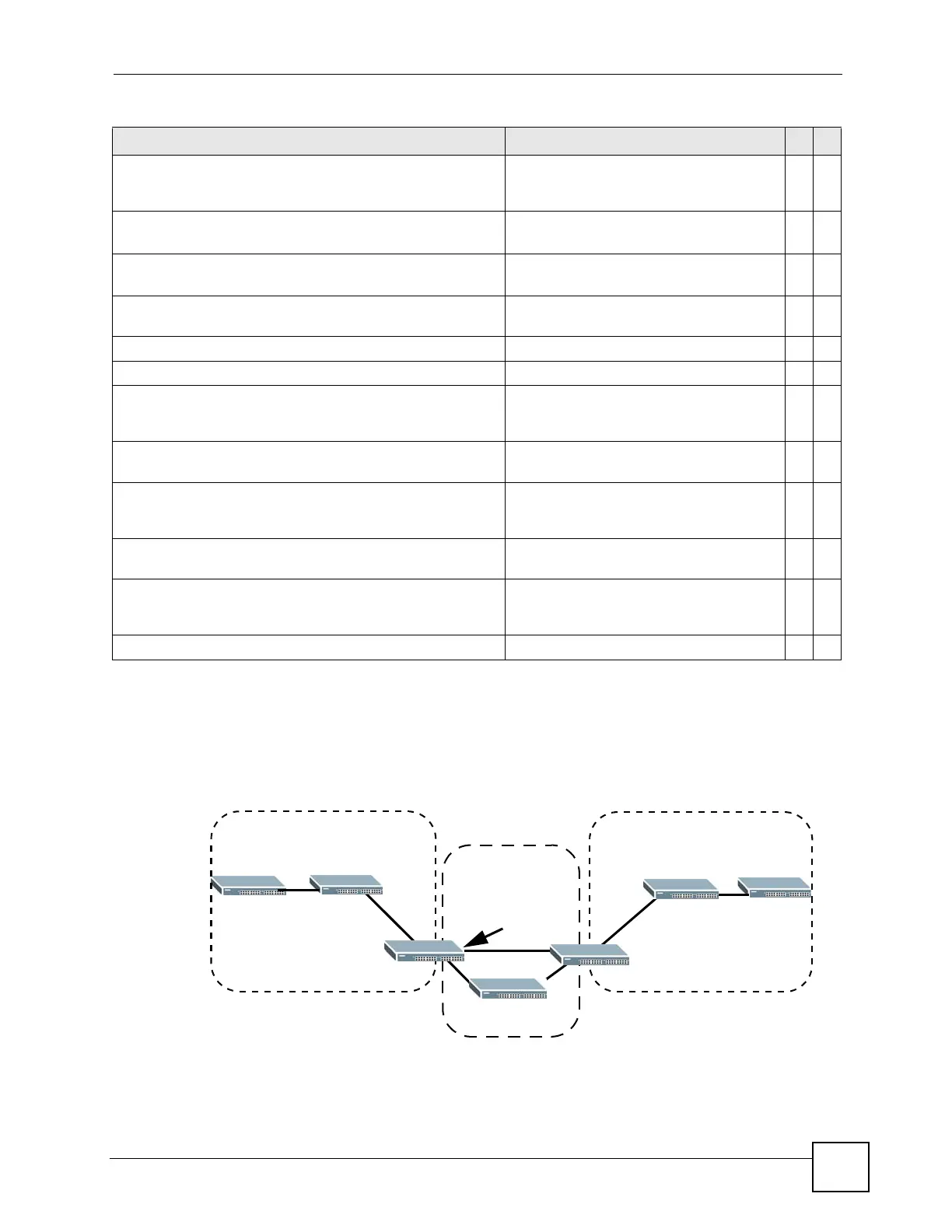

In this example, the Switch (A) is an Area Border Router (ABR) in an OSPF network.
Figure 5 OSPF Network Example
area <area-id> virtual-link <router-id>
message-digest-key <keyid> md5 <key>
Enables MD5 authentication and sets the
key ID and key for the virtual link in the
area.
C13
no area <area-id> virtual-link <router-
id> message-digest-key
Resets the authentication settings on this
virtual link.
C13
area <area-id> virtual-link <router-id>
name <name>
Sets a descriptive name for the virtual link
for identification purposes.
C13
exit Leaves the router OSPF configuration
mode.
C13
network <ip-addr/bits> area <area-id> Creates an OSPF area. C 13
no network <ip-addr/bits> Deletes the OSPF network. C 13
redistribute rip metric-type <1|2> metric
<0-65535>
Sets the Switch to learn RIP routing
information which will use the specified
metric information.
C13
no redistribute rip Sets the Switch not to learn RIP routing
information.
C13
redistribute static metric-type <1|2>
metric <0-65535>
Sets the Switch to learn static routing
information which will use the specified
metric information.
C13
no redistribute static Sets the Switch not to learn static routing
information.
C13
passive-iface <ip-addr/bits> Sets the interface to be passive. A passive
interface does not send or receive OSPF
traffic.
C13
no router ospf Disables OSPF on the Switch. C 13
Table 92 OSPF Command Summary (continued)
COMMAND DESCRIPTION M P
Area 0
Backbone
Area 1
IP: 172.16.1.1
A
