LCD KVM Console User Manual
14
Three user-level settings, multi-user group settings, suitable for a variety of management requirements
Remote control desktop can be set according to user habits Two different mouse application mode
Hardware Requirements
Console
Rear two USB Type A keyboard and mouse
Pre-set a USB Type A type keyboard and mouse
A set of USB interface mouse
A set of USB interface keyboard
Single-ended extension cable (optional)
IP remote control terminal 1000M network interface (optional installation)
Computer
The following devices must be installed on each computer:
A VGA or DVI video display card
USB Type A connection port
PS2PS2 keyboard, mouse Port
Cables
KVM equipment provides six kinds of connection cables according to the user's use to choose:

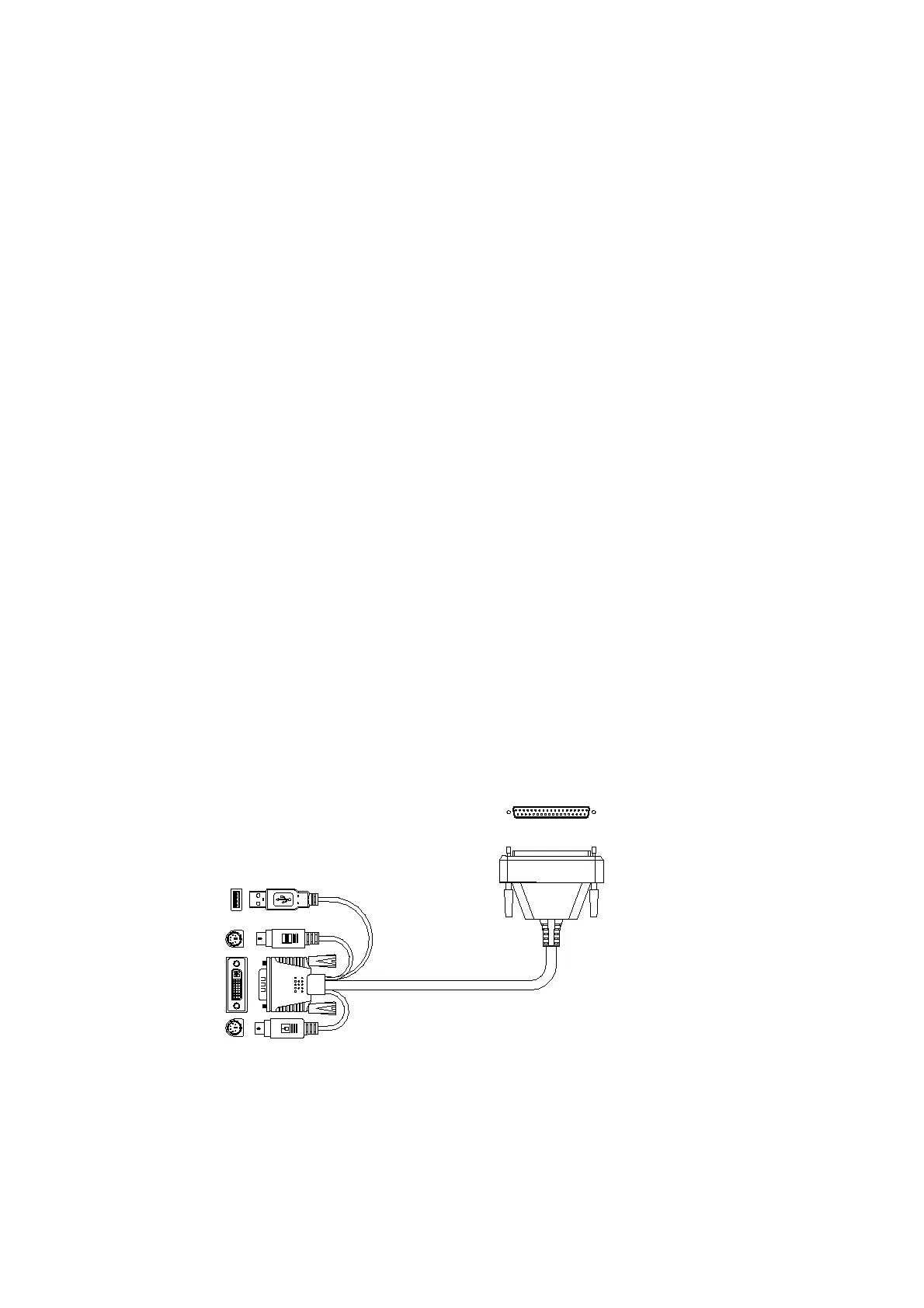

LCD KVM switch single port DVI cable
LCD Connector DB37P
Computer-side DVI-I + USB (Type A)+ PS2 keyboard (purple) + PS2 mouse (green)
LCD KVM switch single port VGA cable
LCD Connector DB37P
