KVM Module assembly & disassembly
This series of LCD screen and keyboard, mouse and the rear part of the KVM part of the components can be
demolished separation, this design allows you to change the KVM components, or KVM components
damaged KVM components dismantled after the return to the manufacturer for repair and replace.

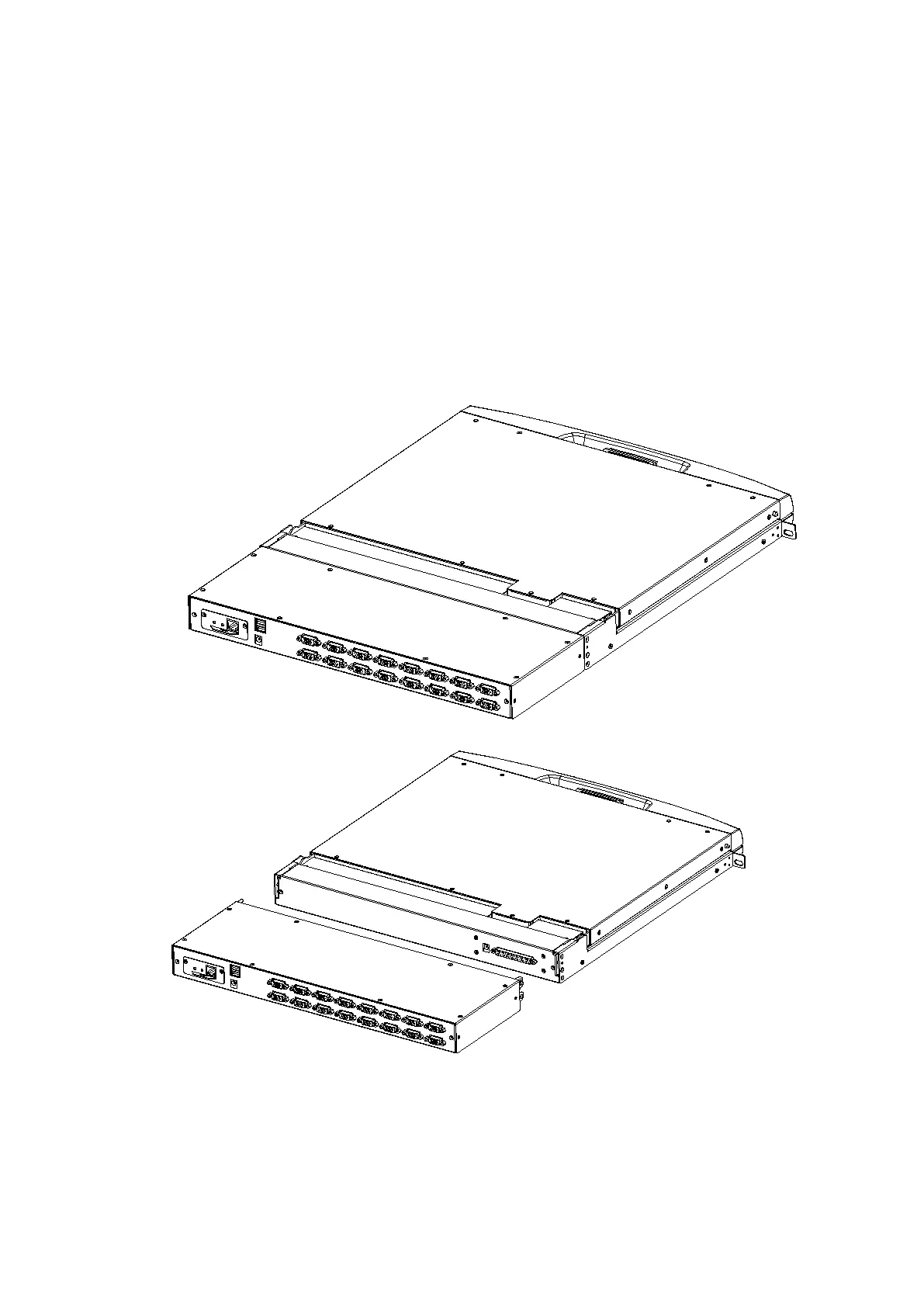

Please refer to the figure for loading and unloading operations:
1. Now put this series of products on the appropriate operating platform, ready for
Screwdriver tools for subsequent use of removable screws.
Remove the KVM assembly and the captive screws on the side brackets as shown to separate the KVM
assembly from the front LCD assembly.
3.Please note the connector between the KVM module &LCD during the Removal and installation, or it may
damage the connection interface and equipment function failure.
