Installation manual 2N® IP Force
Refer to the Configuration Manual for details of Wiegand, outputs and reader.
Refer to theAutomation manualfor details of input, red LED and tamper
function and use.

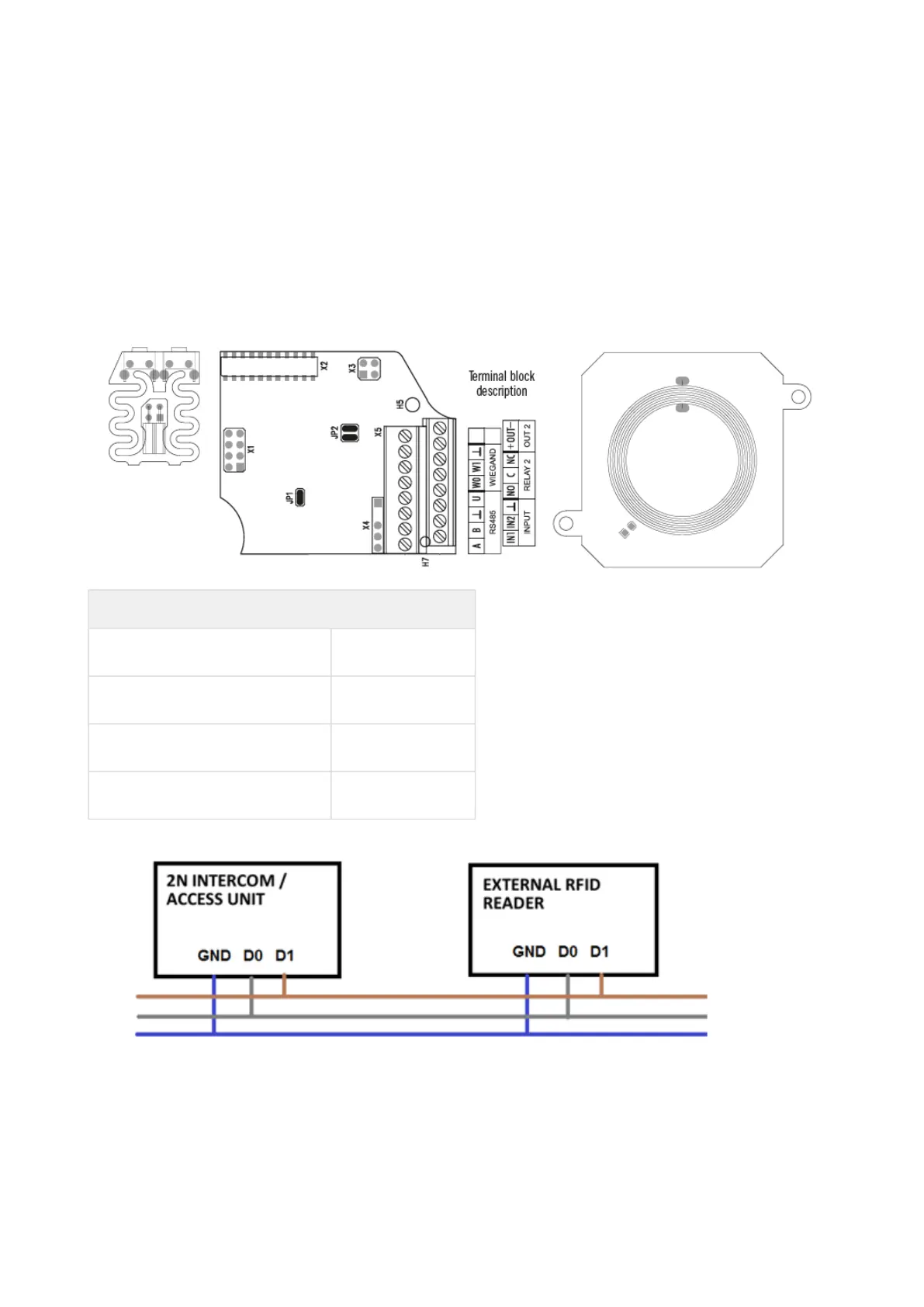

Connection:
Wiegand Input Technical Parameters
Current 5 mA
Input resistance 680 Ohm
Pulse length 50 μs
Delay between pulses approx. 2 ms
Recommended Wiring Diagram for Reader with Bus Driver
To Next Page
