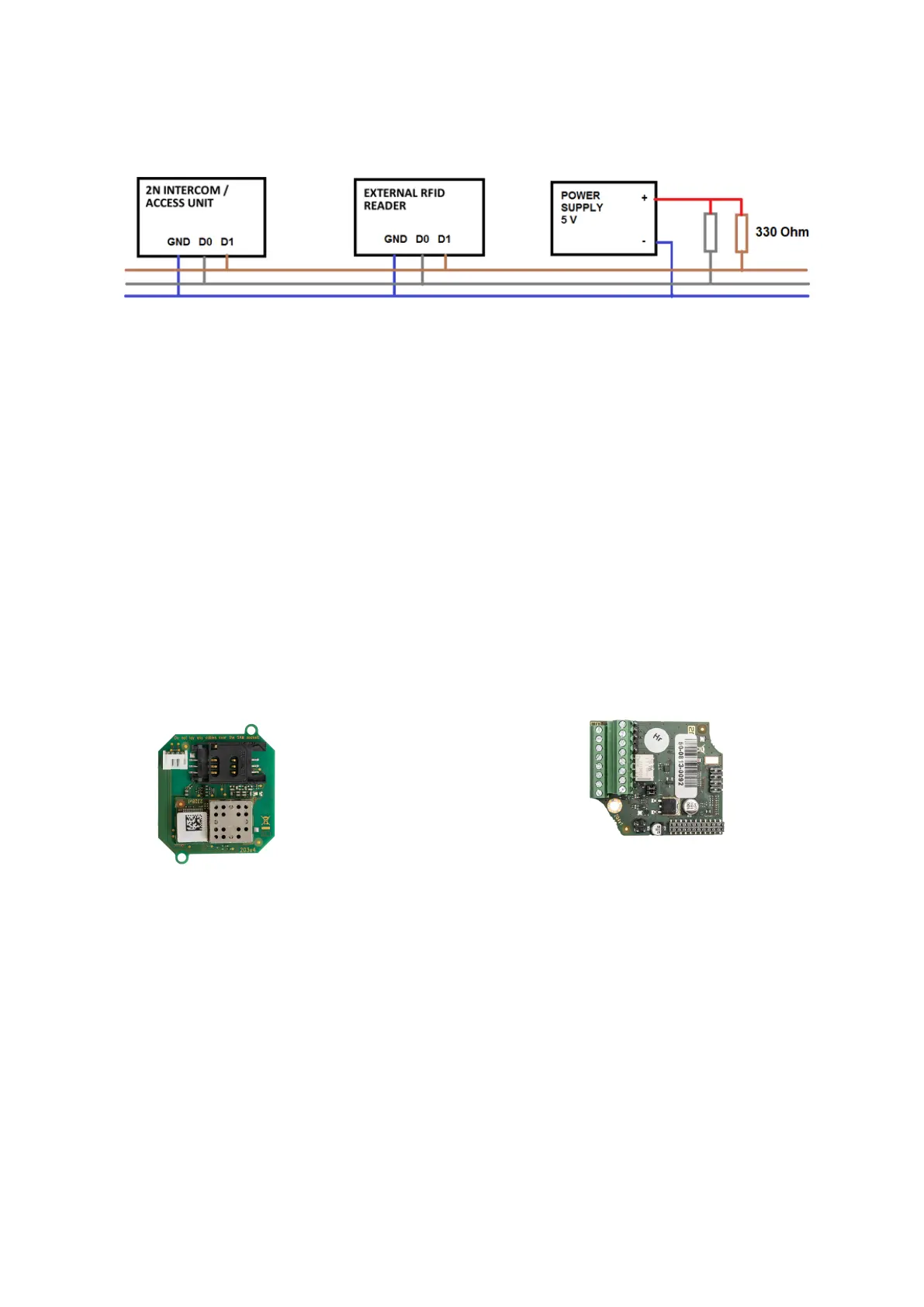

Recommended Wiring Diagram for Reader with Open Collector (OC)
Output
Internal RFID Card Reader13.56 MHz
TheInternal RFID Card Reader 13.56 MHz(Part No. 9151031/9151017)is
used for reading RFID card Ids in the 13.56 MHz band, NFC supported. This
module is intended for mounting into the2N
®
IP Forcemodel 9151101RPW,
9151101CRPW, 9151101CHRPW, 9151102RW, 9151102CRW and
9151102CHRW. These models have an window, which is necessary for
antenna operation.If theInternal RFID Card Readeris installed, it is not
possible to install theAdditional Switch.
9151031
9151017

Function:
The2N
®
IP ForceInternal RFID Card Reader adds two logical inputs, two
additional switches and a tamperswitch to the2N
®
IP Forcebasic unit.
