Installation manual 2N® IP Force

81 / 118
Refer to theConfiguration Manualfor details of Wiegand, outputs and reader.
Refer to theAutomation manualfor details of input, red LED and tamper
function and use.


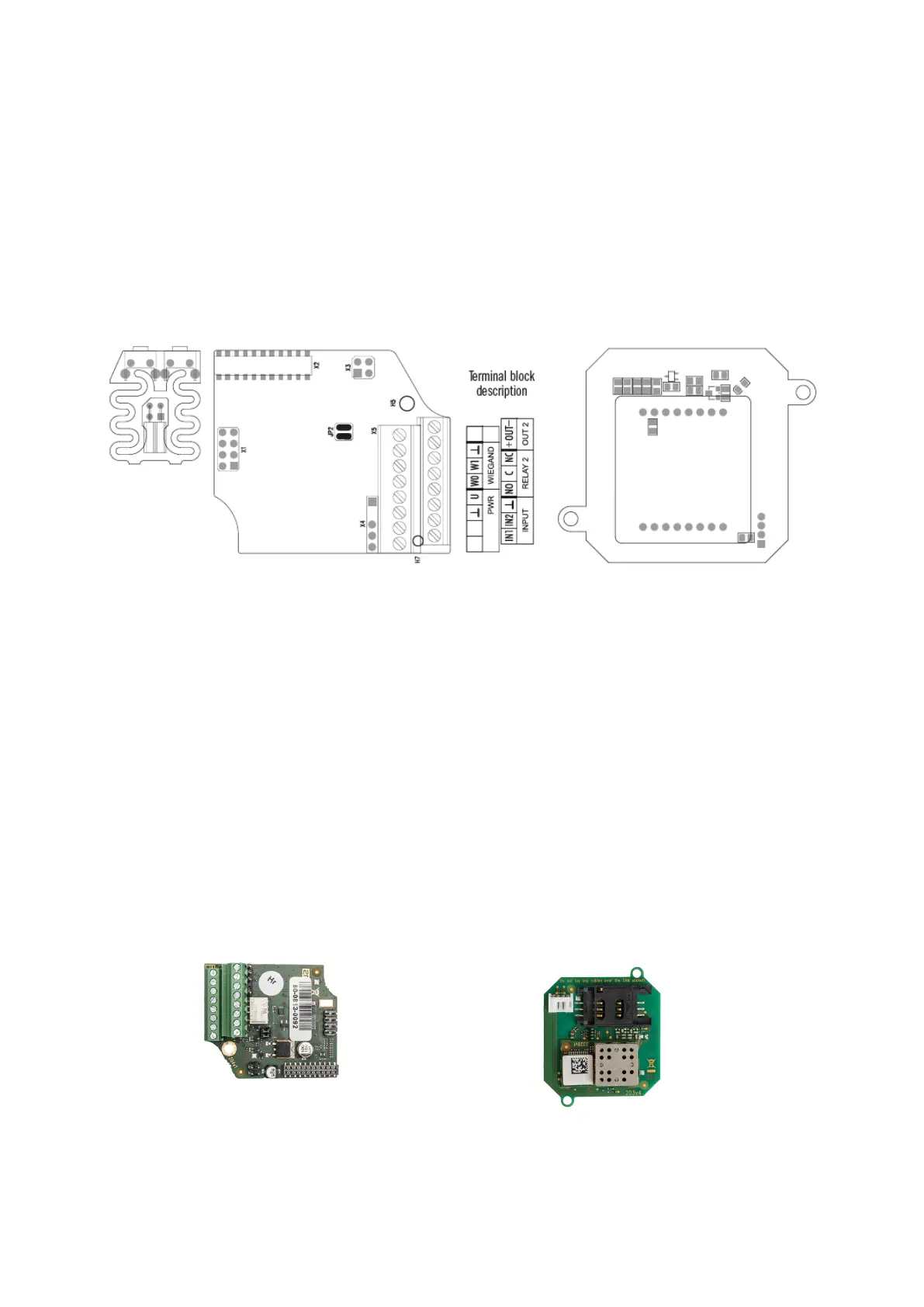

Connection:


Internal secured RFID Card Reader13.56 MHz
TheInternal RFID Card Reader 13.56 MHz(Part No.9151031S/9151019)is
used for reading RFID card Ids in the 13.56 MHz band, NFC supported. This
module is intended for mounting into the2N
®
IP Forcemodel 9151101RPW,
9151101CRPW, 9151101CHRPW, 9151102RW, 9151102CRW a 9151102CHRW.
These models have an window, which is necessary for antenna operation.If
theInternal RFID Card Readeris installed, it is not possible to install
theAdditional Switch.
9151019
