98 APPENDIX B: NETWORK CONFIGURATION EXAMPLES
Simple Network
Configuration
Examples
The following illustrations show some simple examples of how the Switch
4200 Family can be used in your network.
Desktop Switch
Example
The example in Figure 22
shows how the Switch 4200 Family can be used
for a group of users that require dedicated 10 Mbps or 100 Mbps
connections to the desktop. The Switch 4200 Family stack uses one of its
built-in 1000BASE-T ports to provide a Gigabit Ethernet link to a Switch
3870 in the basement.

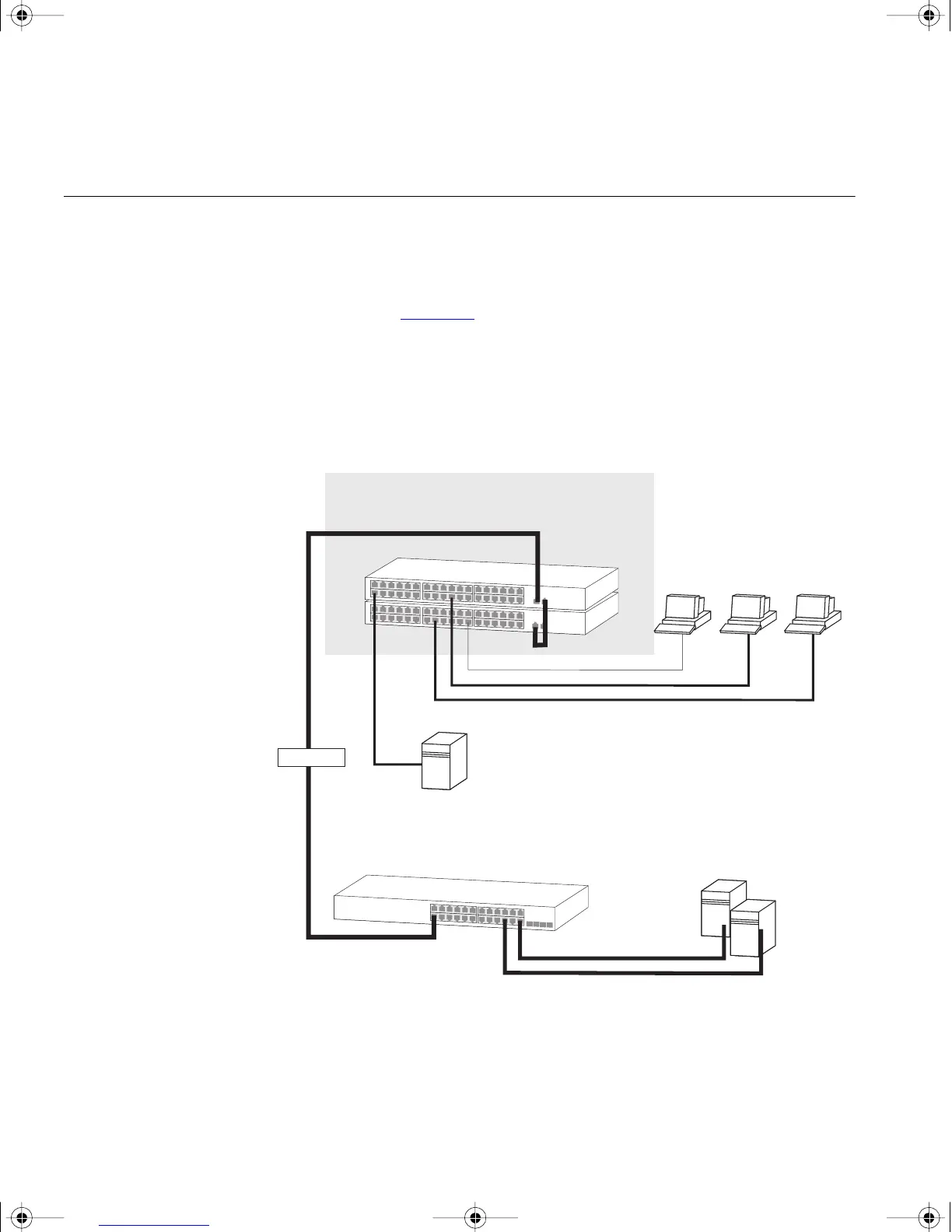

Figure 22 Using the Switch 4200 Family in a desktop environment
Switch 4200 Family stack
Endstations on
10 Mbps/100 Mbps connection
s
Local server on a switched
100 Mbps connection
Local server on a switched
100 Mbps connection
Servers on a
1000 Mbps
connection
Switch 3870
1000 Mbps
