Adding MAC Addresses to the Address Table
The Address Table Add Page allows the network manager to assign MAC addresses to ports with
VLANs.
Click Monitoring > Address Table > Add. The Address Table Add Page opens.

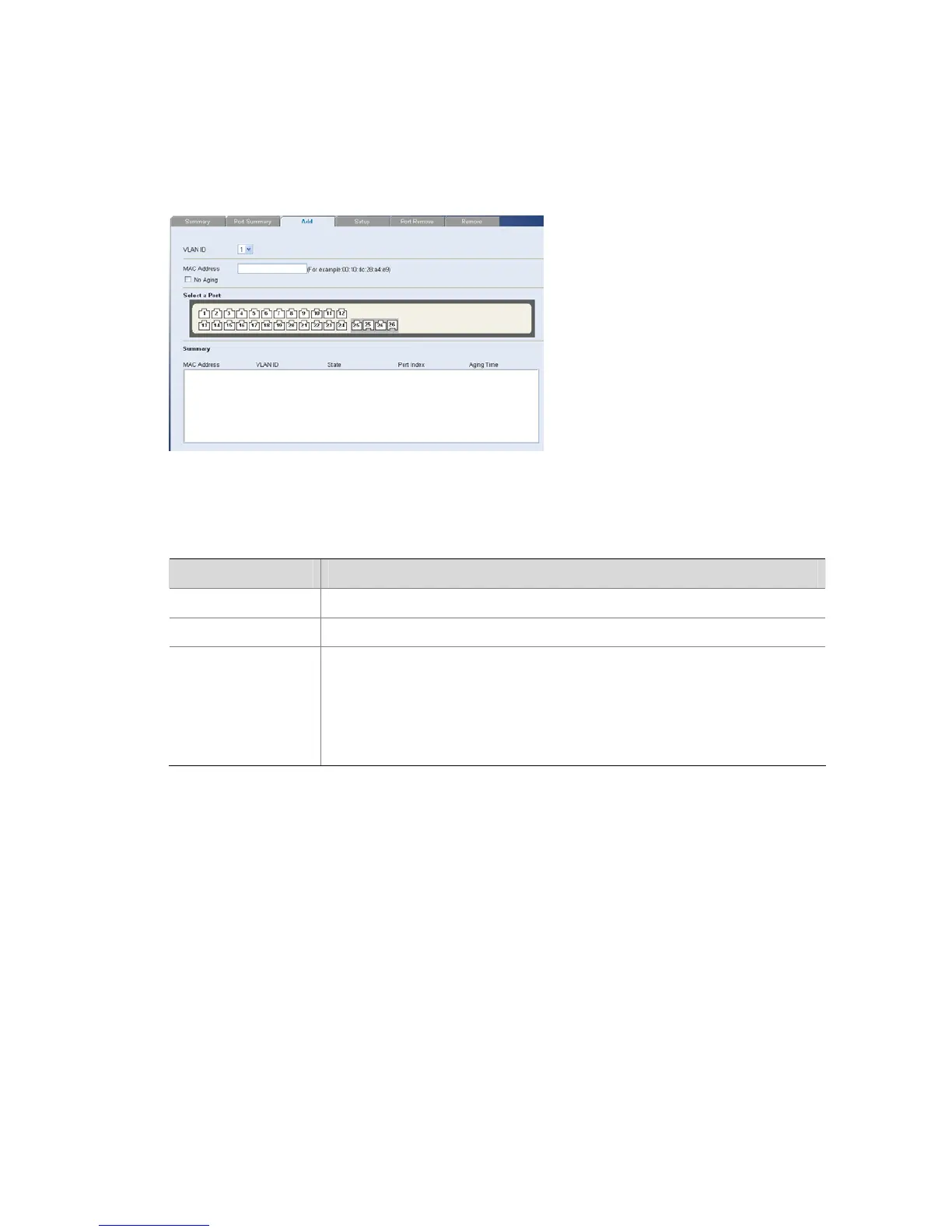

Figure 3-9 Address Table Add Page
The Address Table Add Page contains the following fields:
Table 3-8 Address Table Add Page item description
Item Description
VLAN ID Selects a VLAN ID.
MAC Address Defines a MAC address to be assigned to the specific port and VLAN ID.
No Aging
Marks the aging status of the MAC address assigned by the user. The
possible values are:
z Checked: Indicates that the Address Table entry assigned by the user is
not aged out.
z Unchecked: Indicates that the Address Table entry assigned by the user
is aged out.
Defining Aging Time
The Address Table Aging Time Setup Page allows the network manager to define the Address Table
Aging Time. The Aging Time is the amount of time the MAC addresses remain in the Dynamic Address
table before they are timed out if no traffic from the source is detected. The default value is 300
seconds.
Click Monitoring > Address Table > Setup. The Address Table Aging Time Setup Page opens.
