Navigating Around the Web Interface 23
The logon page also displays the IP address that the
Switch is currently using.

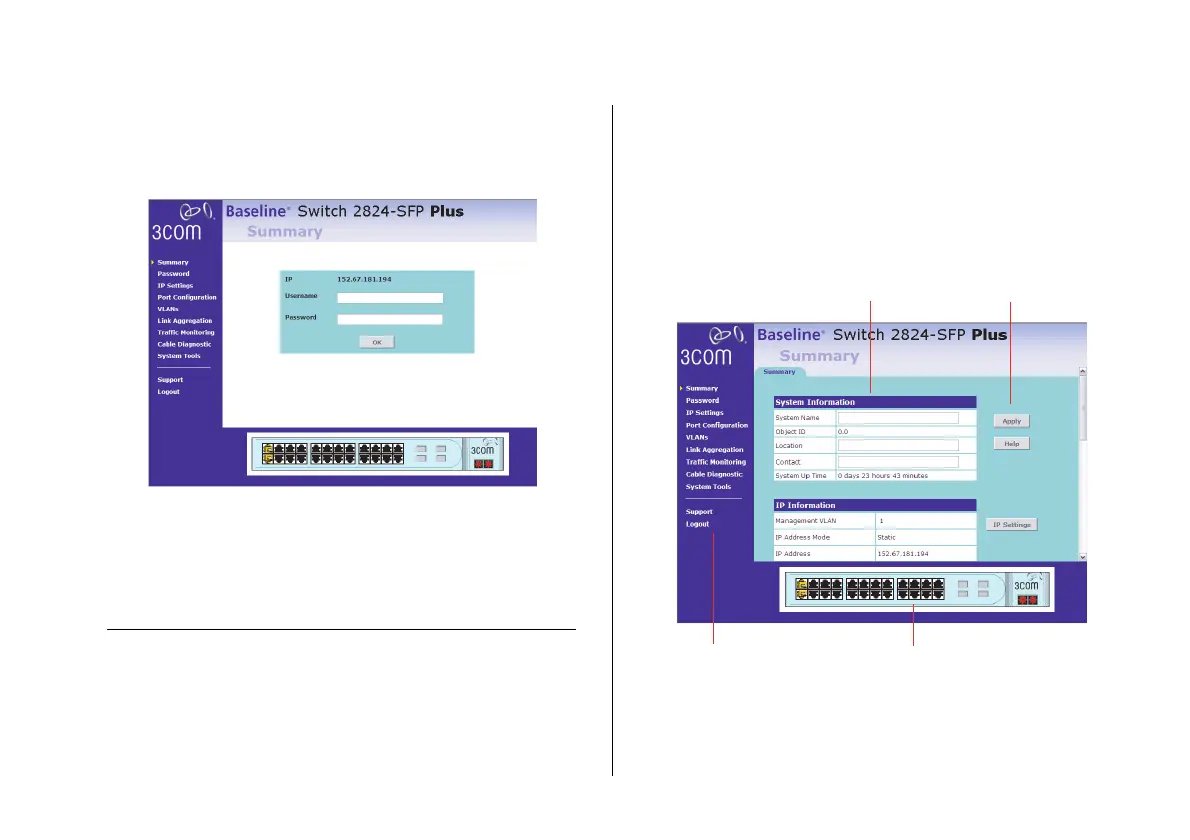

Figure 7 Logon Page
To log on to the Web interface:
1 In Username, type admin.
2 Leave the Password field blank.
3 Click OK.
Navigating Around the Web Interface
The Web interface has been designed to enable you to
easily perform advanced configuration tasks and view
information about the Switch.
Menu
The menu is located on the left side of the Web
interface. When you click an item on the menu, the
related information appears in the main section of the
interface.
Figure 8 Web Interface Layout
Table 7 lists the available items on the menu.
Menu Device Mimic
Main Section
Buttons
