Configuring Link Aggregation 39
Modifying Settings and Deleting an Aggregated
Link
Use the Modify/Delete tab to modify the trunk name
and configure flow control and duplex settings of the
aggregated link.
To modify trunk settings:
1 On the Modify/Delete tab, modify any of the following
settings:
■ Name — Allows you to label an interface (up to
characters)
■ Flow Control — Allows automatic or manual
selection of flow control.
■ Speed Duplex – Allows auto-negotiation to be
enabled or disabled. When autonegotiation is
disabled, you can force the settings for speed,
duplex mode, and flow control.
2 Click Apply.
To delete a trunk, click the corresponding Delete check
box, and then click Apply.

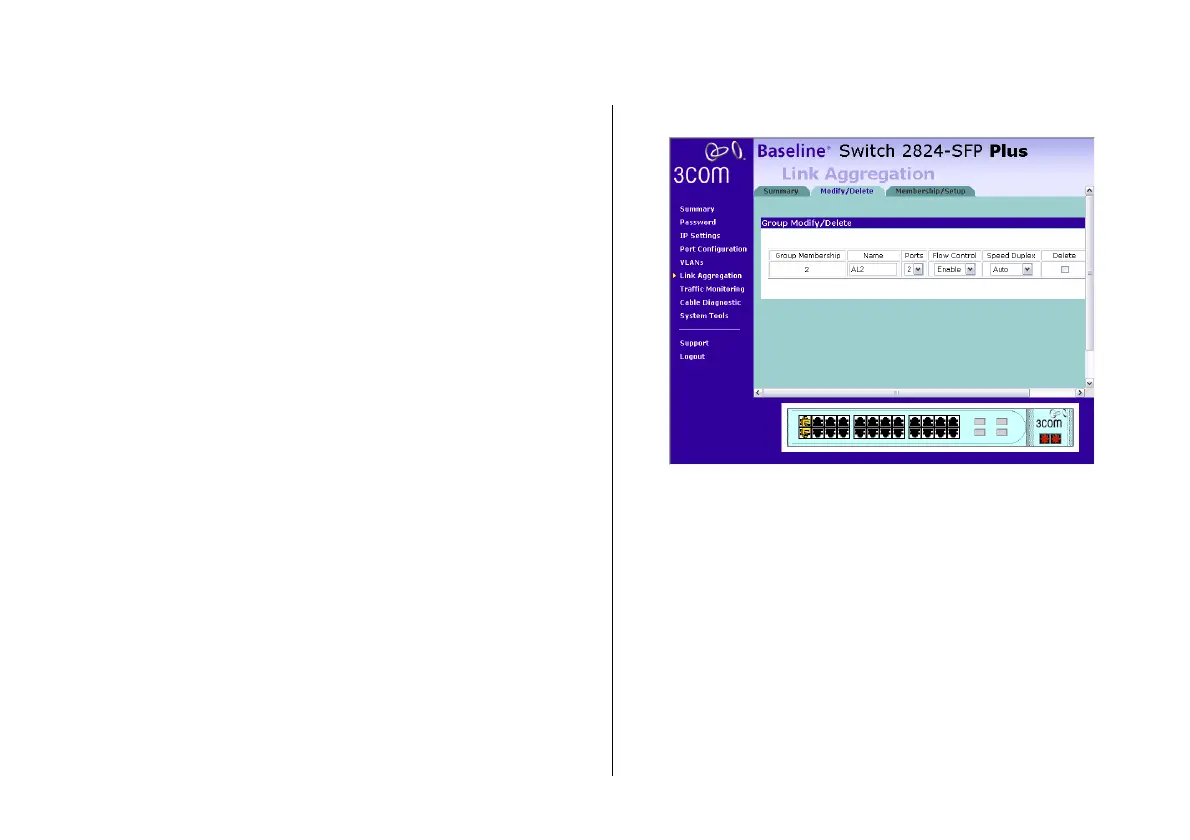

Figure 19 Modify/Delete Tab
Viewing the Trunk Summary
If you want to view a summary of the trunk settings,
click the Summary tab.
