144 CHAPTER 10: CONFIGURING IGMP SNOOPING
Defining IGMP
Snooping
The IGMP Snooping Setup Page allows network managers to define
IGMP Snooping parameters for VLANs.
The monitor users have read-only access to this page.
To configure IGMP Snooping:
Click Device > IGMP Snooping > Setup. The IGMP Snooping Setup
Page opens:

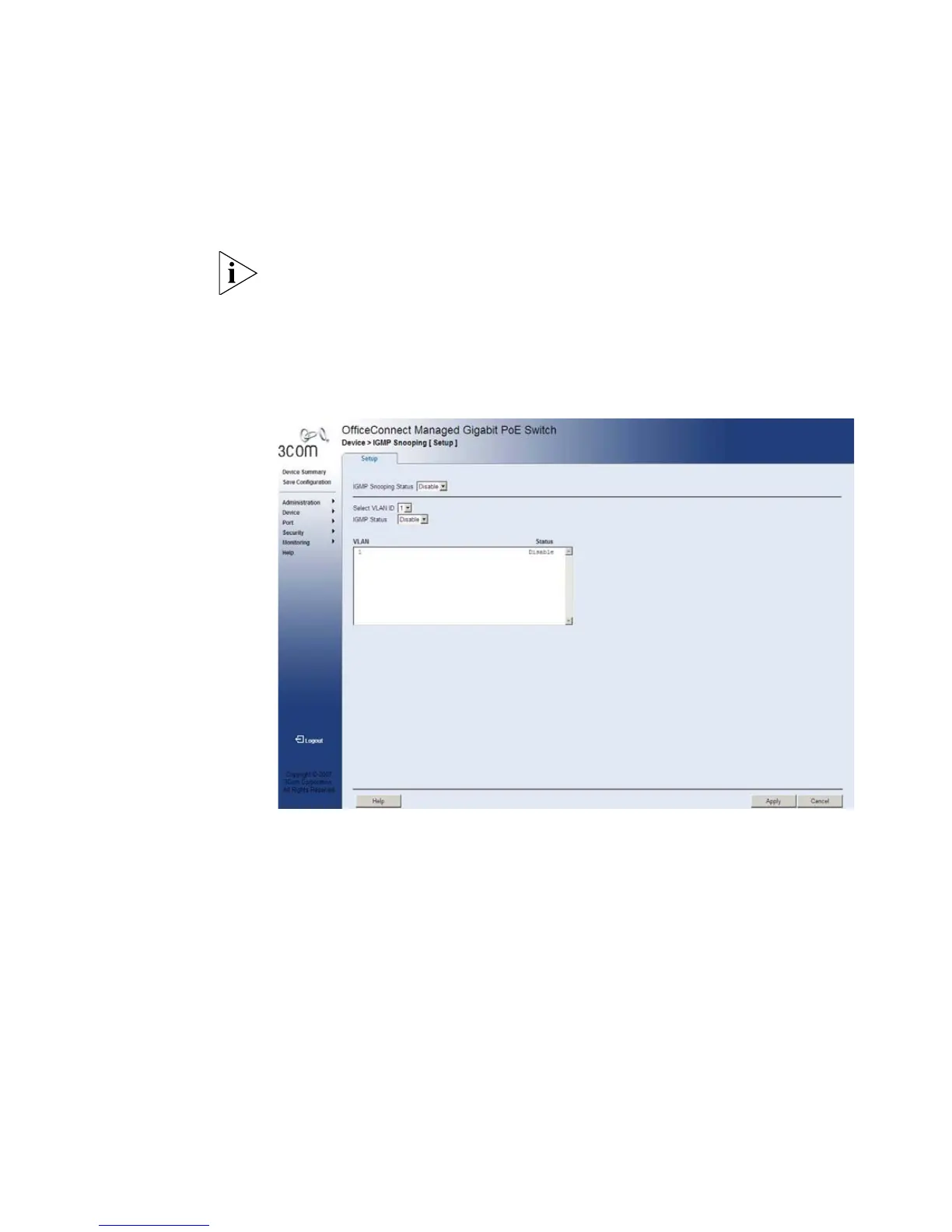

Figure 69 IGMP Snooping Setup Page
The IGMP Snooping Setup Page contains the following fields:
■ IGMP Snooping Status — Defines whether IGMP Snooping is
enabled on the device. The possible field values are:
■ Disable — Indicates that IGMP Snooping is disabled on the device.
This is the default value.
■ Enable — Indicates that IGMP Snooping is enabled on the device.
■ Select VLAN ID — Specifies the VLAN ID.
■ IGMP Status — Defines whether IGMP snooping is enabled on the
VLAN. The possible field values are:
■ Disable — Disables IGMP Snooping on the VLAN. This is the
default value.
