Configuring Address Tables 139
Removing Address
Table Ports
The Port Remove Page allows the network manager to remove ports from
the Address Table.
The monitor users have no access to this page.
To remove ports:
1 Click Monitoring > Address Table > Port Remove. The Port Remove
Page opens:

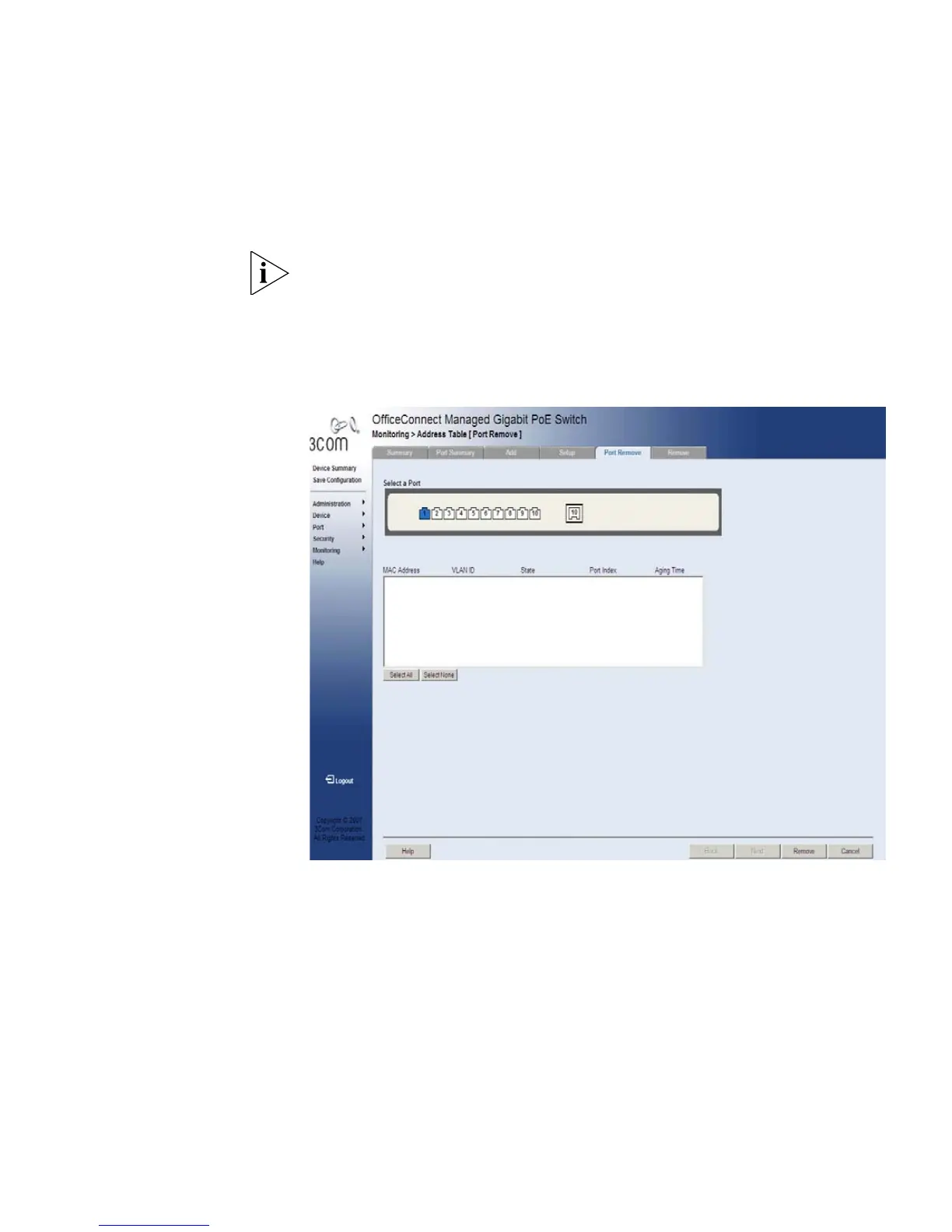

Figure 67 Port Remove Page
The Port Remove Page contains the following fields:
■ Select a Port — Selects the port to remove.
■ MAC Address — Displays the current MAC addresses listed in the
MAC address table for the selected port.
■ VLAN ID — Displays the VLAN ID associated with the port and MAC
address.
