Configuring Address Tables 141
Removing MAC
Addresses from the
Address Table
The Address Table Remove Page allows the network manager to remove
current MAC addresses from the Address Table.
The monitor users have no access to this page.
To remove MAC addresses from the Address Table:
1 Click Monitoring > Address Table > Remove. The Address Table
Remove Page opens:

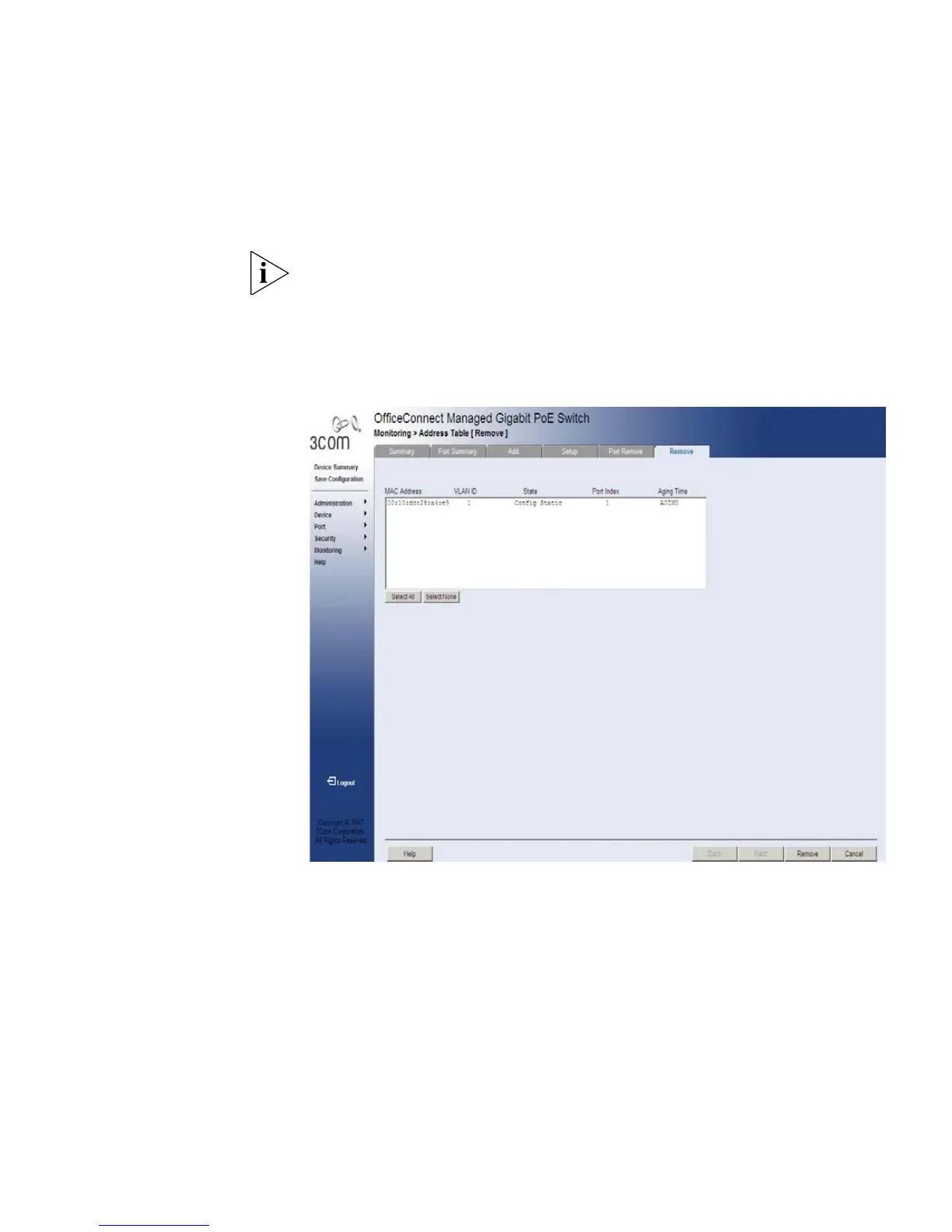

Figure 68 Address Table Remove Page
The Address Table Remove Page contains the following fields:
■ MAC Address — Displays the current MAC addresses listed in the
MAC address table.
■ VLAN ID — Displays the VLAN ID associated with the port and MAC
address.
■ State — Displays the MAC address configuration method. Possible
values are:
■ Config Static — Indicates the MAC address is statically configured.
