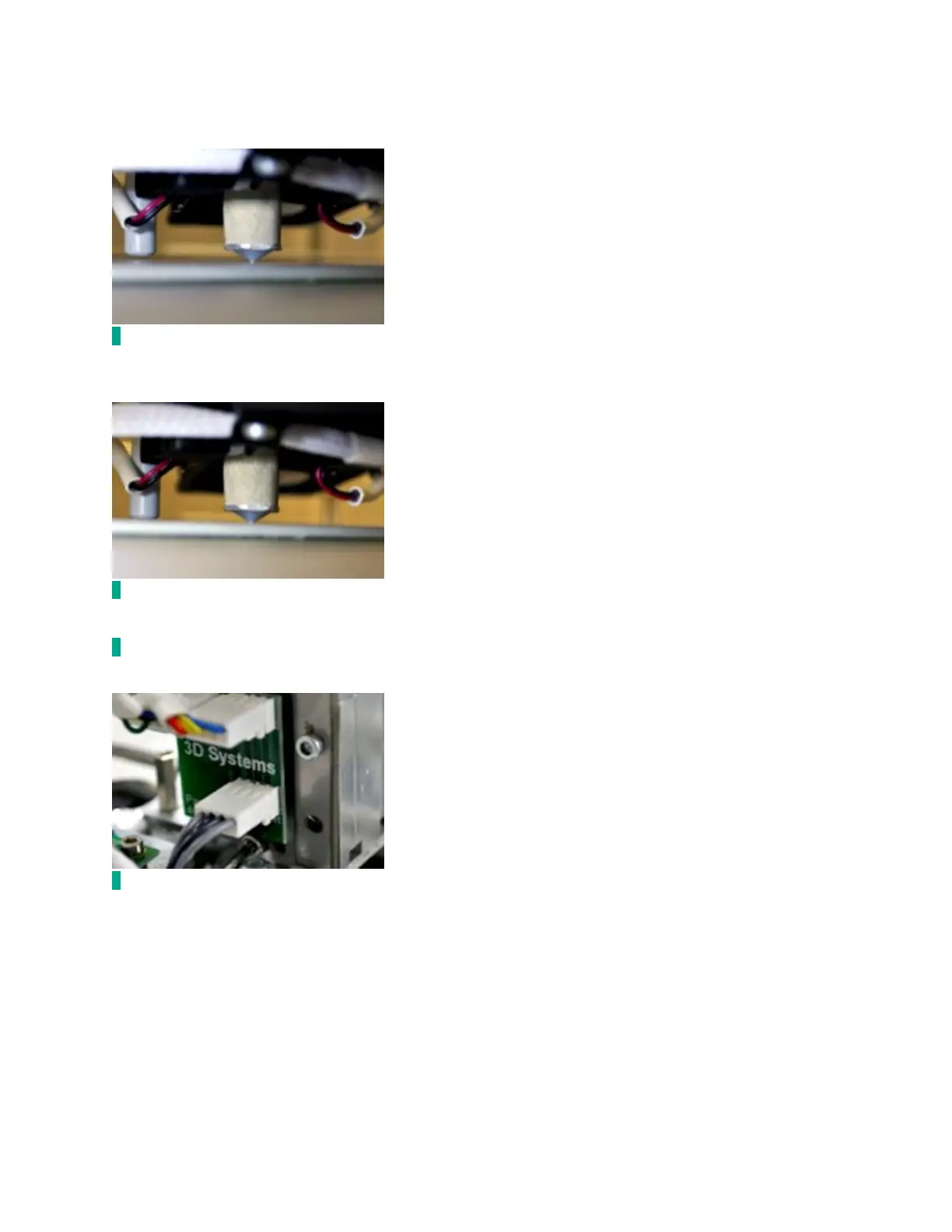

Slowly raise the print pad until the print tip is touching it.
5
Continue raising the print pad until there is approximately 0.5mm between the print pad and the CubeX
wiping stick.
6
Turn the CubeX printer off and unplug it from the mains power supply.
7
Using the 2.5mm hex driver, tighten the print tip holding bolt (pictured) to lock the print jet in place.
8
With the print tip fastened you can now turn on the CubeX printer and start printing.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the 3D Systems CubeX and is the answer not in the manual?

3D Systems CubeX Specifications

General IconGeneral
Printing colorsWhite
Print technology-
Printing materialABS, Polylactic acid (PLA)
Maximum build speed15 mm³/s
Layer thickness (max)0.100 mm
Layer thickness (min)- mm
Number of print heads1
Maximum build size (WxDxH)275 x 265 x 240 mm
Product colorGray
Viewing windowYes
Maximum extruder tip temperature280 °C
Ethernet LANNo
AC input voltage110-240 V
Weight and Dimensions IconWeight and Dimensions
Width515 mm
Height598 mm
Weight36000 g
