Unpacking
Remove the components from the box. Inspect for concealed damage and/or missing
items. If you discover any damage and/or missing pieces, contact your distributor
immediately.
Your 3M™ Pressure Feed HVLP & LVLP Spray Gun Kit includes:
• Spray Gun
• Care Kit
• Cup (optional)

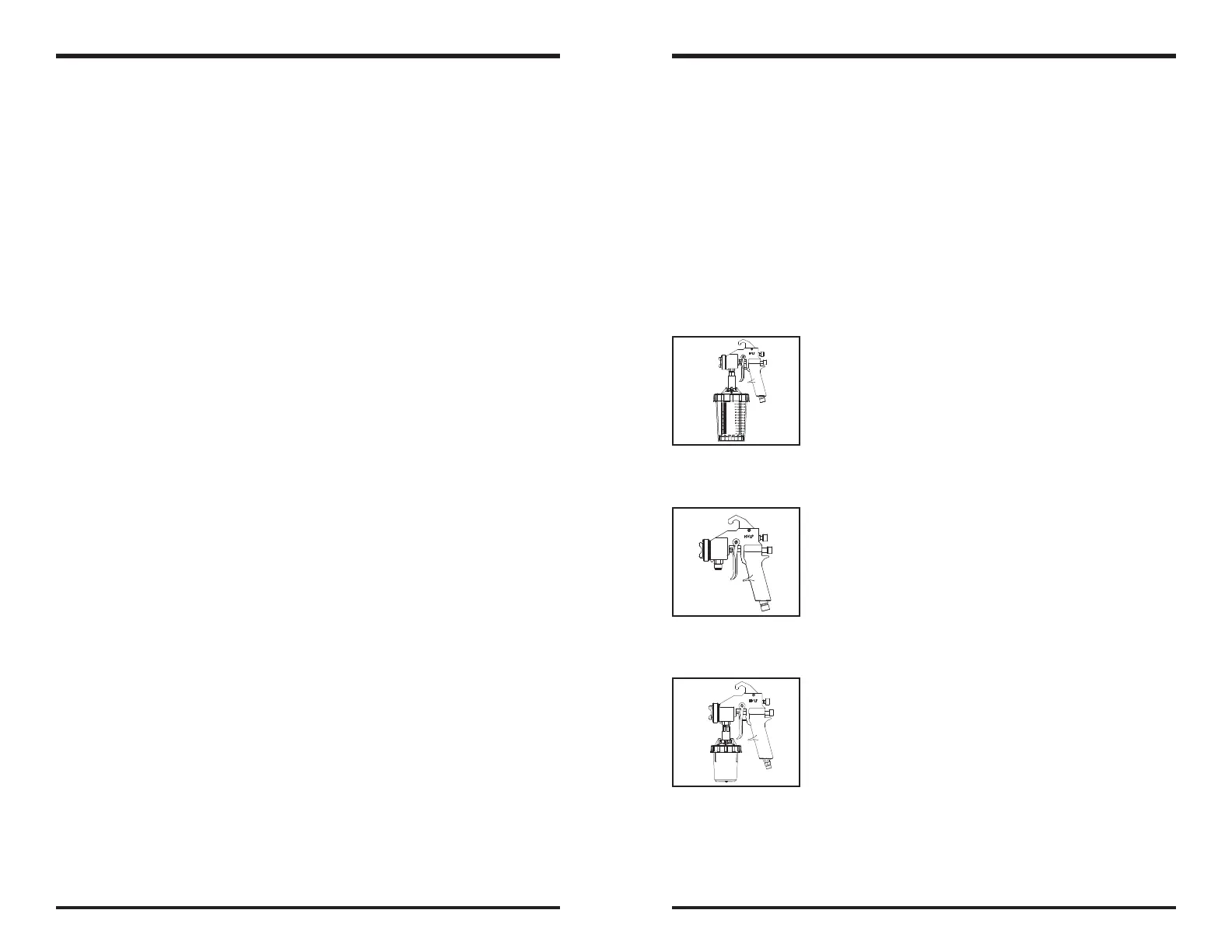

3M™ Series 10 & 14 HVLP Spray Guns
The 3M™ Series 10 & 14 HVLP Spray Guns are non-bleed
spray guns with a composite body construction, 10 cfm air
consumption, 1:1 reduction ratio, 3/4” air inlet connection:
10 psi maximum inlet air pressure*, for use with either
compressed air systems or turbines equipped with a pressure
relief mechanism. Air stops fl owing through the series 10 & 14
spray guns when the trigger is fully released.
3M™ Series 11 & 15 HVLP Spray Guns
The 3M™ Series 11 & 15 HVLP Spray Guns are bleeder
spray guns with a composite body construction, 10 cfm air
consumption, 1:1 reduction ratio, 3/4” air inlet connection:
10 psi maximum inlet air pressure*, for use with turbine air
systems only. The series 11 & 15 spray guns are a free fl ow
design, which allows air to fl ow through the spray guns even
after the trigger is released.
3M™ Series 12S HVLP Spray Gun
The 3M™ Series 12S HVLP Spray Gun is a non-bleed
spray gun with a composite body construction, 10 cfm air
consumption, 6:1 reduction ratio, 1/4” air inlet connection: 60
psi maximum inlet air pressure*, for use with compressed air
systems only.
* Maximum inlet pressure will yield approximately 10 psi at the air cap.
Spray Gun Overview
3M spray guns were designed from the inside out for the effective, effi cient, economical
application of paints, adhesives, coatings and fi nishes. These spray guns deliver large
spray patterns with very low overspray. The soft, tight, adjustable pattern with complete
atomization results in a high fi nish quality and absolute control. Each light weight
spray gun is designed for easy handling, reliability and durability and for minimum
maintenance costs.
Whether your air source is compressed air or a turbine unit, you will benefi t from the
speed of application, the decrease in masking, sanding and cleanup time and the
ability to achieve a fi ne fi nish. Combine your 3M spray gun with the 3M™ PPS™ Paint
Preparation System and enjoy additional savings of time and cleaning solvents.
3M equipment is for professional use only. Hazards can occur from equipment misuse.
Any misuse of the equipment or accessories, such as over pressurizing, modifying
parts, using incompatible chemicals and fl uids, or using worn or damaged parts can
cause serious bodily injury, fi re, explosion or property damage. Please read and follow
all Safety Statements and Instructions.
