General Set Up and Spray Gun Use
Note: Complete steps below before connecting spray gun to air source.
One atomizing head may already be semi-attached to the spray gun body in the package. You only need to fully engage and
secure onto the spray gun body. Follow the procedure below.

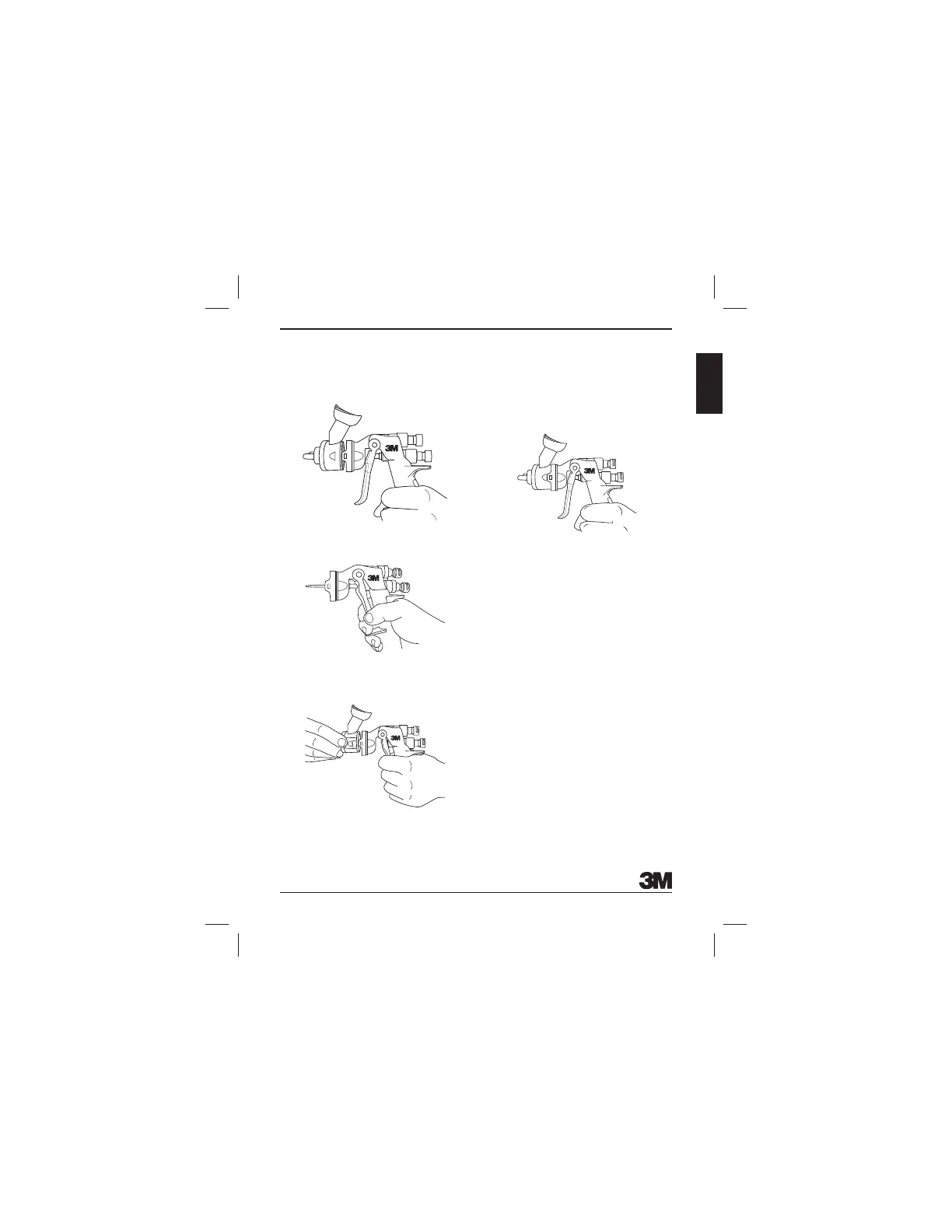

Attaching the AtomizingHead
1. Pull trigger back andhold.
2. Slide the atomizing head over the fl uid needle and push
towards the spray gun body making sure the release
buttons are aligned with the latchopenings.
3. Secure the atomizing head and listen for the “clicking”
sound for full engagement then release thetrigger.
Note: It is not necessary to pull the trigger back when
changing the atomizing head. To change the atomizing
head simply depress release buttons and pull the atomizing
head away from the spray gun body. Make sure fl uid needle
is clean when replacing the atomizing head. Then follow
“Attaching the Atomizing Head” procedure for connecting
atomizinghead.
Attaching Air Fittingor RegulatingEquipment
It will be necessary to connect an air fi tting, an air regulator
or air fl ow control valve to the air inlet located at the base of
the spray gun body.
Note: Do not use the spray gun body to tighten the
connection with air fl ow controlvalve.
Note: When used with fl ammable materials this device
must be grounded. A test for adequate grounding
should be performedregularly.
