PRODUCT OVERVIEW:
Figure 1 illustrates available harness models. Harness models are dened by their general construction and available features.
Table 1 lists all of the features available with harness models covered by this instruction. “Attachment Elements” serve as
connection points for securing a connecting subsystem. “Buckles and Adjusters” enable the harness to be secured and adjusted
for proper t. “Other Elements” includes miscellaneous features that serve a variety of purposes. “Pads” help ensure that the
harness is comfortable.
See Table 1 for more information on Component Specications.
Harness Styles
Figure 1
Reference
Harness Donning Style
Within Figure 1, “Harness Style” groups models by general construction, while
“Harness Model” sorts models by available features. The “style” of your harness is
important for determining how to wear it. The “model” is important for determining
which features come with your harness.
A Vest-Style

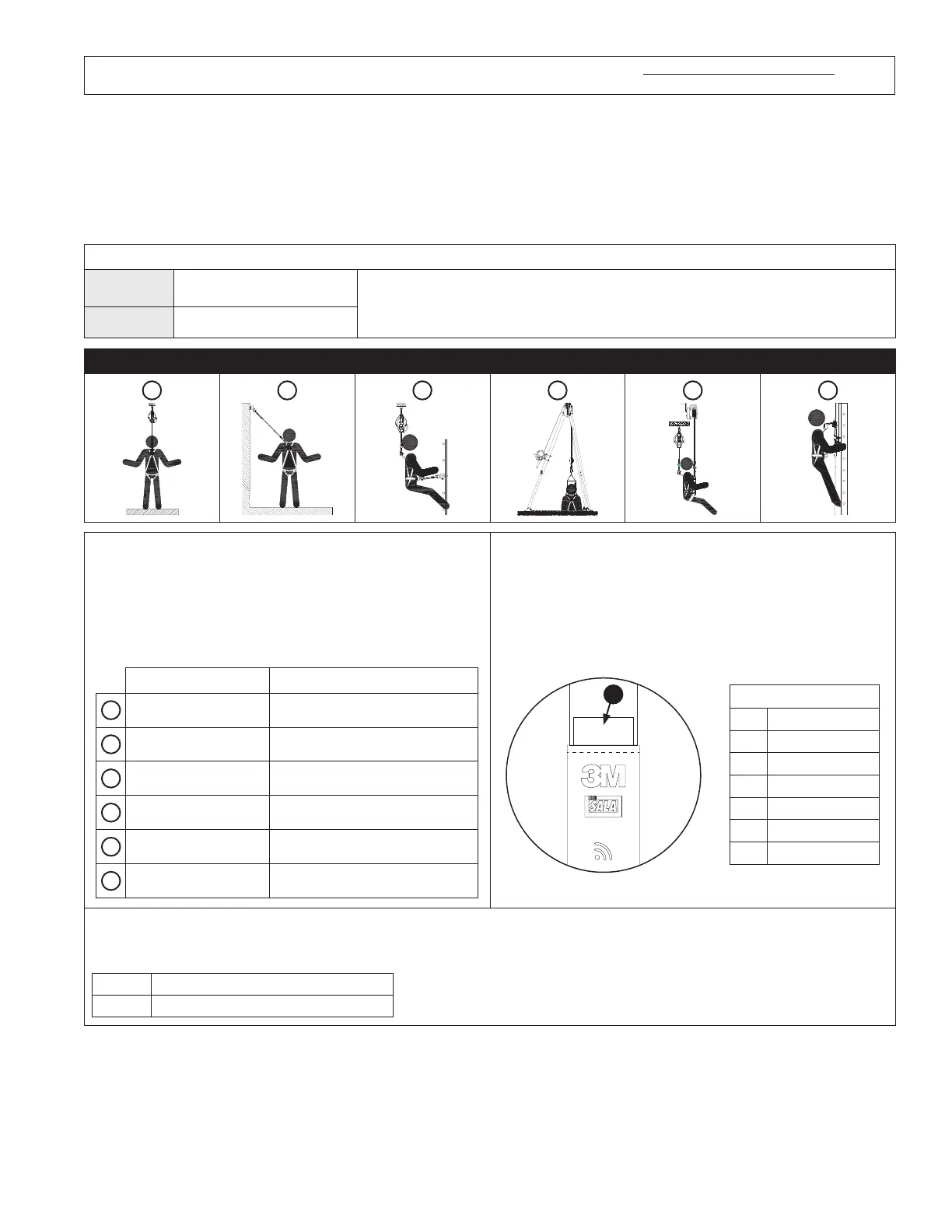

Figure 2 – System Applications
A B C D E F
System Applications
Full body harnesses may be used for a variety of system
applications. Figure 2 illustrates the applications available to
harnesses covered by these instructions. The availability of a
specic application is determined by the attachment elements
present on your harness, as outlined below. If your harness has
one of the attachment elements specied for an application, then
it may use that element for that application.
Application Type Attachment Elements
A
Fall Arrest Dorsal, Sternal, Frontal
B
Restraint
Dorsal, Sternal, Frontal, Hip,
Rear Waist
C
Work Positioning Frontal, Hip
D
Rescue Dorsal, Sternal, Frontal, Shoulder
E
Controlled Descent Dorsal, Sternal, Frontal
F
Climbing Dorsal, Sternal
Available Harness Sizes
Figure 1 organizes harness models into groups based on features.
All harness models within the same group will include the same
features but will vary in sizing options. To determine the size of
your harness, refer to its product labels. An example label (A) is
shown below. Size codes are identied in the “Product Size Codes”
legend.
Product Size Codes
XS Extra Small
S Small
M Medium
L Large
XL Extra Large
2XL Extra Large (x2)
3XL Extra Large (x3)
XXX
A
Harness Capacity
The user of this full body harness must have a combined weight (including clothing, tools, etc.) meeting the requirements set
by the applicable standard or regulation. Always ensure the full body harness is adjusted to t the user properly.
CSA Up to 352 lb. (160 kg)
OSHA Up to 420 lb. (190 kg)

3M DBI SALA EXOFIT X300 Series Specifications

General

Brand	3M
Model	DBI SALA EXOFIT X300 Series
Category	Safety Equipment
Language	English
