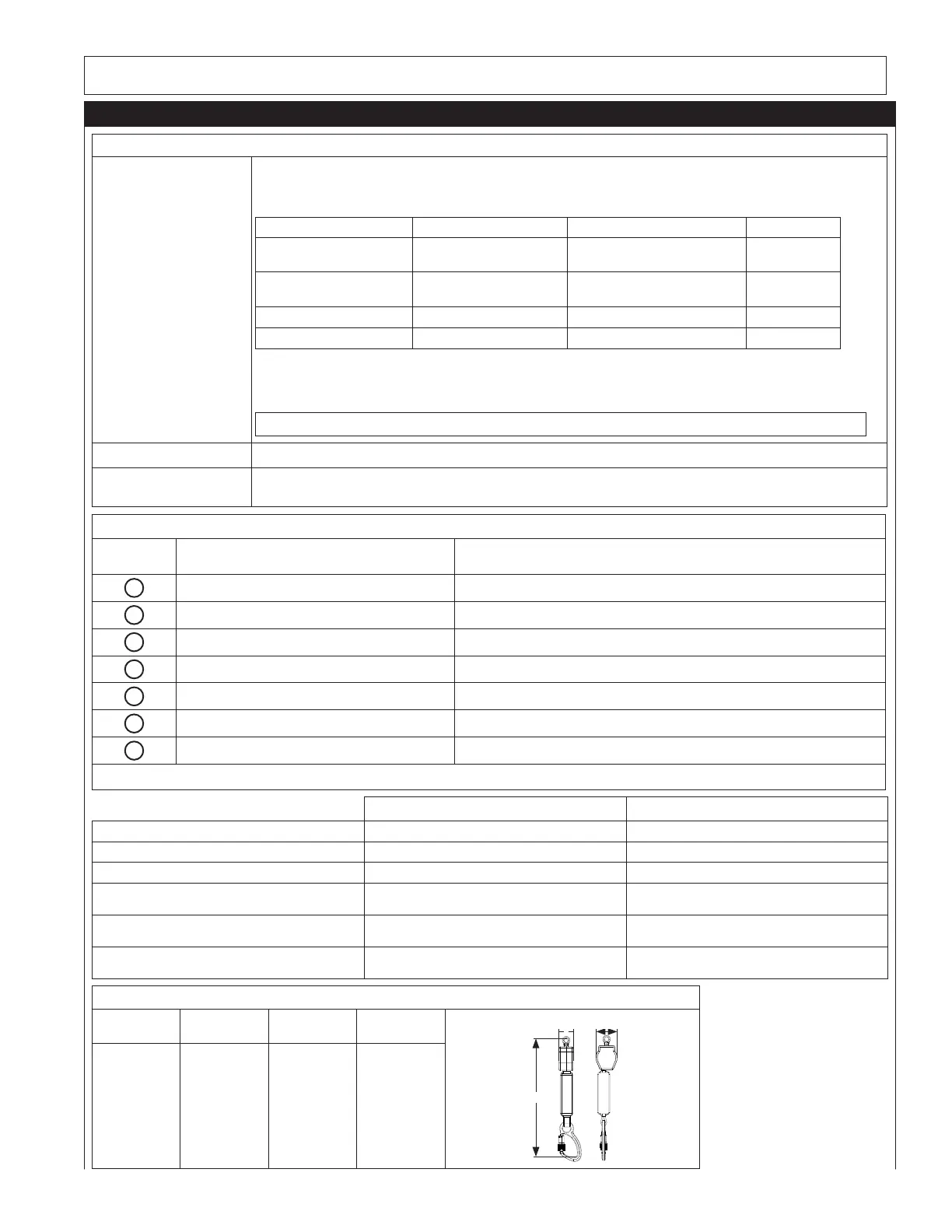

3M NANO-LOK User Manual

5
;
Before using this equipment, record the product identication information from the ID label in the ‘Inspection and
Maintenance Log’ at the back of this manual.
Table 1 – Product Specications
System Specications:
Anchorage: Anchorage structure requirements vary with the system application and whether it is a certied
anchorage or non-certied anchorage. The anchorage structure must sustain static loads applied in
the directions permitted by the anchorage connector.
System Application Certied Anchorage Non-Certied Anchorage Dened by
Fall Arrest 2 times maximum
arresting force
5,000 lbf (22.2 kN) OSHA, ANSI
Restraint 2 times foreseeable force
1,000 lbf (4.4 kN) per ANSI
5,000 lbf (22.2 kN) per OSHA
OSHA, ANSI
Work Positioning 2 times foreseeable force 3,000 lbf (13.3 kN) OSHA, ANSI
Rescue 5 times applied load 3,000 lbf (13.3 kN) ANSI
When more than one system is attached to an anchorage, the strengths stated above must be
multiplied by the number of systems attached to the anchorage. See ANSI/ASSP Z359.2 for more
information.
;
Anchorage must be approved by a Qualied Person.
Service Temperature: -40°F to 130°F (-40°C to 54.4°C)
Standards: Each product model is certied to, or conforms with, the applicable standards and regulations listed
within Figure 1. If none are specied, then all standards and regulations listed on the cover apply.
Component Specications:
Figure 2
Reference
Component Materials
A
Lifeline (see Lifeline Specications)
B
Housing Nylon
C
Bottom Connector (see Connector Specications)
D
Top Connector (see Connector Specications)
E
Swivel Eye Zinc-Plated Steel
F
Energy Absorber Rubber cover with Vectran lifeline
G
Alternate Swivel Zinc-Plated Steel
;
Internal Components: Internal SRD components are made from a combination of Stainless Steel, Steel, and Aluminum.
Performance - SRDs
ANSI/OSHA Models OSHA Models
Capacity Range: 130 lb. - 310 lb. (59 kg - 140 kg) 311 lb. - 420 lb. (141 - 191 kg)
Maximum Arresting Force: 1,800 lbf (8kN) 1,800 lbf (8kN)
Average Arresting Force: 1,125 lbf (5kN) 1,125 lbf (5kN)
Maximum Arrest Distance:
*Assumes the SRD is mounted directly above the user.
30 in. (0.76 m) 36 in. (0.91 m)
Minimum Fall Clearance Required:
*Assumes the SRD is mounted directly above the user.
4ft. (1.21 m) 4.5 ft. (1.37 m)
Maximum Free Fall:
*SRD must be mounted above user’s D-ring.
2 ft. (0.6 m) 2 ft. (0.6 m)
Dimensions:
Figure 1
Reference
D W R
W
R
D
Size A
2.13 in.
(5 cm)
3.11 in.
(8 cm)
22.5 in.
(57 cm)

3M NANO-LOK Specifications

General

Product Type	Self-Retracting Lifeline
Length	6 ft
Weight Capacity	310 lbs
Connector Type	Carabiner
Material	Polyester Web
Standards/Approvals	ANSI Z359.14
Width	1 inch
Snaphook Type	Steel
