3M NANO-LOK User Manual

6

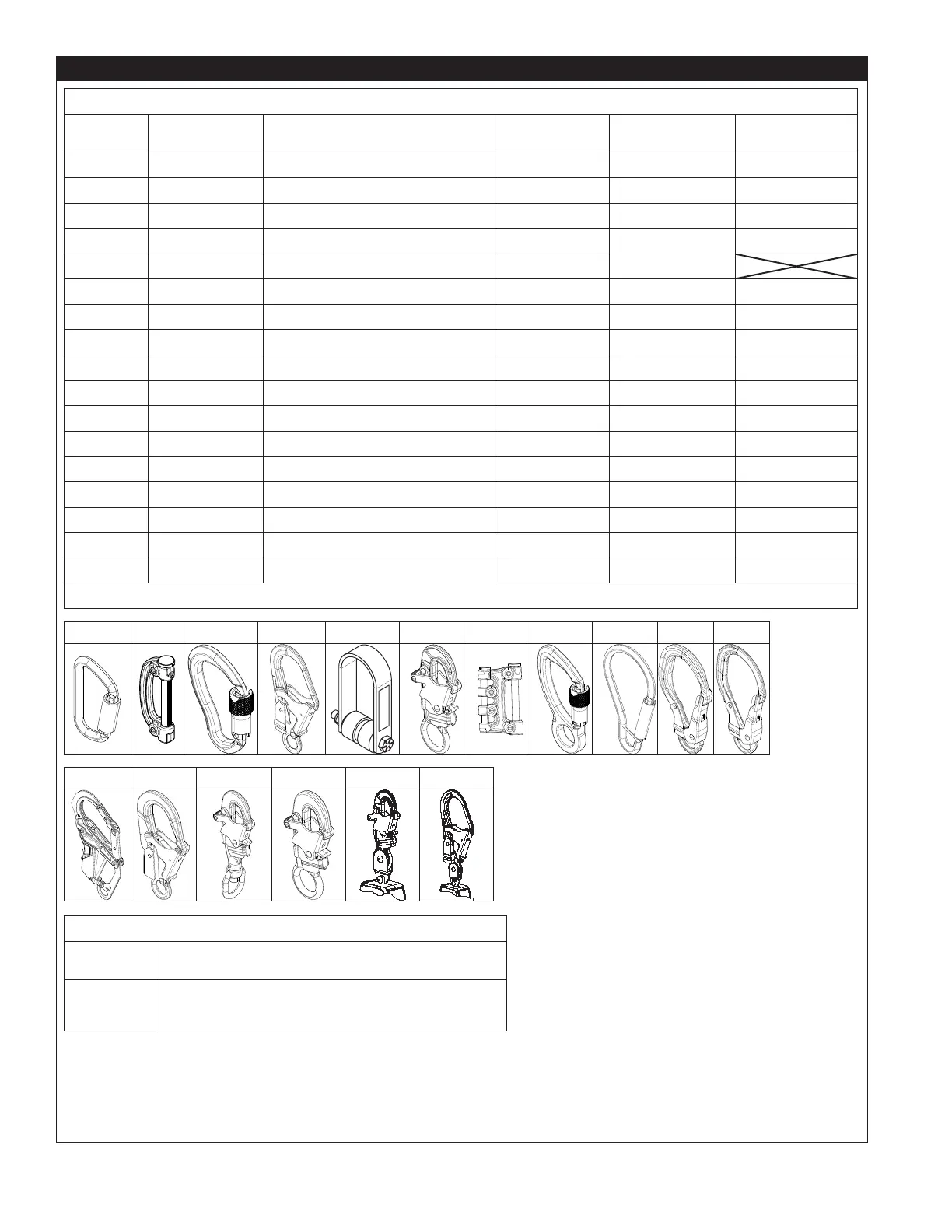

Table 1 – Product Specications
Connector Specications:
Figure 1
Reference
Model Number Description Material Gate Opening Gate Strength
C1 2000112 Carabiner Zinc-Plated Steel 0.69 in. (17 mm) 16 kN (3,600 lbf)
C3 3100197 Harness Interface Zinc-Plated Steel 2 in. (51 mm) 3,600 lbf (16 kN)
C4 2000025 Carabiner Aluminium 0.81 in. (20 mm) 3,600 lbf (16 kN)
C5 2109193 Rebar Hook Zinc-Plated Steel 2.5 in. (63 mm) 3,600 lbf (16 kN)
C6 3100247 Cab Mount Stainless Steel 1.61 in. (41 mm)
C7 9502116 Snap Hook Zinc-Plated Steel 0.75 in. (19 mm) 3,600 lbf (16 kN)
C8 3100196 Dual-Pin SRD Connector Aluminum, Steel 2 in. (51 mm) 3,600 lbf (16 kN)
C9 2000023 Carabiner Aluminum 2.5 in. (63 mm) 3,600 lbf (16 kN)
C10 2000114 Rebar Hook Zinc-Plated Steel 0.69 in. (18 mm) 3,600 lbf (16 kN)
C11 2000209 Rebar Hook Aluminum, Steel 2.5 in. (63 mm) 3,600 lbf (16 kN)
C12 2000210 Rebar Hook Zinc-Plated Steel 2.24 in. (57 mm) 3,600 lbf (16 kN)
C13 2000214 Swivel Snap Hook Aluminum, Steel 2.5 in. (63mm) 3,600 lbf (16 kN)
C14 9502058 Snap Hook Aluminum 1 in. (25 mm) 3,600 lbf (16 kN)
C15 9502195 Snap Hook Zinc-Plated Steel 0.75 in. (19 mm) 3,600 lbf (16 kN)
C16 9505254 Snap Hook Aluminum, Steel 0.75 in. (19 mm) 3,600 lbf (16 kN)
C17 9502116 Snap Hook + Alternate Swivel Zinc-Plated Steel 0.75 in. (19 mm) 3,600 lbf (16 kN)
C18 2109193 Rebar Hook + Alternate Swivel Zinc-Plated Steel 2.5 in. (63 mm) 3,600 lbf (16 kN)
;
Tensile Strength: The tensile strength of each of the connectors listed above is 22.2 kN (5,000 lbf).
C1 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12
C13 C14 C15 C16 C17 C18
Lifeline Specications:
Figure 1
Reference
Description
DP1
.781 in. width x .052 in. thick, Dyneema polyester with
polyester thread; minimum tensile strength 4,946 lbf (22kN)

3M NANO-LOK Specifications

General

Product Type	Self-Retracting Lifeline
Length	6 ft
Weight Capacity	310 lbs
Connector Type	Carabiner
Material	Polyester Web
Standards/Approvals	ANSI Z359.14
Width	1 inch
Snaphook Type	Steel
