Operator’s Guide

™

Super Close Projection System SCP716

ENGLISH

Menu Navigation

To display the on screen menus, press the MENU button on the remote control or I/O Module. Use the remote

control Up/Down ARROW buttons to select the desired menu (see table below), then pull the TRIGGER button

(bottom of remote control) to display it.

Use the remote control ARROW buttons within a submenu to select the various options displayed on the screen,

then pull the TRIGGER button to initiate that option or setting.

To exit an on-screen submenu, press the MENU button.

Main Menu

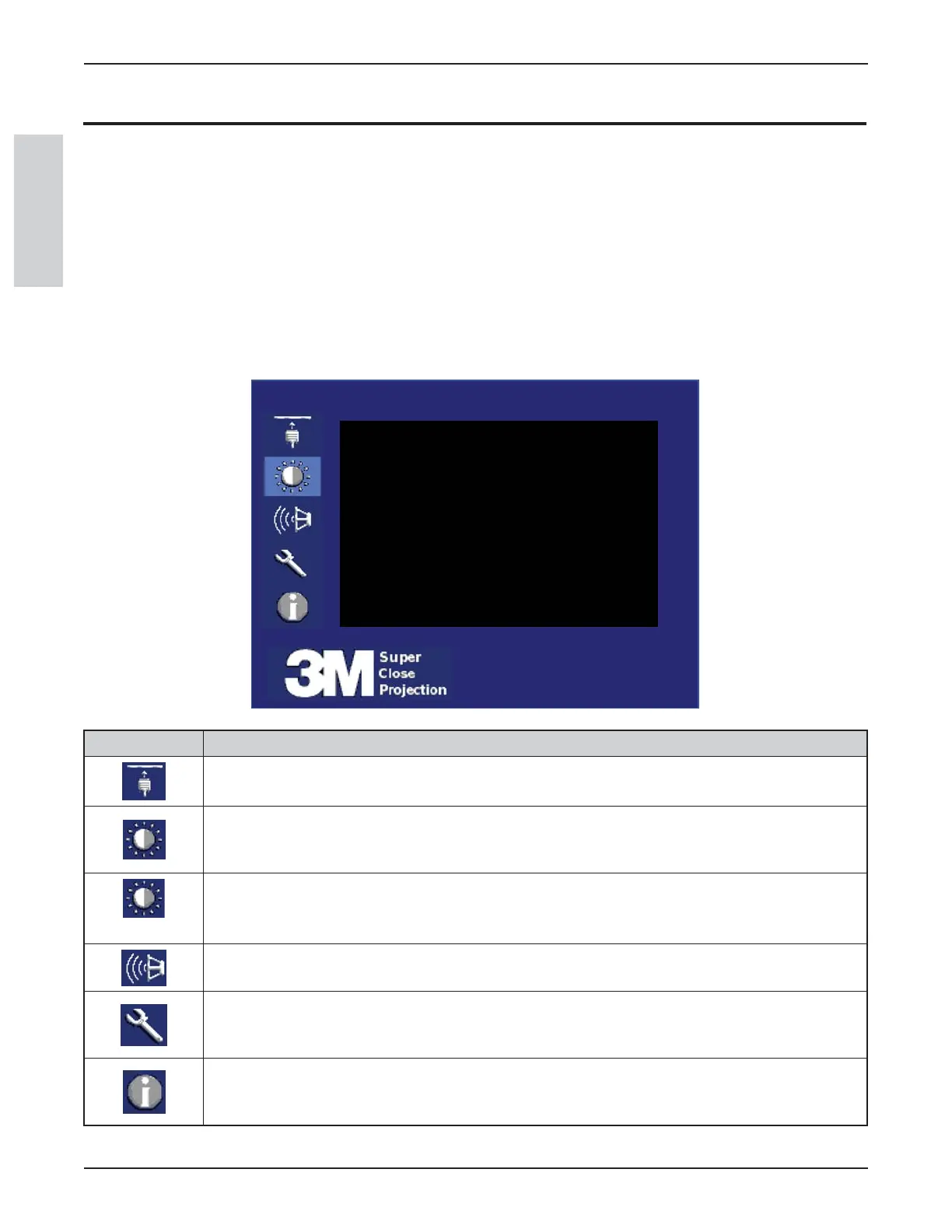

The main menu is the first system menu to display when the MENU button is pressed. Click on the menu icons

to display the desired submenu.

Main Menu

Menu Icon Menu Description

Input Menu – Select the desired computer or video input source.

Picture Menu – Adjust the following picture features: mode, brightness, contrast, color

intensity, tint, sharpness, video noise reduction, aspect ratio, and menu reset. Note: Displays

only when input source is connected.

Advanced

Advanced Picture Menu – Adjust the following settings for the detected signal source: over

scan, brightness/color, horizontal position, vertical position, frequency, phase, & menu reset.

Audio Menu – Adjust the following audio settings: volume, mute, audio input (stereo mini-1,

stereo mini-2, RCA), menu reset.

Setup Menu – Select or adjust the following settings: menu languages, auto shutoff timer,

keystone, lamp hours, lamp mode, fan mode, projection mode, factory reset, PIN code and

menu reset.

Information Menu – Display the current system information: input resolution, H/V

frequency, lamp hours, system hours, IP address/net mask/gateway for I/O module Ethernet

interface, user revision.
