Operator’s Guide
3M
™
Super Close Projection System SCP716
© 3M 2009. All Rights Reserved.
ENGLISH

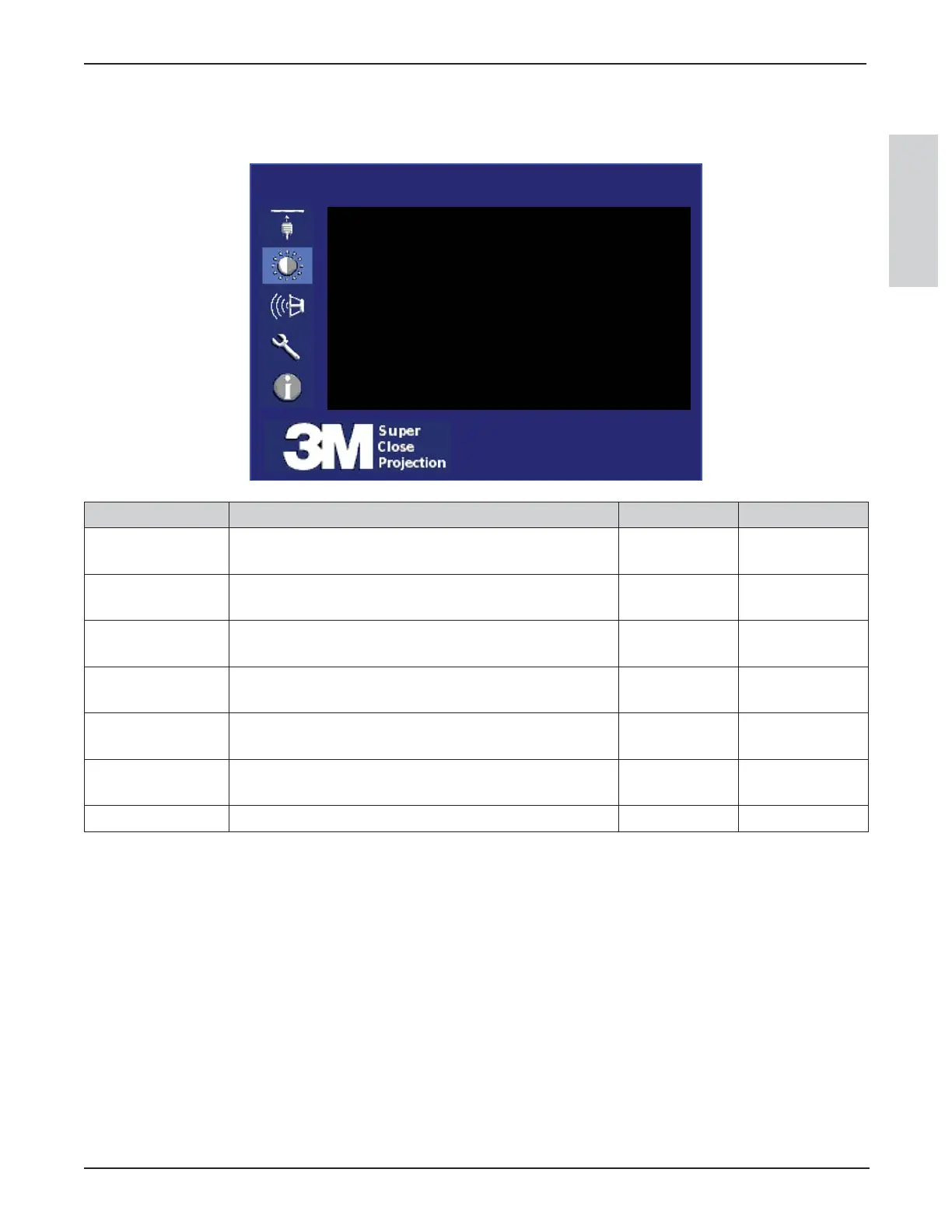

Advanced Picture Menu
The Picture Menu with the Advanced option selected, shown below, is used to adjust the projected image for
Computer and Component inputs only.
Picture Input Source: Computer 1
Over Scan 97 |···········z············|
Color / Brightness 10 |·······················z|
Horizontal Position 0 |···········z············|
Vertical Position 0 |···········z············|
Frequency 0 |···········z············|
Phase 0 |···········z············|
Reset X
Feature Description Range Default
Over Scan
Adjust cropping of image boundaries from 90th to
100th percentile (increments of 1 percent).
90–100
Video = 97
VGA = 100
Brightness / Color
Adjust the white peaking value of the DMD.
LOWESTWHITEPEAKINGVALUEHIGHESTVALUE
0–10
Computer = 10
Video = 3
Horizontal
Position
Adjust horizontal position of projected image.
/NLYFOR#OMPUTEROR#OMPUTERINPUTSOURCE
N/A 0
Vertical Position
Adjust vertical position of projected image.
/NLYFOR#OMPUTEROR#OMPUTERINPUTSOURCE
N/A 0
Frequency
Adjust the horizontal width of the projected image.
/NLYFOR#OMPUTEROR#OMPUTERINPUTSOURCE
-50–+50 0
Phase
Adjust clock phase to reduce image distortion.
/NLYFOR#OMPUTEROR#OMPUTERINPUTSOURCE
-15–+15 0
Reset Reset values in this menu only N/A N/A
