3 Connectors/Ports
USB
Sound Examiner SE-400 Series
Connectors/Ports
The Hardware connector ports are identified below. Note: the SE-400 IS models are equipped with USB
connector only.

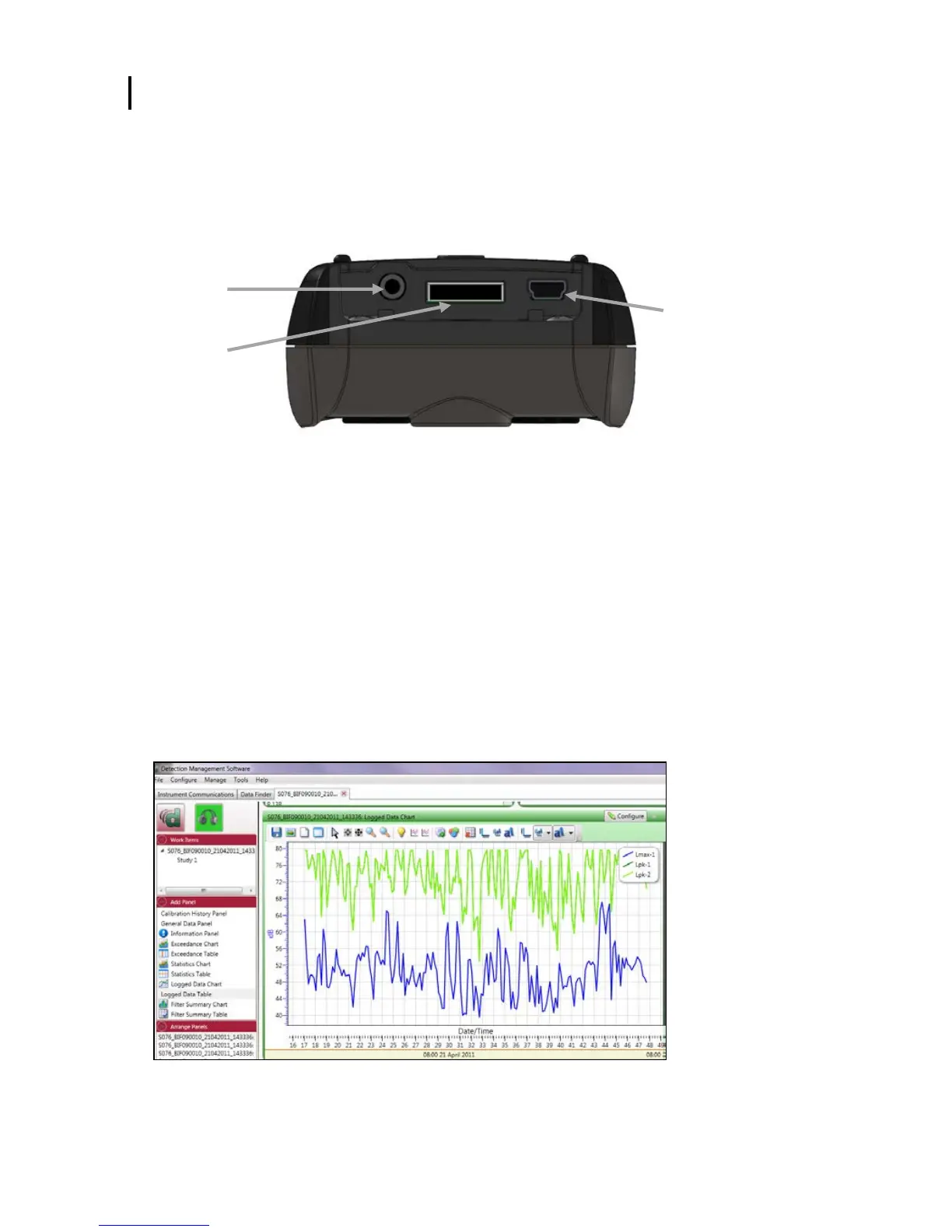

Figure 1-2: Connector and ports
USB
A USB cable is shipped with each Sound Examiner. One end fits the mini port in the instrument. The
other end fits a standard USB connector on a personal computer.
A USB connection to a computer allows files to be transferred, settings to be downloaded to the
instrument, and post-session analysis to be performed with the DMS software. It is also used to charge
the internal battery of the SE-400 Series.
3M
TM
Detection Management Software (DMS)
DMS is a software application from 3M that is used for a variety of Sound Examiner functions including
the ability to display and manipulate data after it is downloaded to the computer from the instrument.
Additionally, DMS is used to download measurement data for advanced graphing, charting, and reporting
analysis.
Figure 1-3: Acoustic data and DMS charting example
USB connector
for charging
AC/DC output
(SE-400 non-IS
model only.)
I/O and serial
printing connector
(SE-400 non-IS
model only.)
