Installation Instructions
www.3ware.com 31
5 If you have a 4-port or 8-port 9650SE:
a Hook the clips on the top of the battery module over the
slots on the top edge of the controller.

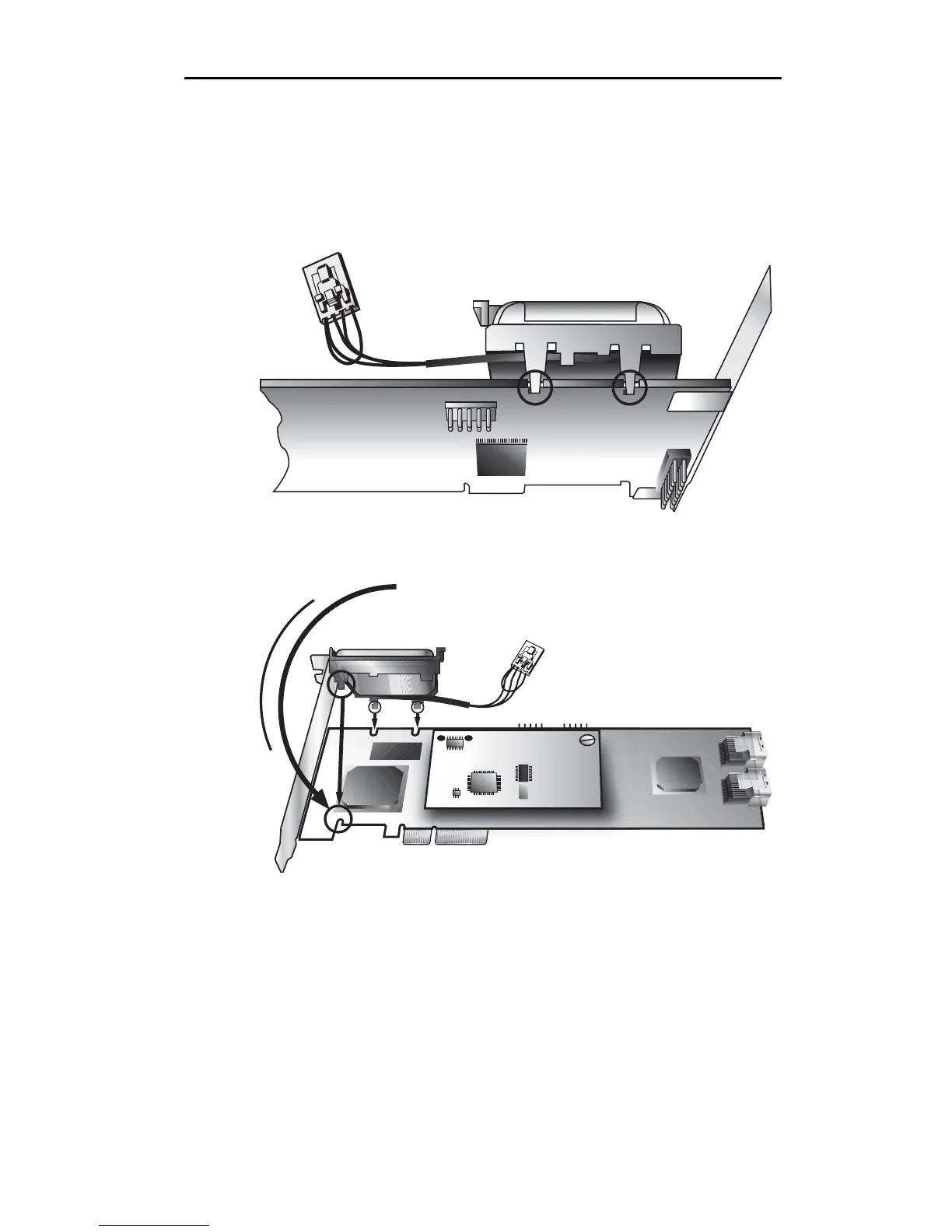

Figure 25. Clips on the battery module hook over slots on
the top edge of the half-height controller
Figure 26. Attaching the battery module to the half-height
controller
