9650SE RAID Controller Card Models
www.3ware.com 5

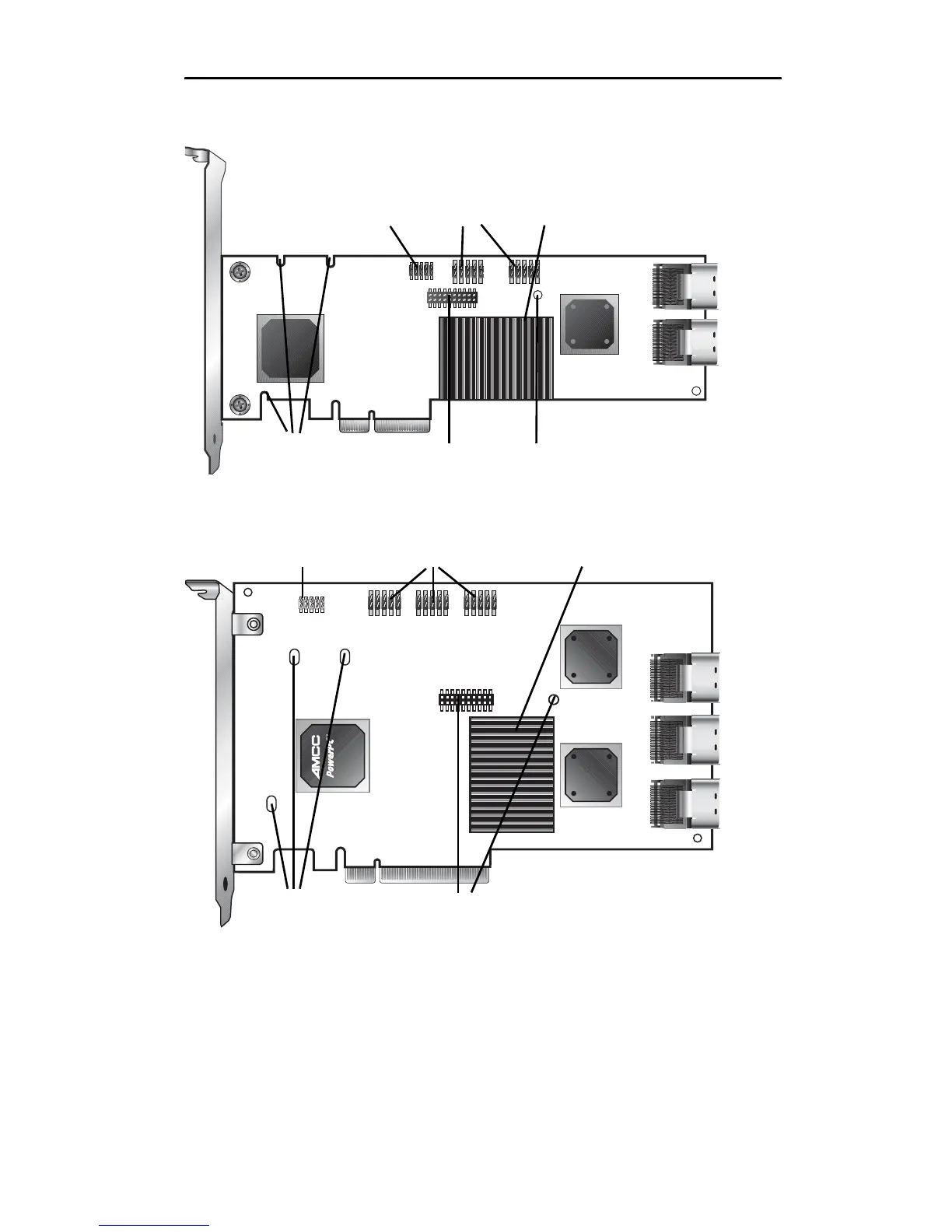

Figure 3. 8-Port 3ware 9650SE-8LPML Serial ATA RAID Controller
Figure 4. 12-Port 3ware 9650SE-12ML Serial ATA RAID Controller
Ports:
4 thru 7
0 thru 3
I
2
C connector
BBU connector and hole for post
Slots for battery
Heat Sink
LED
Connectors
Ports:
8 thru 11
4 thru 7
0 thru 3
I
2
C connector
Holes for
battery holder
BBU connector and hole for post
Heat sink
LED Connectors
