VISIX S-Series Network Camera | USER MANUAL v6.0
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
41

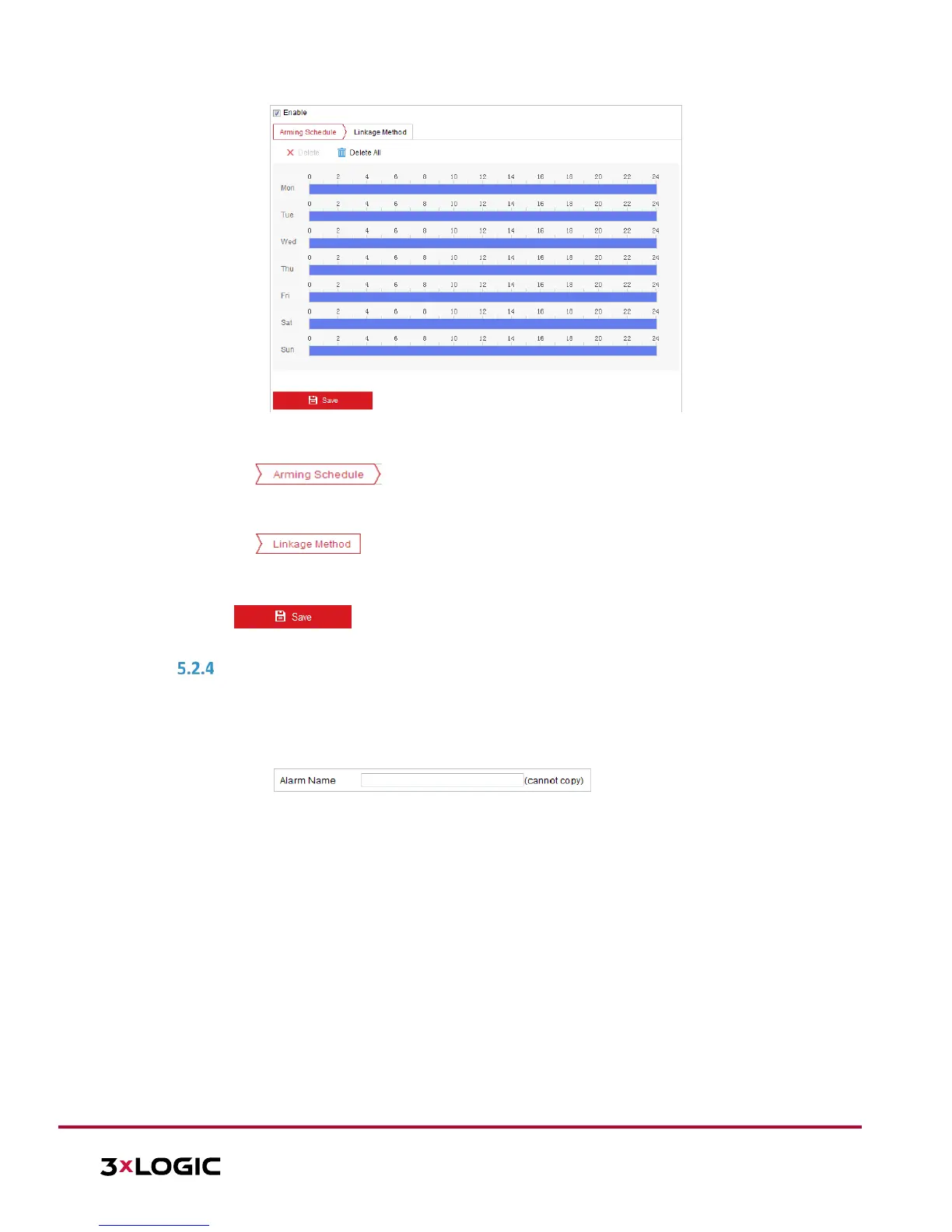

Figure 5-16 Video Loss
2. Toggle the Enable checkbox to enable video loss detection.
3. Click the tab to enter the arming schedule settings interface. The arming
schedule configuration process is identical to configuring an arming schedule for motion detection.
Refer to Section 5.2.1 Configuring Motion Detection for more details.
4. Click the tab to select the linkage method taken for the video loss alarm. Notify
surveillance center, send email and trigger alarm output are available. Refer to Section 5.2.1
Configuring Motion Detection for details on configuring linkage methods.
5. Click to save settings.
CONFIGURING ALARM INPUT
Steps:
1. Enter the Alarm Input settings interface: Configuration > Event > Basic Event > Alarm Input
2. Choose the Alarm Input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC
(Normally Closed).
3. Edit the name in to set a name for the alarm input
(optional).
