Purpose:
With this function on, the camera allows certain IP addresses whether to log in or not.
Steps:
1. Enter IP Address Filter interface: Configuration > System > Security > IP Address Filter

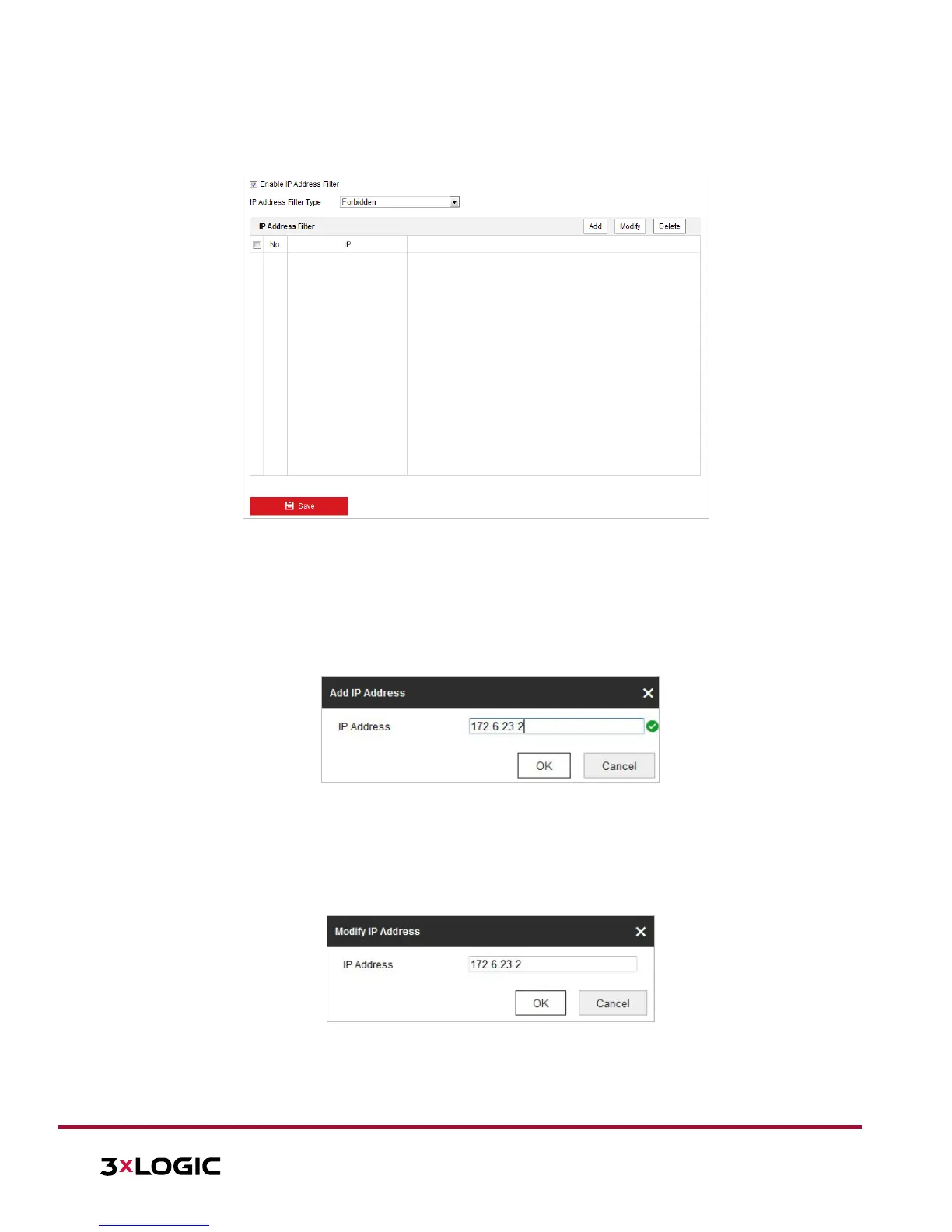

Figure 6-52 IP Address Filter
2. Toggle the checkbox of Enable IP Address Filter.
3. Select the type of IP Address Filter in the dropdown list: Available filters include Forbidden and Allowed.
4. Set the IP Address Filter list.
► Add an IP Address
Steps:
a. Click Add to add an IP.
b. Input the IP Address.
Figure 6-53 Add an IP
c. Click OK to finish adding.
► Modify an IP Address
Steps:
a. Left-click an IP address from filter list and click Modify.
b. Modify the IP address in the text filed.
Figure 6-54 Modify an IP
c. Click OK to finish modifying.
► Delete an IP Address
