IMPORTANT: DO NOT REMOVE THE WHIRLIGIG® TARGET GUARD COVER. THE ROTATING COMPONENTS
UNDER THE COVER COULD CAUSE SERIOUS INJURY.
8.3 ADB910V3AI /B - Adjustable Depth Bearing Temperature Sensor
a) Remove the existing grease nipple from the bearing sensor
b) Drill out and tap to 1/8” Rp (BSPT) x 6mm deep if needed
c) Slacken the olive nut and remove the sensor probe
d) Screw the sensor body into the new tapped hole in the bearing housing
e) Re-insert the temperature probe in to the olive nut adjusting the depth to suit the bearing depth
f) Tighten the olive nut using an appropriate spanner
g) The maximum recommended torque for the olive nut is 2N-m (18 lb-in). Please do not exceed.

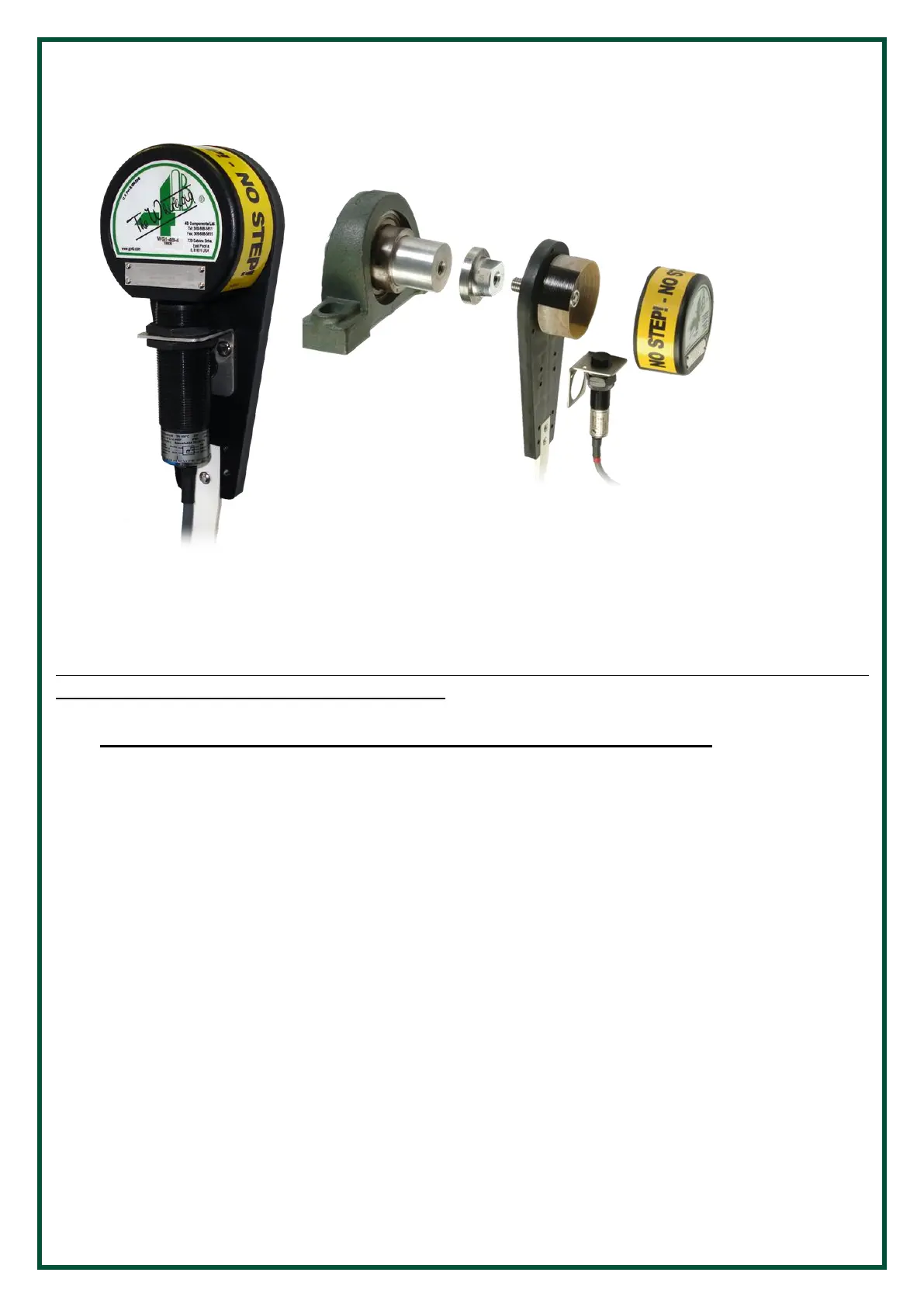

Figure 6 – P300 and Whirligig Mounting Bracket Mechanical Installation
