FUEL LEVEL SENSORS Wiring Schematics
A.E.B. C.N.G. LOW
FUEL SENSOR
GROUND
WHITE
GROUND
WHITE
LOW FUEL SENSOR
WHITE

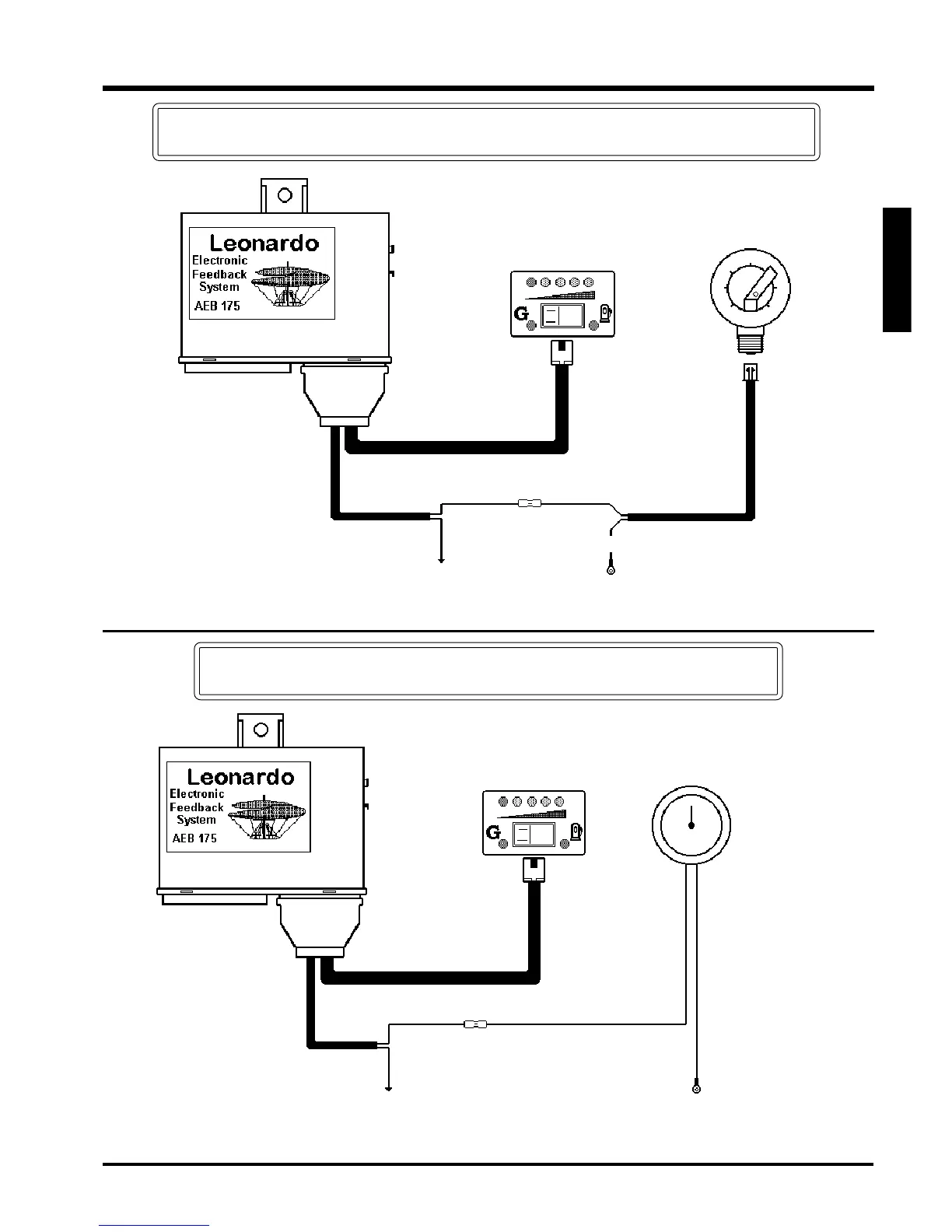

Wiring Schematic for A.E.B LOW C.N.G. Sensor
Wiring Schematic for LOW FUEL Sensor
BLACK
GREEN
DO NOT CONNECT
ISOLATE
GREEN
DO NOT CONNECT
ISOLATE
