Aaeon EMB-H81B - Inverter Backlight Control Mode; Intel ME Jumper Configuration

2-15
Chapter 2: Motherboard information

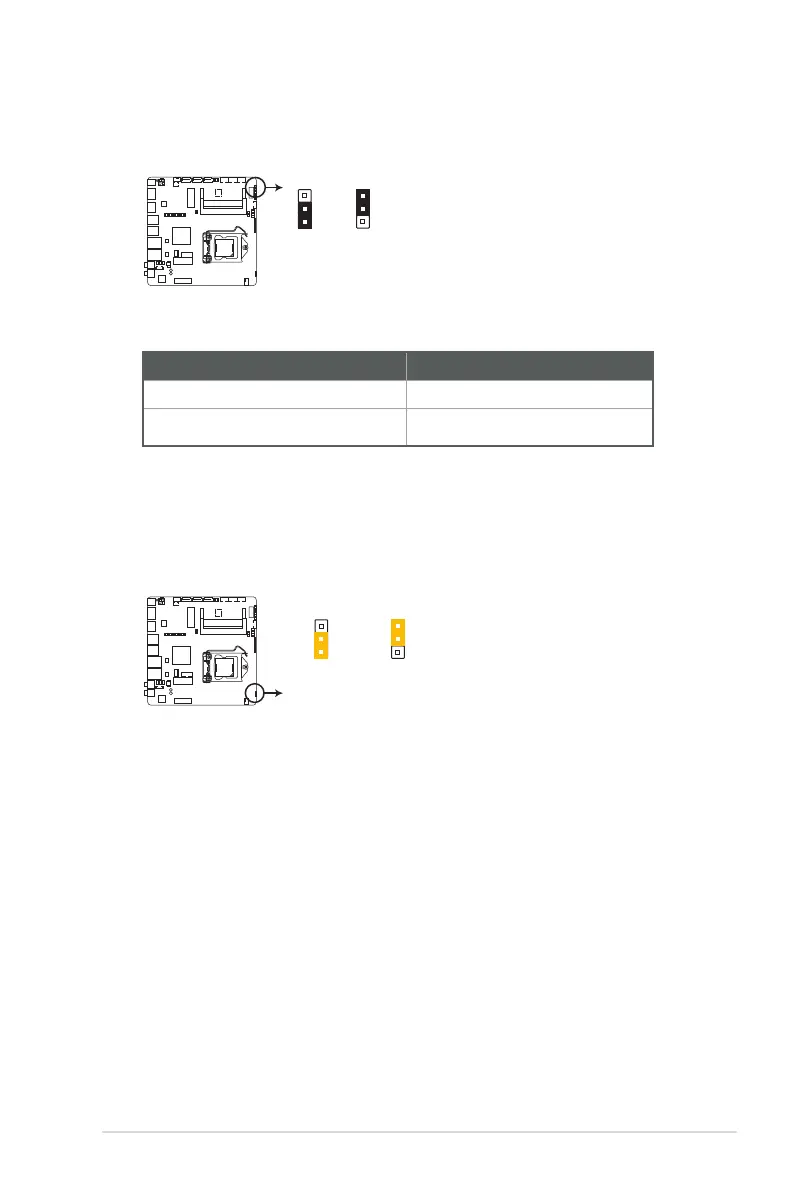

5. Inverter Backlight Control mode selection (3-pin LJ3)
Pins
DCVoltageControl(Default) 1-2
PWMControl 2-3
EMB-H81B Mode Selection for Back
Light Control of Inverter
PWM modeDC mode
(Default)
1 2
2 3
LJ3
6. Intel
®
ME Jumper (3-pin DIS_ME)
ThisjumperallowsyoutoforceIntel
®
ManagementEngine(ME)bootfrom
recoverymodewhenMEbecomecorrupted.
2
2 3
Enable ME
flash security
(Default)
Disable ME
flash security
DIS_ME
1
EMB-H81B Intel
®
ME Flash Security selection
