Aaeon GENE-6350 - Option ATX Power Connector (CN16)

SubCompact Board GENE-6350
Chapter 2 Quick Installation Guide 2-18
7 RTS 8 CTS
9 RI/+12V 10 N.C.

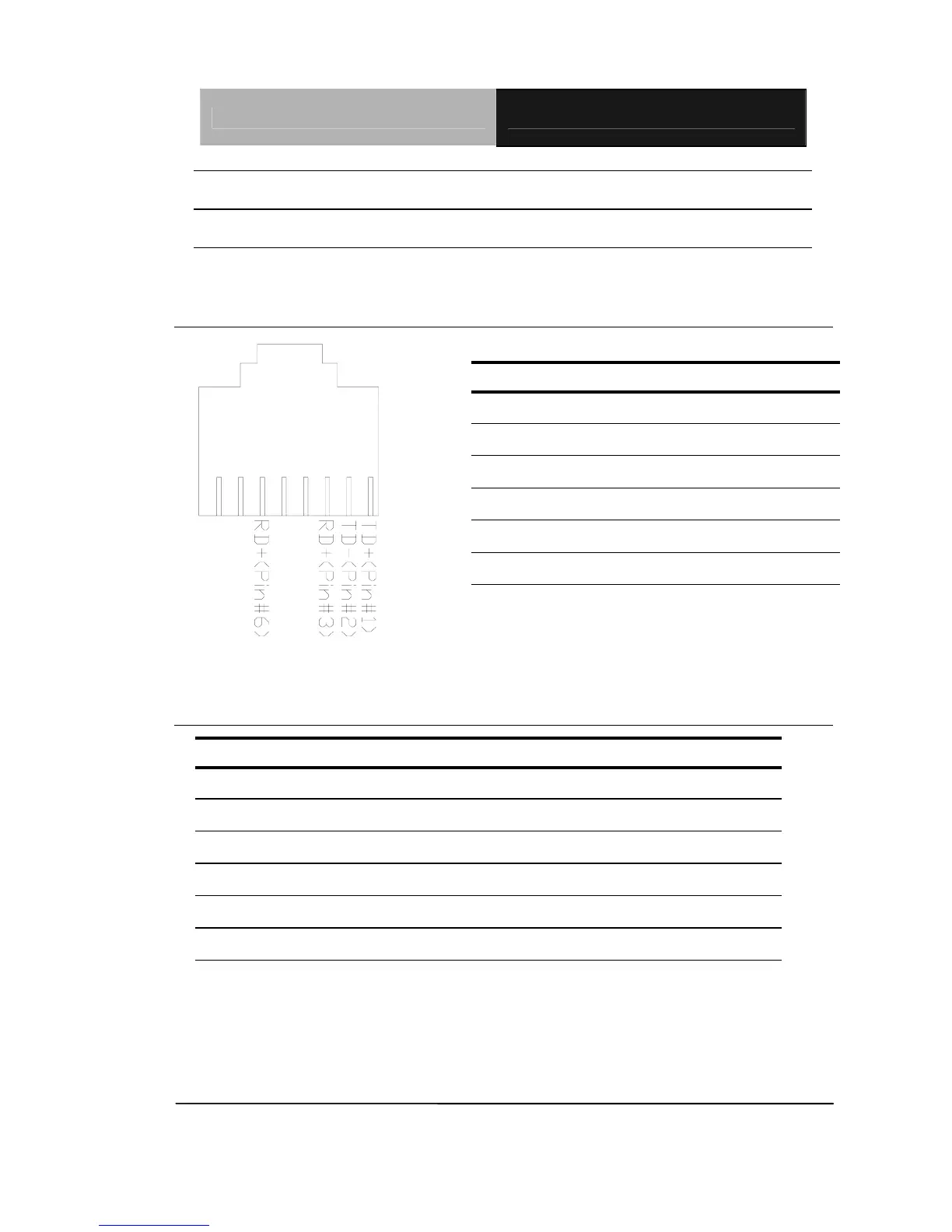

2.25 10/100 Base-TX Ethernet Connector (CN15)
Pin Signal Pin Signal
1TX+ 2T
X
-
3 TCT 4 N.C.
5 N.C. 6 RCT
7 RX+ 8 RX-
9 ACT_LED 10 +3.3V
11 LINK_LED 12 +3.3V
2.26 Option ATX Power Connector (CN16)
Pin Signal
1 N.C.
2 GND
3 N.C.
4 GND
5 PS-ON
6 +5VSB
