2. PARTS DESCRIPTION

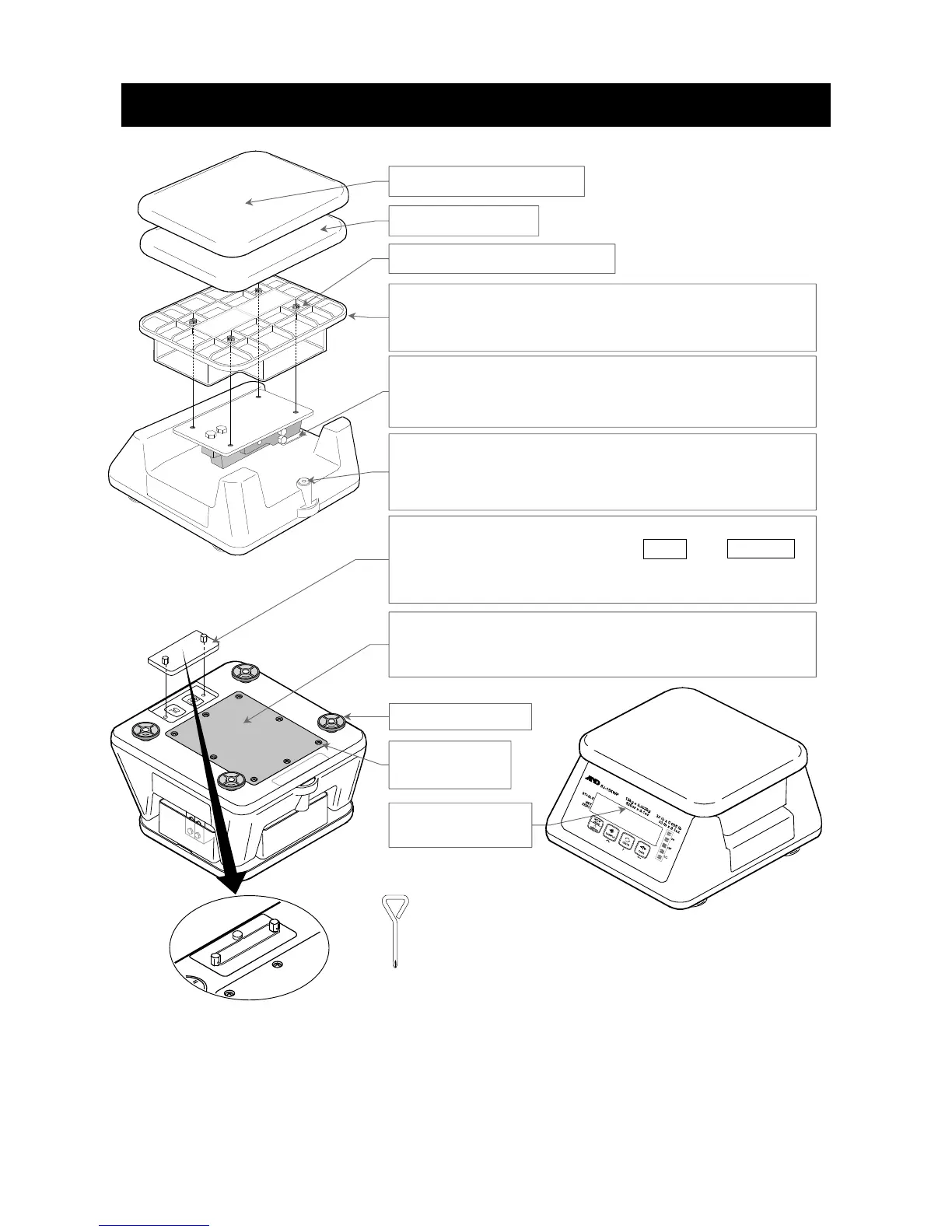

Sealing diagrams
Screwdriver
Use this screwdriver to open
or close the battery cover.
Weighing pan
Bubble Spirit level
Adjust the leveling feet so that the bubble is in the
center of circle.
Inner pan (ABS)
Pan support
The pan support can be removed at times such as
when the scale is cleaned.
Battery cove
this cover and secure by screws.
Weight sensor (Load cell)
Note: To maintain performance, do not touch
this sensor.
Screw to fix the pan support
Screw for
securing
Display and
switch
Leveling foot
Switch cover
When this cover is opened, the
CAL
and
RESET
switches inside are revealed. Keep the cover closed
to maintain waterproof performance.
Weighing pan (SUS304)
