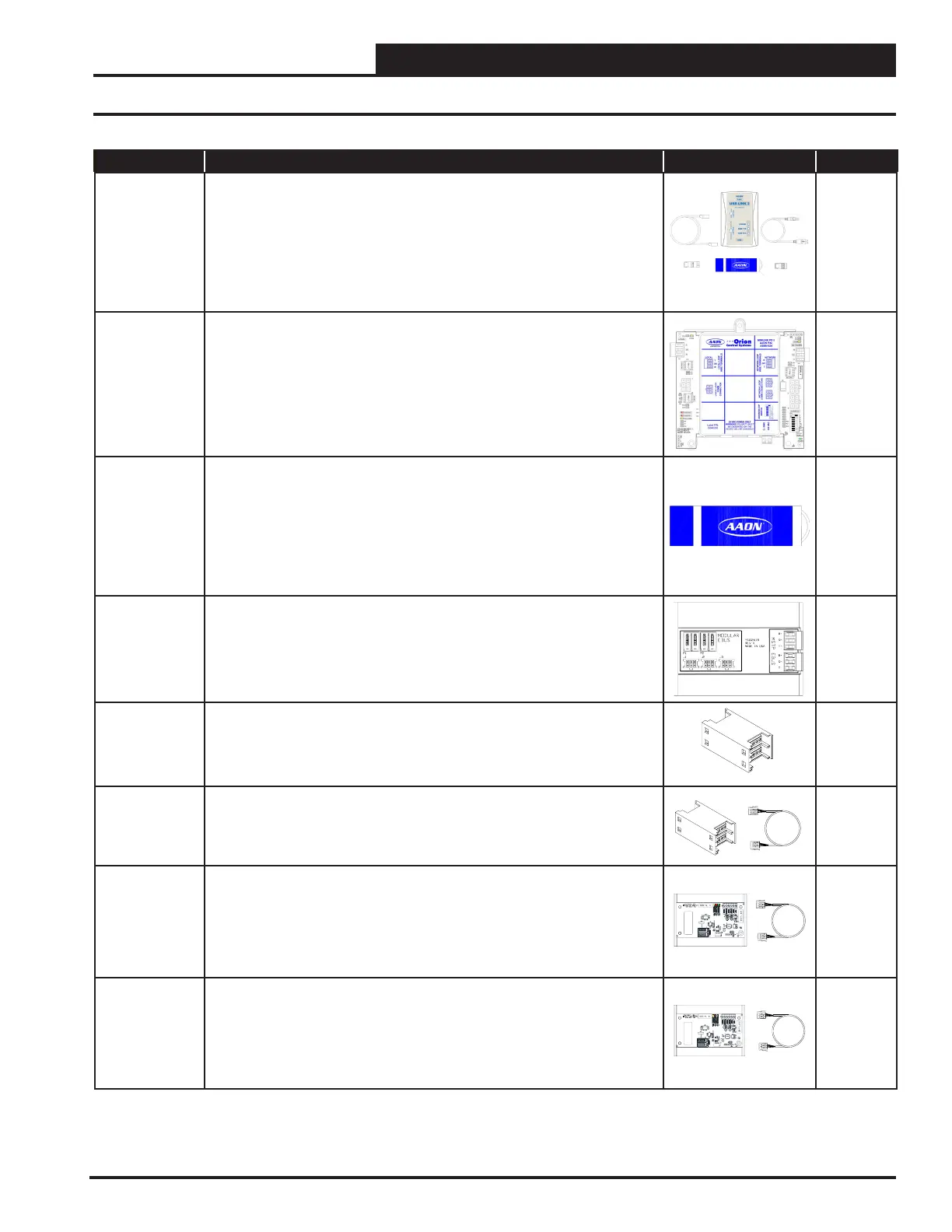

VCCX2 Controller Technical Guide
PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
ASM02244
USB-Link 2 Kit
The USB-Link 2 is a pocket-sized communications interface used to connect
a laptop computer to your controls system for programming and monitoring
purposes, utilizing a modular cable to allow connection to the service port
connector on the controllers and a USB cable to connect to a laptop computer.
Includes: USB-Link 2 for multiple or single loop systems, USB cable, modular
connection cable, two mini-DIN to terminal adapters, and Prism 2 software.
See the
USB-Link 2
Technical
Guide
ASM01626
MiniLink PD 5
Used with all Orion controllers to provide network communications,
zone voting, alarming, and tenant logging capabilities. A MiniLink Polling Device
is required on each loop of a Networked system. Includes: MiniLink Polling
Device 5.
See the
Orion
MiniLink
PD 5
Technical
Guide
ASM02533
Prism 2 Front-End Computer Software
Prism 2 provides standard, easy to understand status screens for each type of
VCCX2 equipment installed. Prism 2 software has provisions for custom screens
which allow oor plans, equipment photos, or user-dened summary screens
to be implemented to meet their own individual needs. All controlling setpoints,
trend logs, and alarm conditions are accessed in the Prism environment. Prism
can be congured for direct on-site installation, remote modem connection, or
TCP/IP Internet connection to several installations.
Pages
64 & 92
ASM01878
E-BUS Adapter Board
The E-BUS Adapter Board is used for connecting the EBTRON
®
, GreenTrol
TM
, or
Paragon Airow Measurement Digital Transmitter to the VCCX2 Control System.
The E-BUS Adapter Board connects to the VCCX2 Controller with an EBC
E-BUS cable. Cable supplied separately.
Page 50
G033970
E-BUS Adapter Hub
The E-BUS Adapter Hub is used for connecting E-BUS devices and Controllers
together with EBC E-BUS cables of varying lengths. Includes: E-BUS Adapter
Hub.
Pages
36 & 37
ASM01635
E-BUS Adapter Hub with 1.5 Foot EBC E-BUS Cable
The E-BUS Adapter Hub is used for connecting E-BUS devices and Controllers
together with EBC E-BUS cables of varying lengths. Includes: E-BUS Adapter
Hub and 1.5 foot EBC E-BUS cable.
Pages
36 & 37
ASM01696
E-BUS Space Temperature and Humidity Sensor
Emulator Board with 1.5 Foot EBC E-BUS Cable
The E-BUS Space Temperature and Humidity Sensor Emulator Board allows the
use of 3rd party analog space temperature and humidity sensors to emulate the
AAON E-BUS combination Space Temperature and Humidity Sensor. Includes:
E-BUS Sensor Emulator Board and 1.5 foot EBC E-BUS cable.
SENSOR EMULATION BOARD
E-BUS RETURN AIR TEMP/HUMIDITY
OE365-04-EBSE
N/A
ASM01621
E-BUS Return Air Temperature and Humidity Sensor
Emulator Board with 1.5 Foot EBC E-BUS Cable
The E-BUS Return Air Temperature and Humidity Sensor Emulator Board allows
the use of 3rd party analog return air temperature and humidity sensors to
emulate the AAON E-BUS combination Return Air Temperature and Humidity
Sensor. Includes: E-BUS Sensor Emulator Board and 1.5 foot EBC E-BUS cable.
E-BUS SPACE TEMP/HUMIDITY
SENSOR EMULATION BOARD
OE365-03-EBSE
N/A
OVERVIEW
Parts and Descriptions
